Ceramic Shell Silicon Chip Discrete Device Welding Diode Zp 10500A 400V

1 / 5

Ceramic Shell Silicon Chip Discrete Device Welding Diode Zp 10500A 400V

Customization:	Available
Cooling Way:	Water Cooling
Control:	Semi-Automatic

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Zp 10500A 400V

Style

Hanging

Welding Way

Spot Welding

Type

Three-Phase Secondary Rectification Welder

Delivery

3 Days

Transport Package

Carton Box

Specification

400*300*200

HS Code

8541300000

Production Capacity

150000 PCS/Year

📍 Product Description

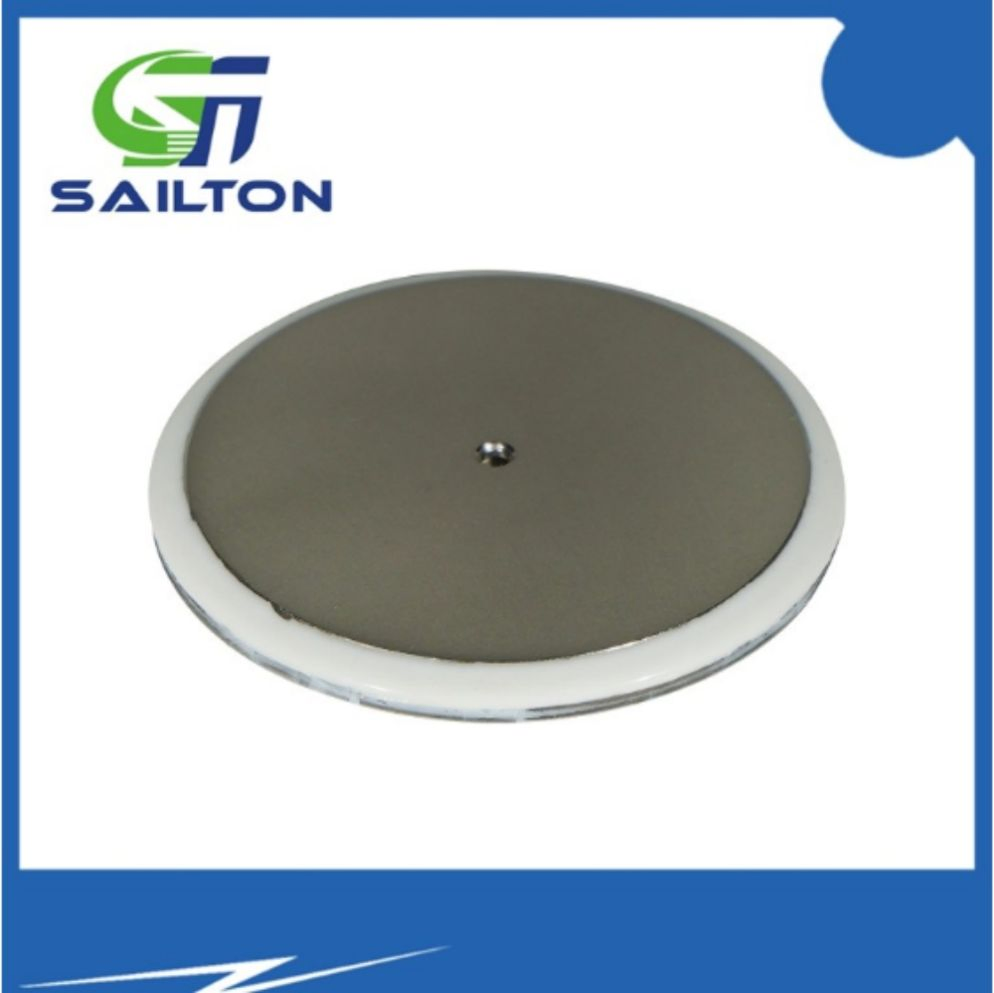

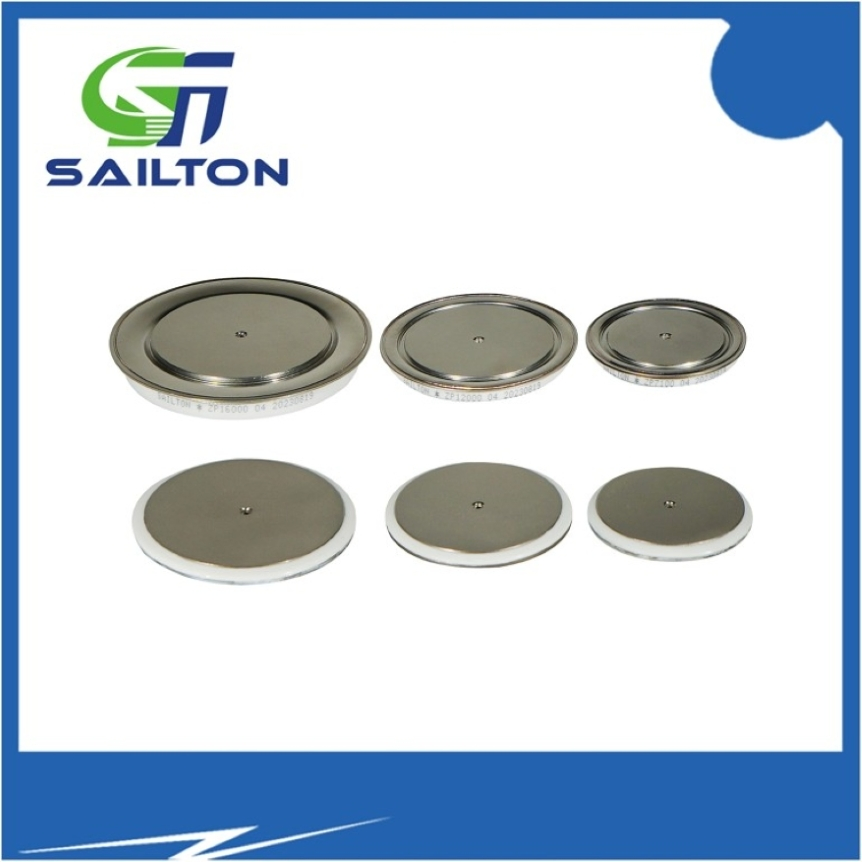

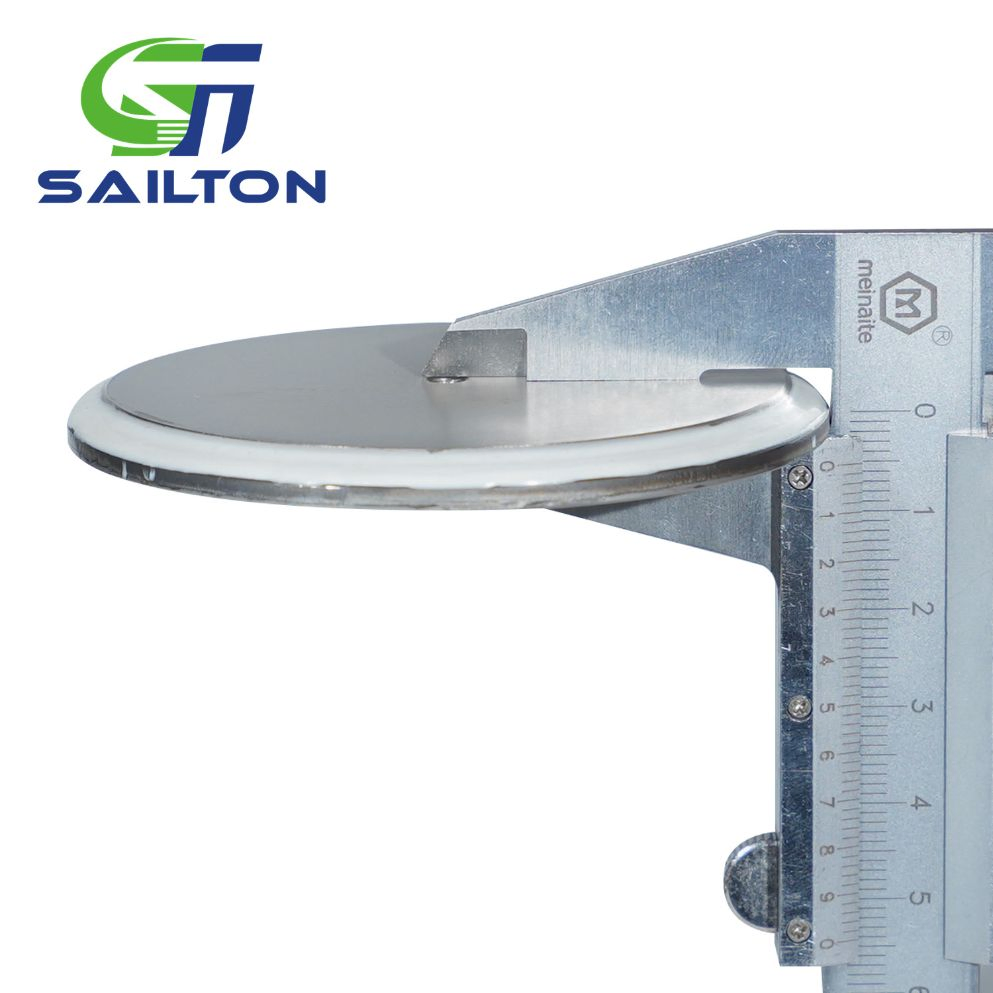

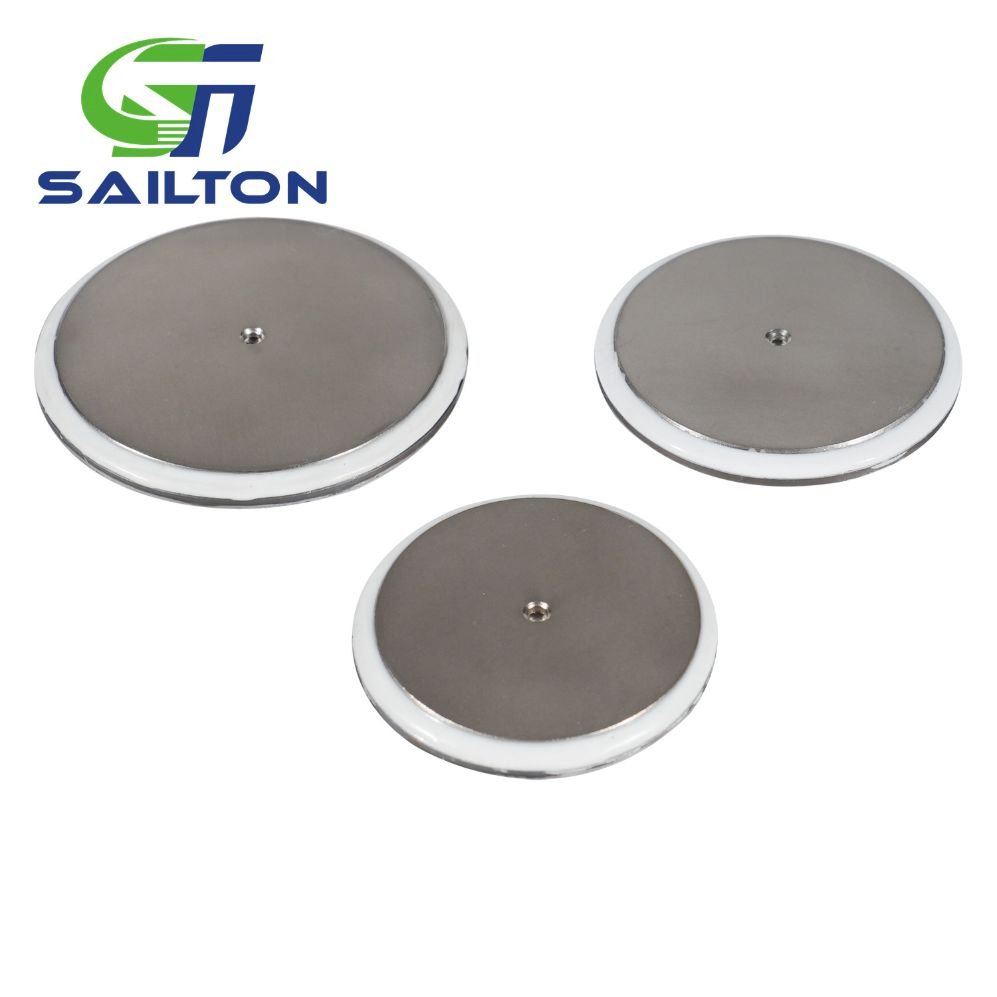

Ceramic Shell Silicon Chip Discrete Device Welding Diode Zp 10500A 400V

⭐ Our Advantages

✔ Designed for medium frequency welding equipment

✔ High reliability in the welding machine

✔ Very low on-state voltage

✔ Very low thermal resistance

✔ Up to 2000HZ frequency support

✔ High current capacity up to 18000A

Applications: For all kinds of intermediate frequency, power frequency resistance welding machines, such as automobile welding clamps, seam welding machines, and mesh welding machines.

⚙ Product Parameters

Housing Type

Part No.	I_F(AV) (A)	V_RRM (V)	I_FSM (KA)	I²t (10³)	V_TO (V)	r_T (mΩ)	T_VJM (ºC)	R_thJC	R_thCH	F (KN)	Outline
ZP4000/02-06	5000	200-600	45	10	0.80	0.030	170	0.010	0.005	20-25	D1
ZP7100/02-06	7100	200-600	55	15	0.75	0.025	170	0.010	0.005	20-25	D1
ZP12000/02-06	11000	200-600	85	36	0.75	0.020	170	0.006	0.003	35-40	D2
ZP16000/02-06	16000	200-600	120	72	0.80	0.019	190	0.004	0.002	50-60	D3

Housingless Type

Part No.	I_F(AV) (A)	V_RRM (V)	I_FSM (KA)	I²t (10³)	V_TO (V)	r_T (mΩ)	T_VJM (ºC)	R_thJC	R_thCH	F (KN)	Outline
ZP10500/02-06	10500	200-600	70	25	0.80	0.03	170	0.0050	0.0026	30-50	D18
ZP13500/02-06	13500	200-600	85	36	0.75	0.02	170	0.0039	0.0025	35-70	D19
ZP18000/02-06	18000	200-600	120	72	0.80	0.02	190	0.0035	0.002	70-80	D20

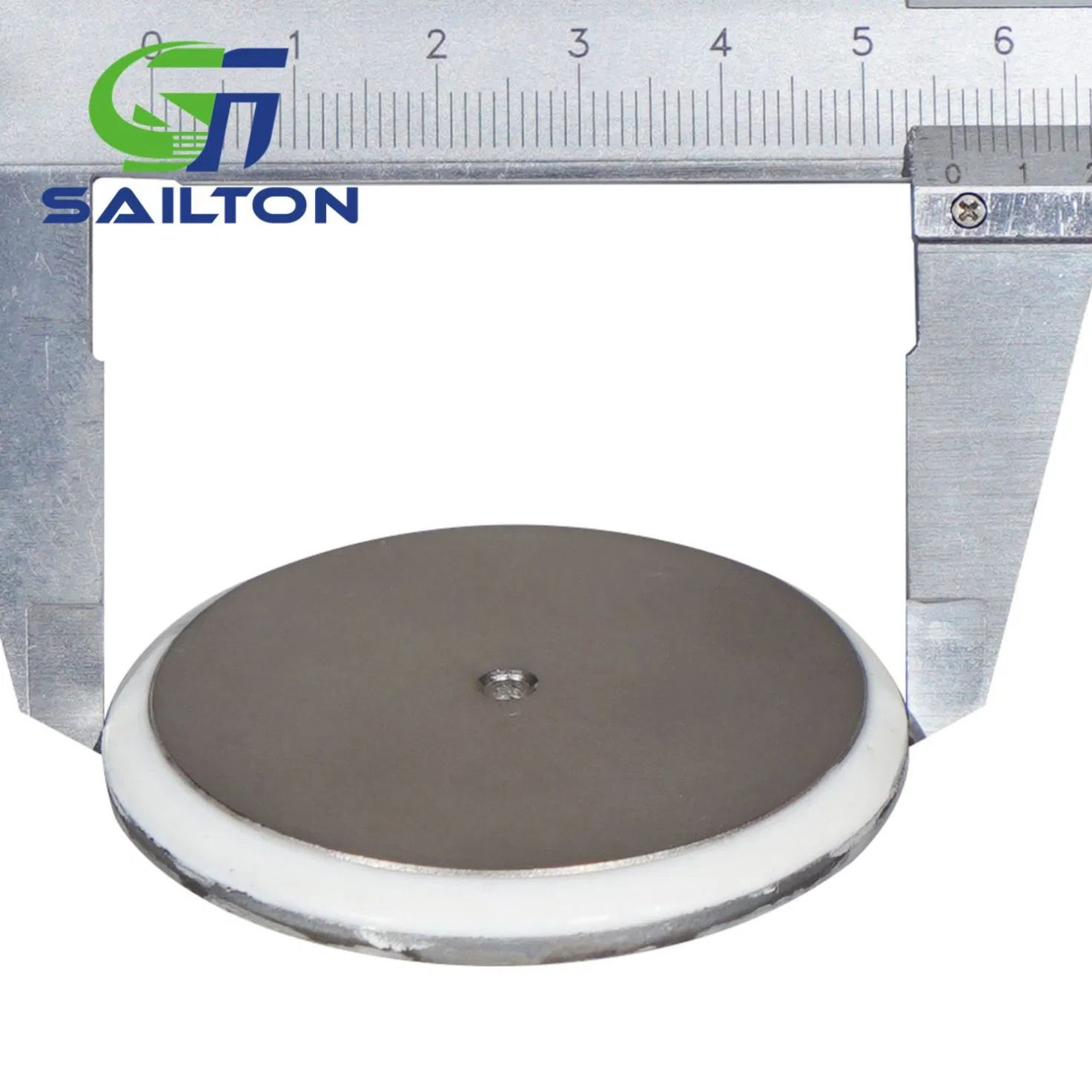

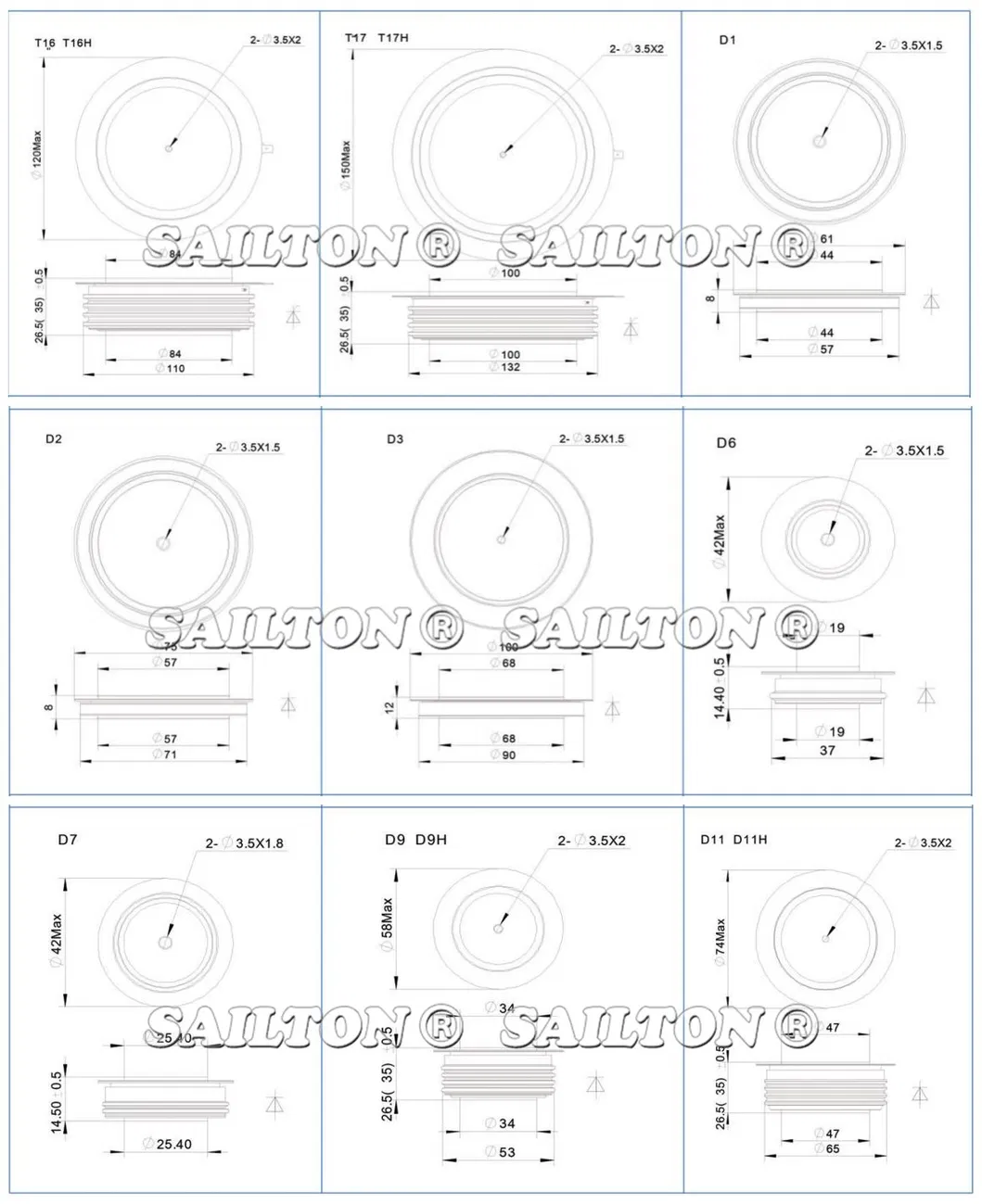

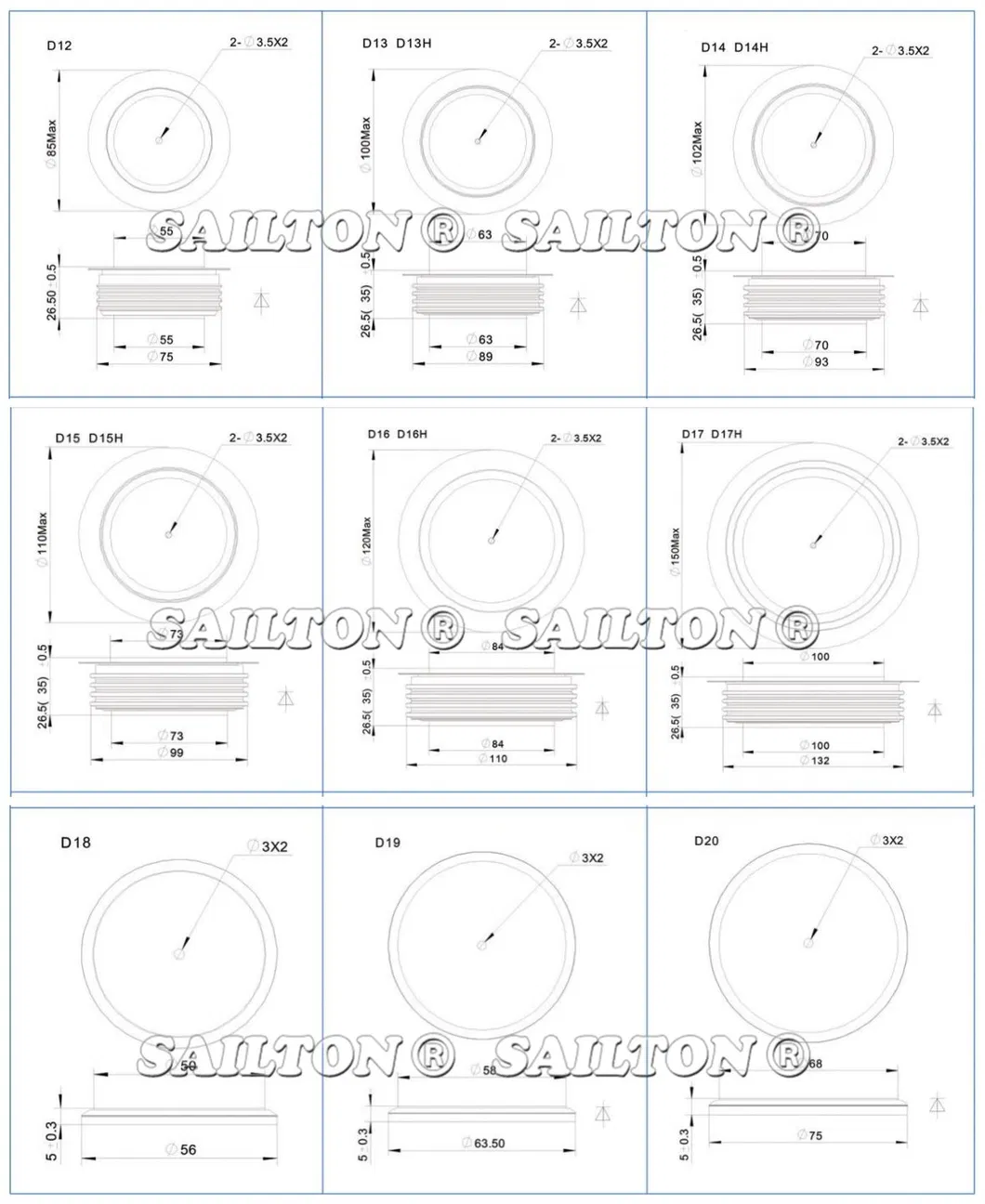

📦 Packaging & Outlines

📜 CE Certification

🔧 Matched Items & Assemblies

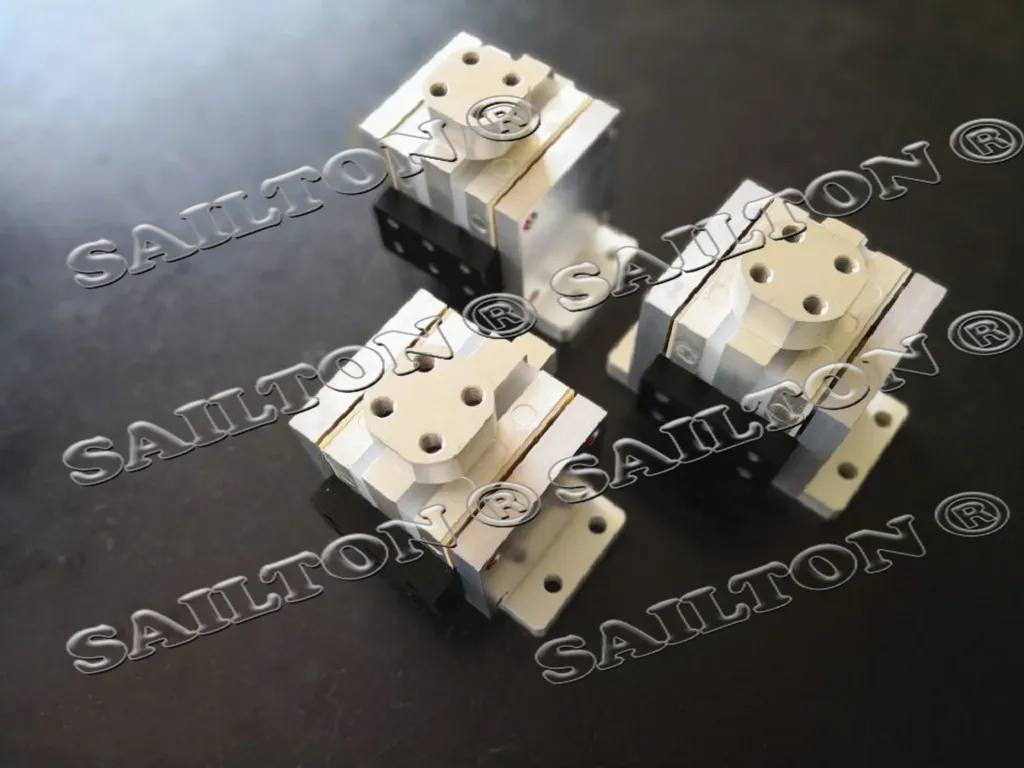

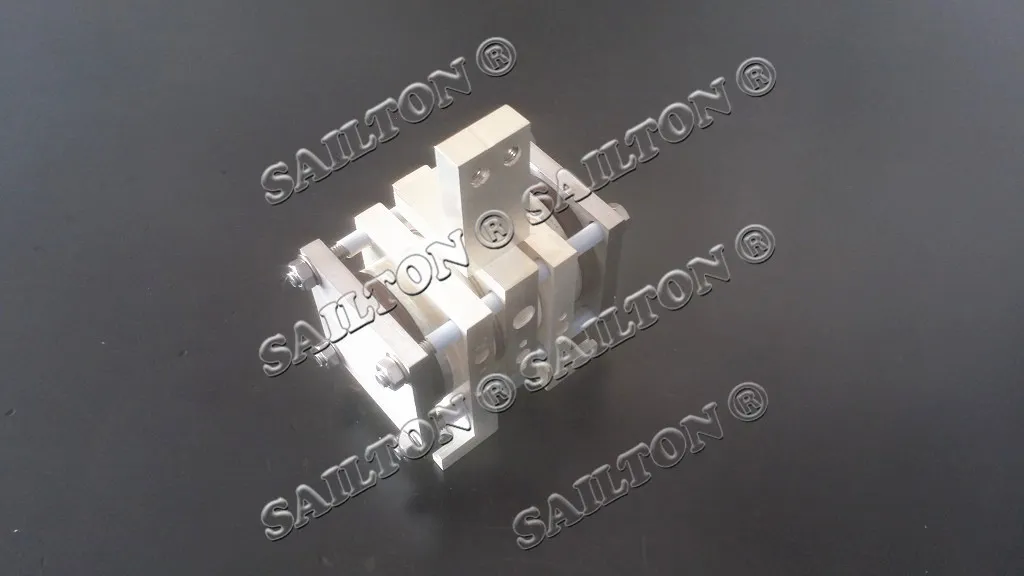

Welding Diode Assembly Features: High reliability, super large current, low on-state voltage drop, minimum thermal resistance. Supports medium and high frequency with air or water cooling options.

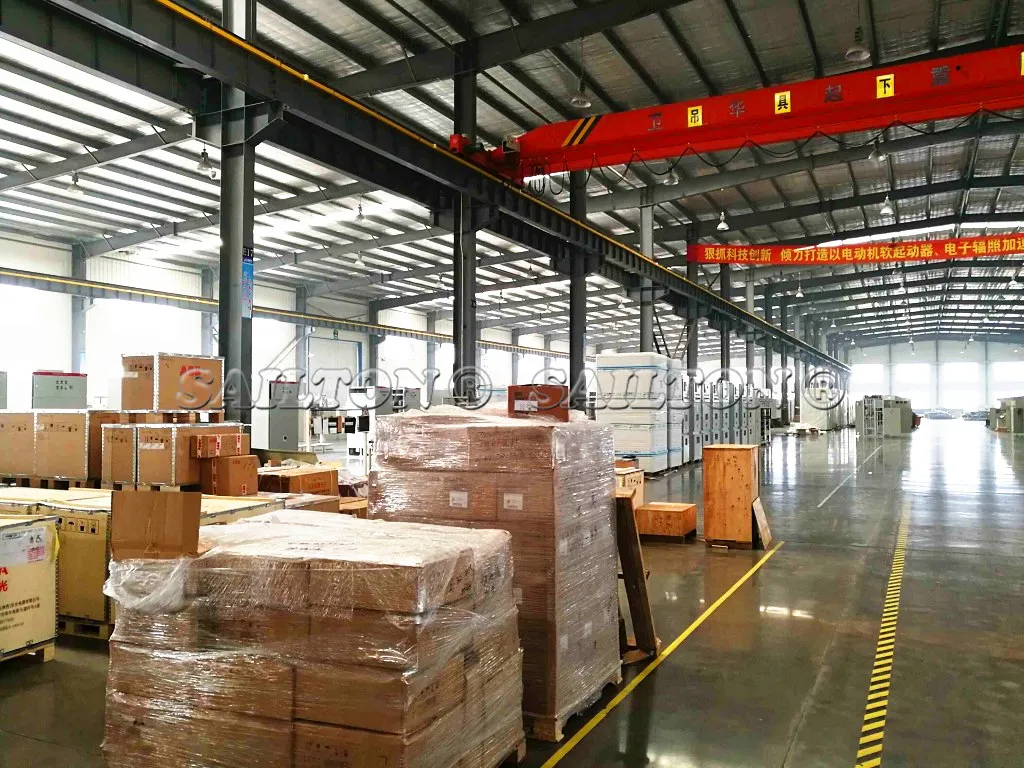

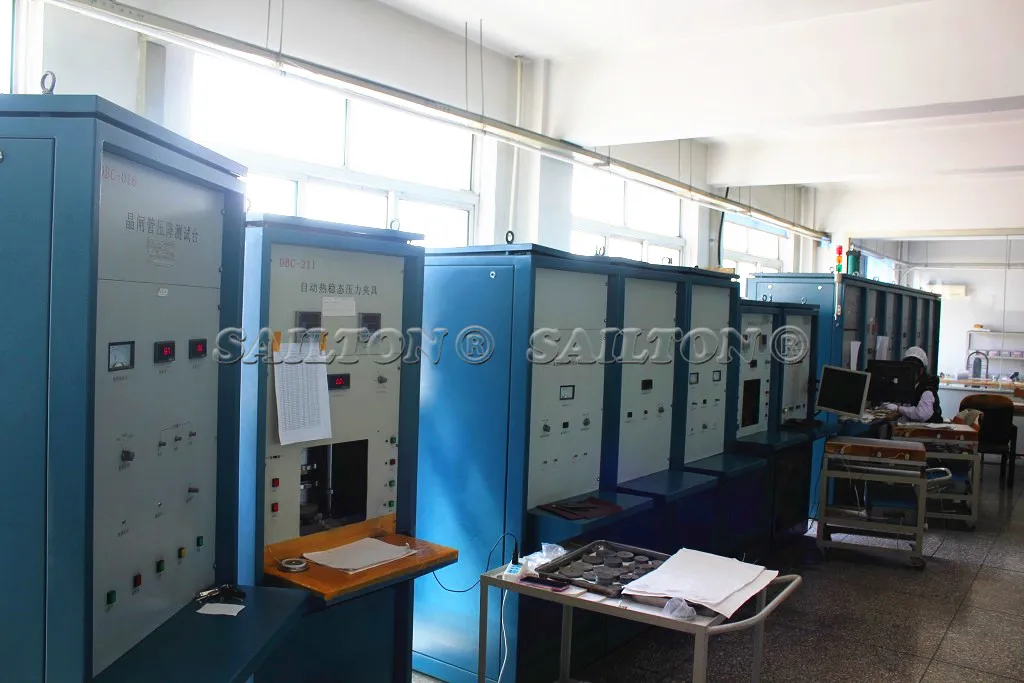

🏭 Production Facility

❓ Frequently Asked Questions

What is the primary application of these welding diodes?

They are designed for medium frequency and power frequency resistance welding machines, commonly used in automobile welding clamps and seam welding equipment.

What is the maximum current capacity available?

Our welding diodes can handle high currents up to 18,000A, with various models starting from 4,000A.

Are these diodes suitable for high-frequency operations?

Yes, they are designed to operate effectively at frequencies up to 2000Hz.

What are the main technical advantages of the ZP 10500A model?

Key advantages include very low on-state voltage, minimal thermal resistance, and high reliability for industrial welding environments.

What cooling methods are supported for the diode assemblies?

The assemblies support both air cooling and water cooling systems depending on your specific application requirements.

Do these products meet international standards?

Yes, the products are CE certified, ensuring they meet essential health and safety requirements.

Product Detail

Ceramic Shell Silicon Chip Discrete Device Welding Diode Zp 10500A 400V

Product Description

Ceramic Shell Silicon Chip Discrete Device Welding Diode Zp 10500A 400V

Housing Type

Housingless Type
