CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16
CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16
CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16
CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16
CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16
1 / 5
CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16
CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16
CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16
CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16
CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16

CD4060BM96 Counter ICs Divider Single 14Bit Binary UP SOIC-16

Customization: Available
Conductive Type: Unipolar Integrated Circuit
Integration: LSI
Send Inquiry

Product Description

📊 Basic Information
Model NO.
CD4060BM96
Technics
Thick Film IC
MFG.
TI
D/C
17+
Package
SOIC-16
Quality
Genuine New Original
Shape
SMD
Transport Package
Box
Specification
RAW MATERIAL: SILICON
Origin
China
HS Code
8542390000
Capacity
1,000,000 PCS
🔍 Product Description

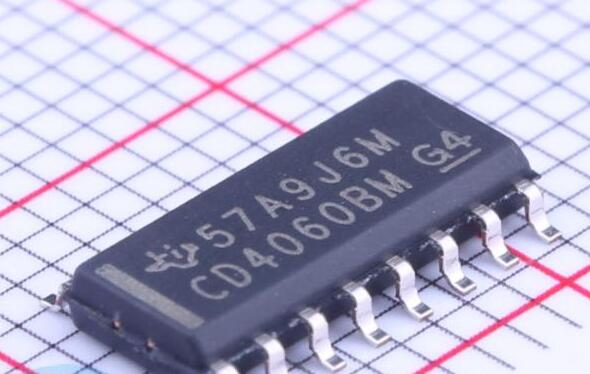

CD4060BM96: Counter/Divider Single 14-Bit Binary UP 16-Pin SOIC T/R

CD4060B consists of an oscillator section and 14 ripple-carry binary counter stages. The oscillator configuration allows design of either RC or crystal oscillator circuits. A RESET input is provided which resets the counter to the all-O's state and disables the oscillator. A high level on the RESET line accomplishes the reset function. All counter stages are master-slave flip-flops. The state of the counter is advanced one step in binary order on the negative transition of I (and O). All inputs and outputs are fully buffered. Schmitt trigger action on the input-pulse line permits unlimited input-pulse rise and fall times.

The CD4060B-series types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT, and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).

⭐ Key Features
  • 12 MHz clock rate at 15 V
  • Common reset
  • Fully static operation
  • Buffered inputs and outputs
  • Schmitt trigger input-pulse line
  • 100% tested for quiescent current at 20 V
⚙️ Technical Specifications
Mounting StyleSMD/SMT
Package / CaseSOIC-Narrow-16
Counter TypeBinary
Logic FamilyCD4000
Number of Bits10 bit
Counting SequenceUp
Operating Supply Voltage3 V to 18 V
Operating Temperature-55°C to +125°C
Output Current+/- 1.5 mA
BrandTexas Instruments
Factory Pack Quantity2500
Unit Weight0.004998 oz
🖼️ Product Gallery
CD4060BM96 Product Line
Counter IC Details
Semiconductor Component

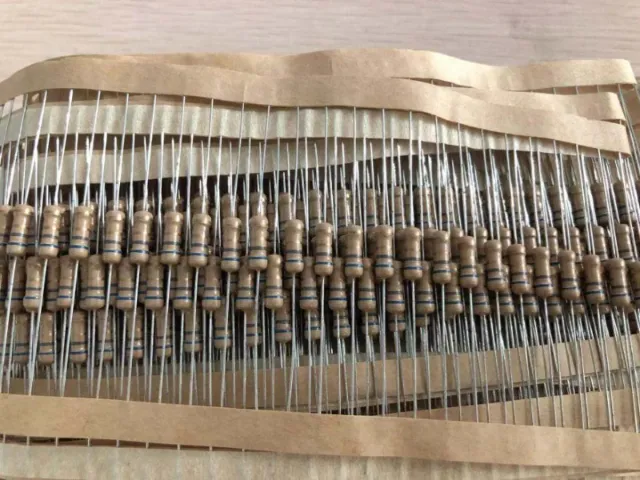

IC Packaging

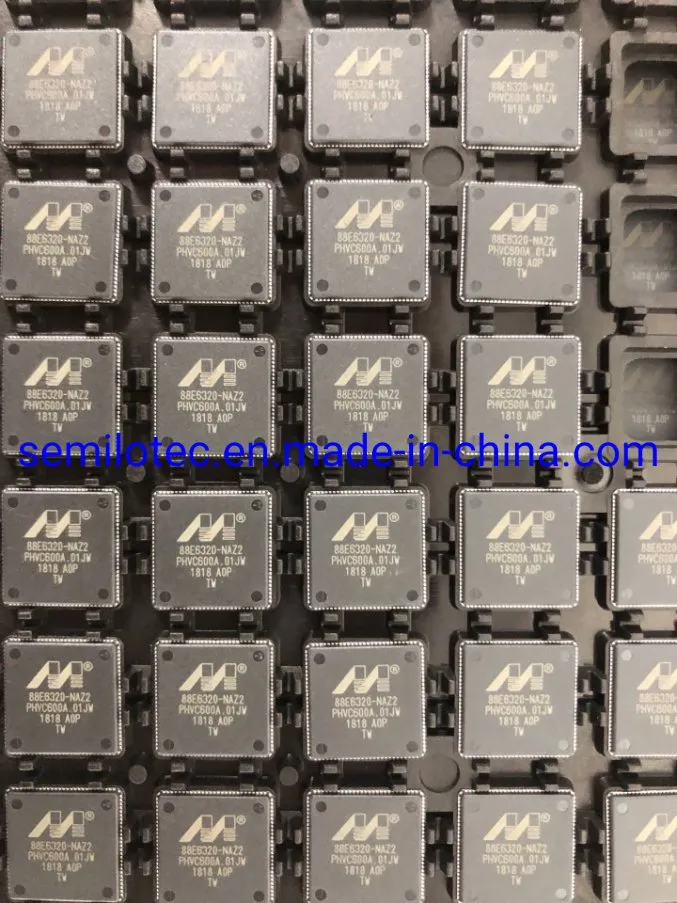

Shipping Inspection
Quality Control
📜 Certifications & Packing
Quality Certificate
Packing Details
✅ Why Choose Us
  • Located in the primary electronic market center of China.
  • 100% guarantee components quality: Genuine Original.
  • Sufficient stock for urgent demands.
  • Professional technical support to reduce manufacturing risk.
  • Faster shipment: In-stock items ship the same day.
  • 24-hour dedicated service.
❓ Frequently Asked Questions
What is the primary function of the CD4060BM96?
The CD4060BM96 is a 14-stage ripple-carry binary counter/divider and oscillator, designed for high-voltage CMOS applications requiring frequency division or time-delay functions.
What is the operating voltage range for this IC?
It supports a wide operating supply voltage range from 3V to 18V, making it versatile for various digital logic circuits.
What package does the CD4060BM96 come in?
This specific model is provided in a SOIC-16 (Small Outline Integrated Circuit) package, suitable for surface mount (SMD/SMT) technology.
Are the parts genuine and new?
Yes, we guarantee that all components are 100% genuine, new, and original parts with a standard warranty of 180 days.
Can this IC handle extreme temperatures?
Yes, the CD4060B series is designed for high reliability with an operating temperature range of -55°C to +125°C.
How quickly can you ship the CD4060BM96?
In-stock components are typically processed and shipped on the same day the order is confirmed.
