Winwon Chips
Winwon Chips

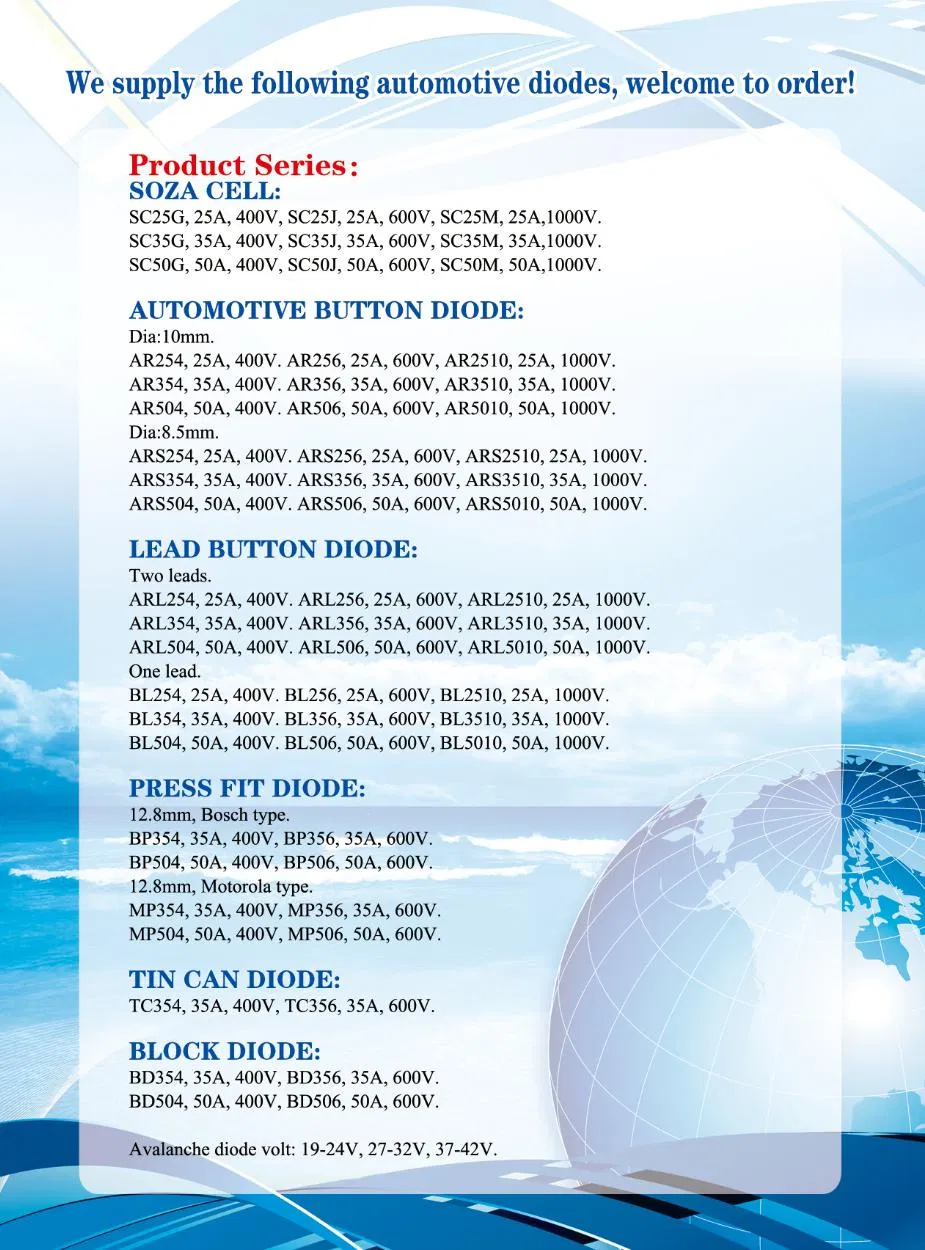

Available range: 25A, 35A, 50A | Voltage: 50-1000V

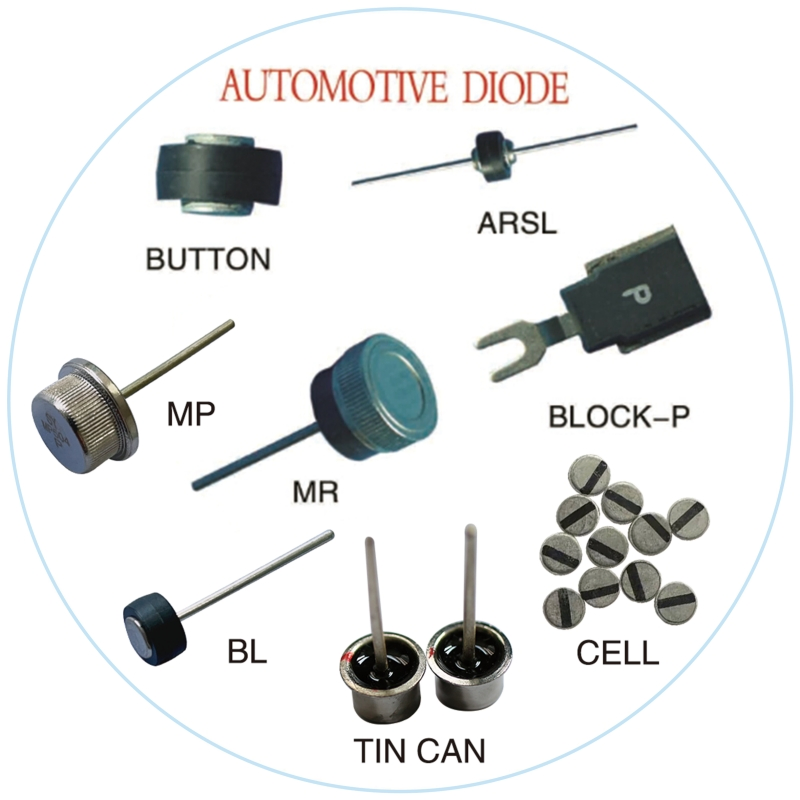

| Series | Part No | VRWM (V) | IF (A) | IFSM (A) | VF (V) | IRRM (μA) | Temp Range |
|---|---|---|---|---|---|---|---|

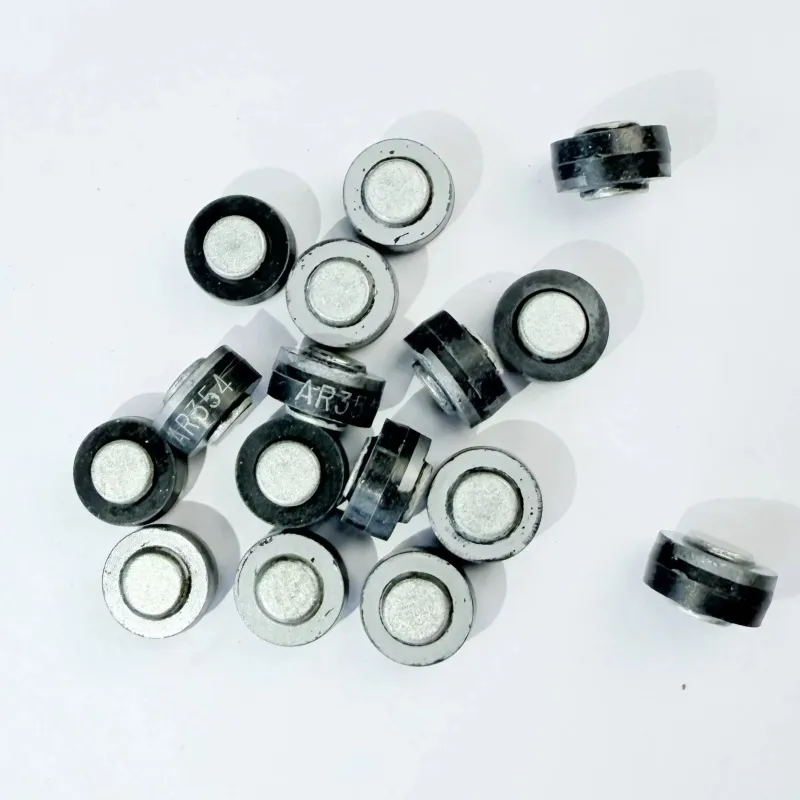

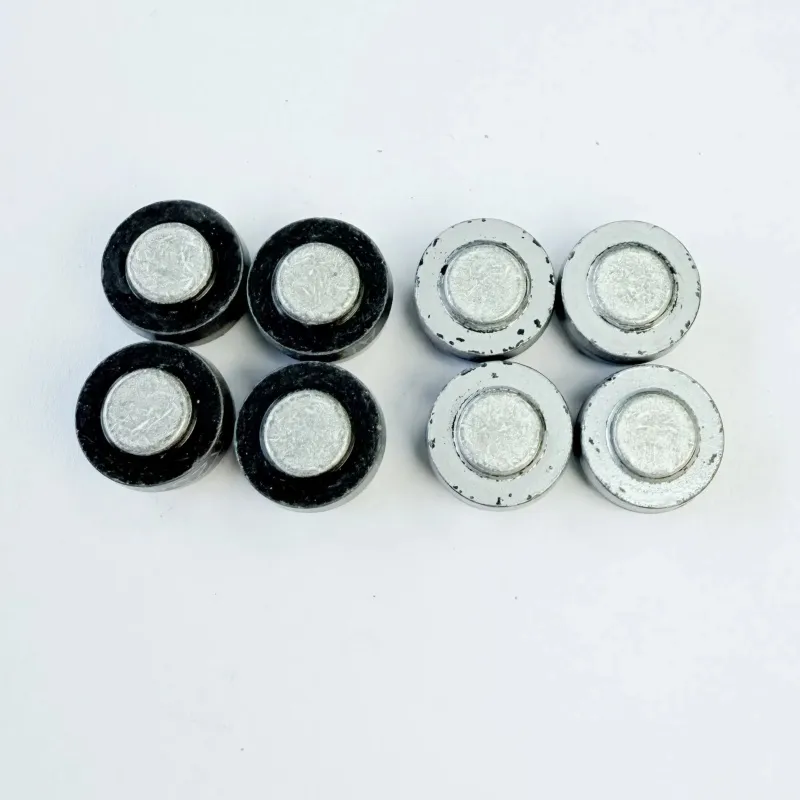

| BUTTON | AR256 | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| BUTTON | AR356 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| BUTTON | AR506 | 600 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| LEAD BUTTON | ARL356 | 600 | 35 | 300 | 1 | 5 | -55ºC~+150ºC |
| SOZA CELL | SC35J | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
