| Model NO. | Brocade G720 | Transmission Rate | 64GB |
| Ports | ≥48 | Condition | 100% Original Brand |
| Ficon Support | Supports | Function | Qos, Snmp, Stackable, Vlan Support |
| Size (mm) | 440(W) X 43.9(H) X 355.6(D) | Access Gateway | Supports |
| Bandwidth | 4.096 Tb/S | Switch Capacity | 64gbps |
Unleash Autonomous SAN Performance

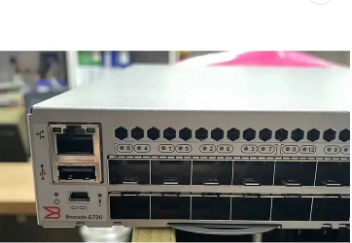

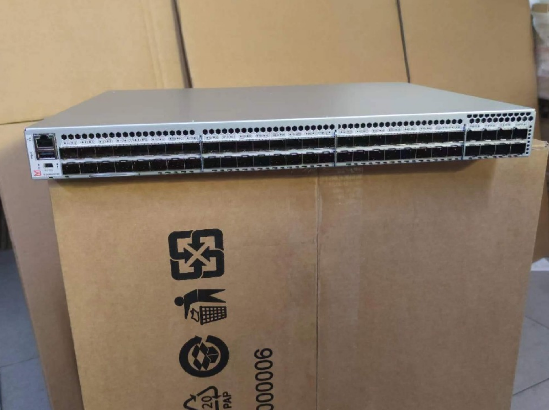

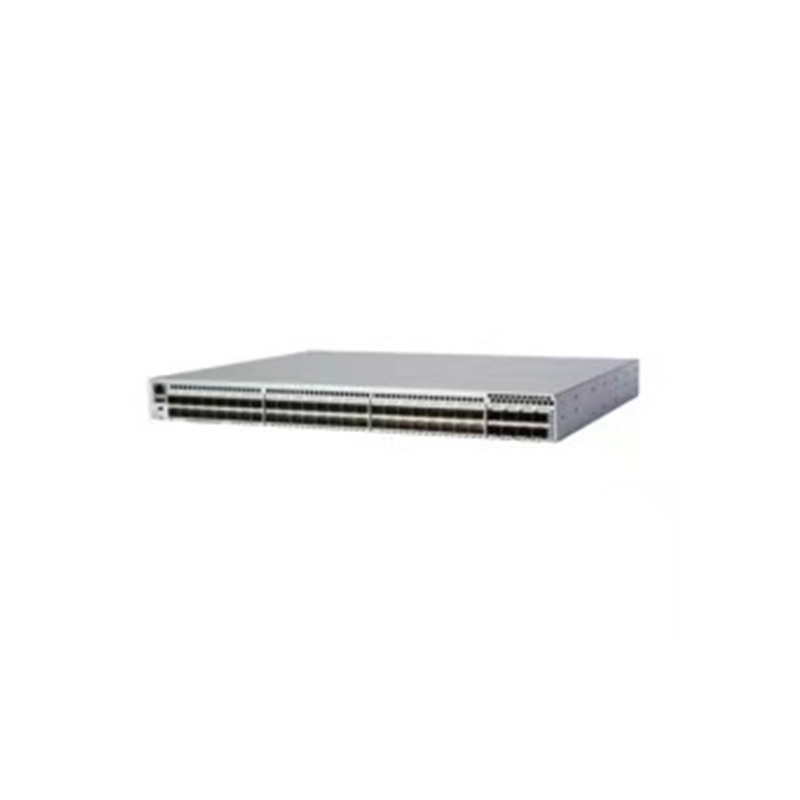

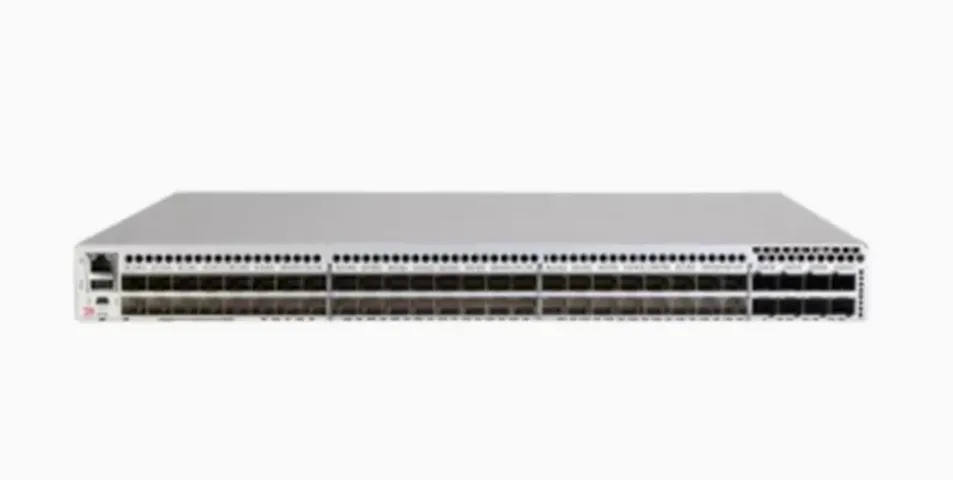

The Brocade G720 Switch provides 64 ports in an ultra-dense 1U design. Delivering unmatched 64G performance and 50% lower latency compared to the previous generation, this switch delivers a fixed-port building block, designed to maximize performance of flash and NVMe environments to meet demanding workloads.
With Brocade Gen 7 technology, it introduces the autonomous SAN: a network that can self-learn, self-optimize, and self-heal without intervention, taking the pain out of managing your data center altogether.
| Lifecycle | Active |
| Access Gateway | Supports |
| Bandwidth | 4.096 Tb/s |
| Certified Maximum | 4K active nodes; 56 switches, 19 hops in Brocade Fabric OS fabrics |
| Fibre Channel Performance | 8.5Gb/s, 10.53Gb/s, 14.025Gb/s, 28.05Gb/s, 57.8Gb/s line speed; auto-sensing of 8, 10, 16, 32, and 64G port speeds. |
| ISL Trunking | Frame-based trunking with up to eight SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk. |
| Power | 349W, dual hot-swappable power supplies |
| Total Line Rate Ports | 24 to 64 @ 64G |
| Brocade FC SAN Switches | NVIDIA Ethernet Series | NVIDIA InfiniBand Series |
|---|---|---|
| Brocade G610 / G620 | SN5000 Series | Quantum-X800 Series |
| Brocade G630 / G710 | SN4000 Series | Quantum-2 QM9700 |
| Brocade G720 / G730 | SN3000 Series | Quantum QM8700 |
| Brocade X6 / X7 Directors | SN2000 Series | - |
We are a high-tech company featuring R&D, design, production, marketing, and professional services. We provide solutions for high-speed Internet access products and smart telecommunications, including PCIe and OCP server network adapters, optical modules, DAC/AOC/ACC/AEC, and MTP/MPT optical fiber patch cords.
Our 1G to 800G Ethernet and InfiniBand product series are compatible with all mainstream brands and are widely applied in cloud services, high-caliber computing, enterprise storage, AI, and data centers. We offer a 36-month warranty for all products.
With 16 years of industry experience, we specialize in solutions for Brocade FC SAN, Nvidia InfiniBand, and high-speed Ethernet, providing GPU, DPU, and RAID controllers to meet modern data center demands.
