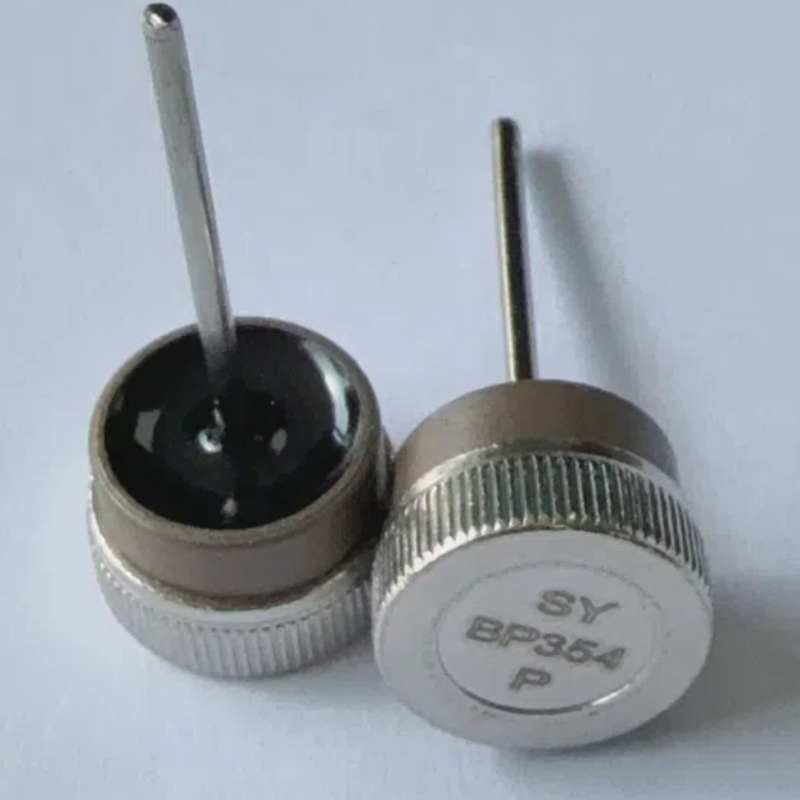

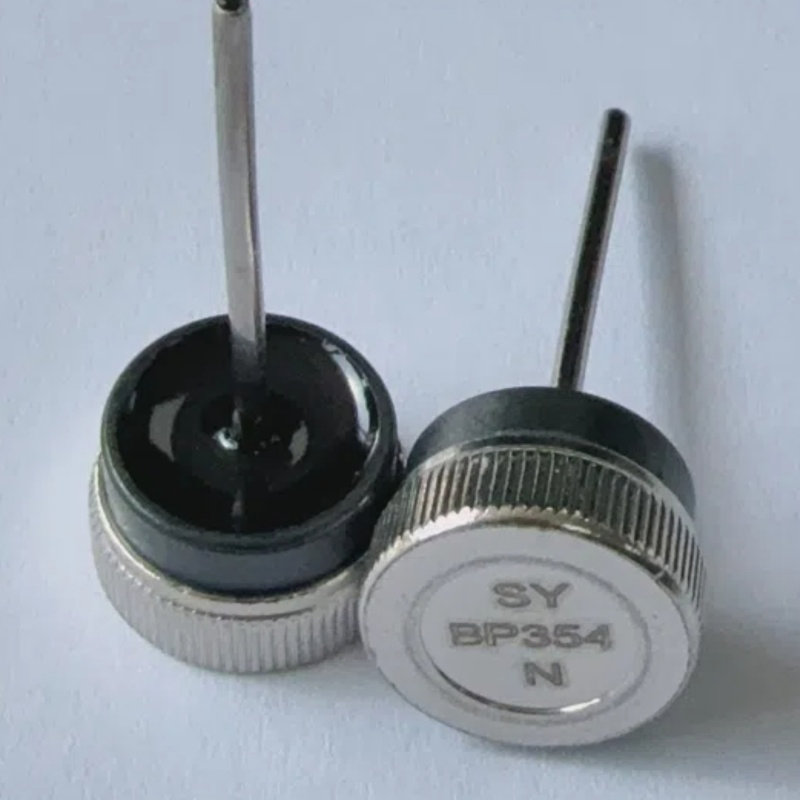

50A, 600V Bosch Press Fit Diode 506
50A, 600V Bosch Press Fit Diode 506
50A, 600V Bosch Press Fit Diode 506
50A, 600V Bosch Press Fit Diode 506
50A, 600V Bosch Press Fit Diode 506
1 / 5
50A, 600V Bosch Press Fit Diode 506
50A, 600V Bosch Press Fit Diode 506
50A, 600V Bosch Press Fit Diode 506
50A, 600V Bosch Press Fit Diode 506
50A, 600V Bosch Press Fit Diode 506

50A, 600V Bosch Press Fit Diode 506

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.
BP506
Technology
Optoelectronic Semiconductor
Material
Compound Semiconductor
Models
Bpz3524(20-24V), Bpz3528(24-32V), Bpz3540(38-42V)
Package
Bulk
Signal Processing
Digital
Type
Intrinsic Semiconductor
If
35
Vrwm
600
Vf
1
Capacity
200K/Month
HS Code
85411000
🔍

Product Description

WE supply 35A, 50A, 200V, 400V, 600V BOSCH PRESS FIT DIODE 506

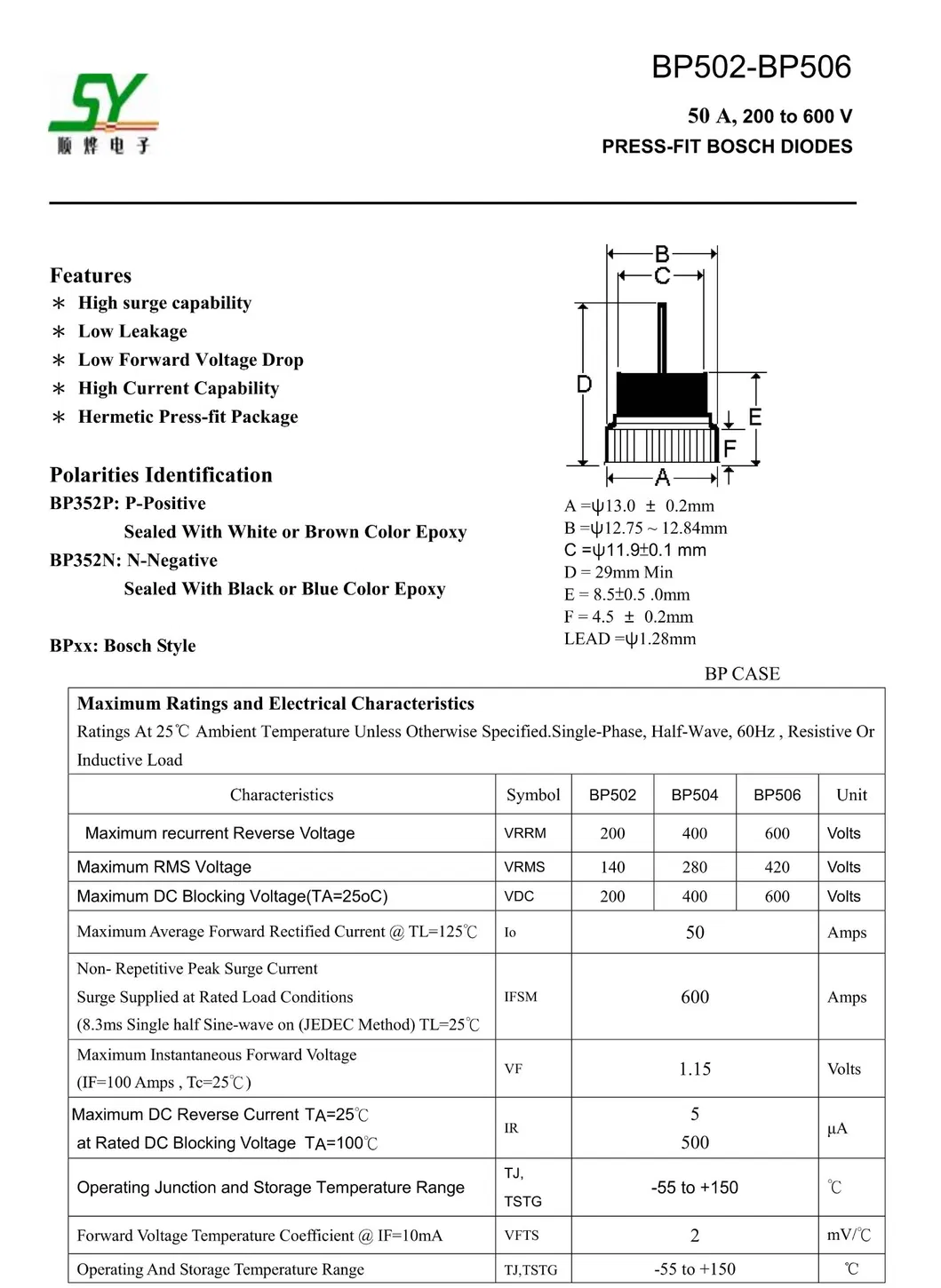

Bosch Press Fit Diode Datasheet 1

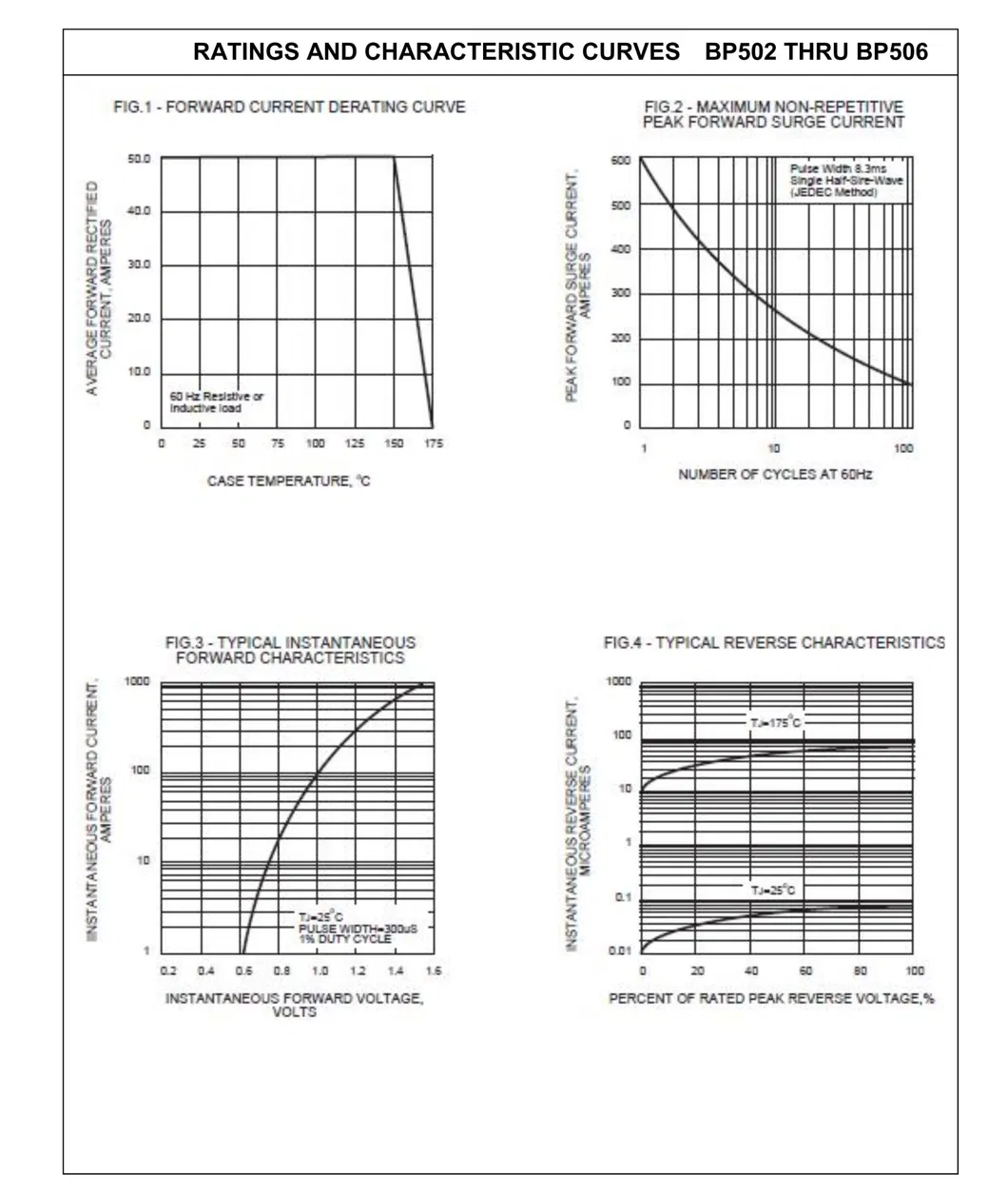

Bosch Press Fit Diode Datasheet 2
📋

Automotive Diode Series List

AUTOMOTIVE DIODE SPECIFICATIONS
Series Part No VRWM (V) IF (A) IFSM (A) VF (V) IRRM (μA) Temp Range Type
Working Voltage Forward Current 8.3ms Half Sine Max Voltage @Ta=25ºC Operating
BLOCKBD3005-BD30650-600303001.15-55ºC~+150ºCPress Fit
BLOCKBD3505-BD35650-600353501.15-55ºC~+150ºCPress Fit
BLOCKBD5005-BD50650-600505001.15-55ºC~+150ºCPress Fit
TIN-CANTC2505-TC25650-600253001.05-55ºC~+150ºCTin-Can
TIN-CANTC3505-TC35650-600354001.05-55ºC~+150ºCTin-Can
MOTORMP3505-MP35650-600354001.05-55ºC~+150ºCMotor Fit
BOSCHBP5005-BP50650-60035-504001.05-55ºC~+150ºCBosch Fit
📦

Packaging & Reliability

Package Details 1

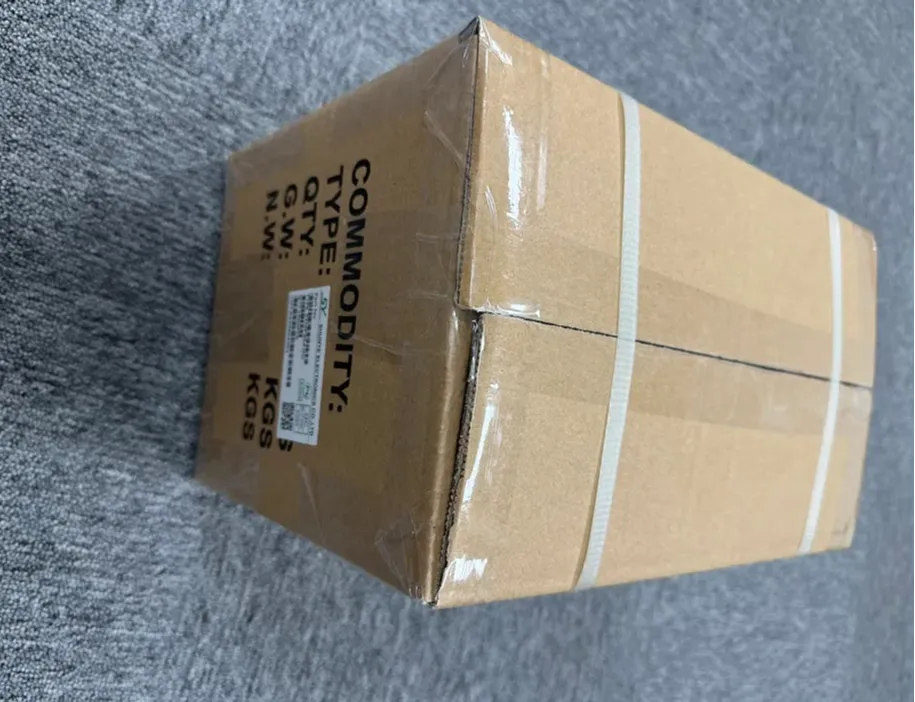

Package Details 2

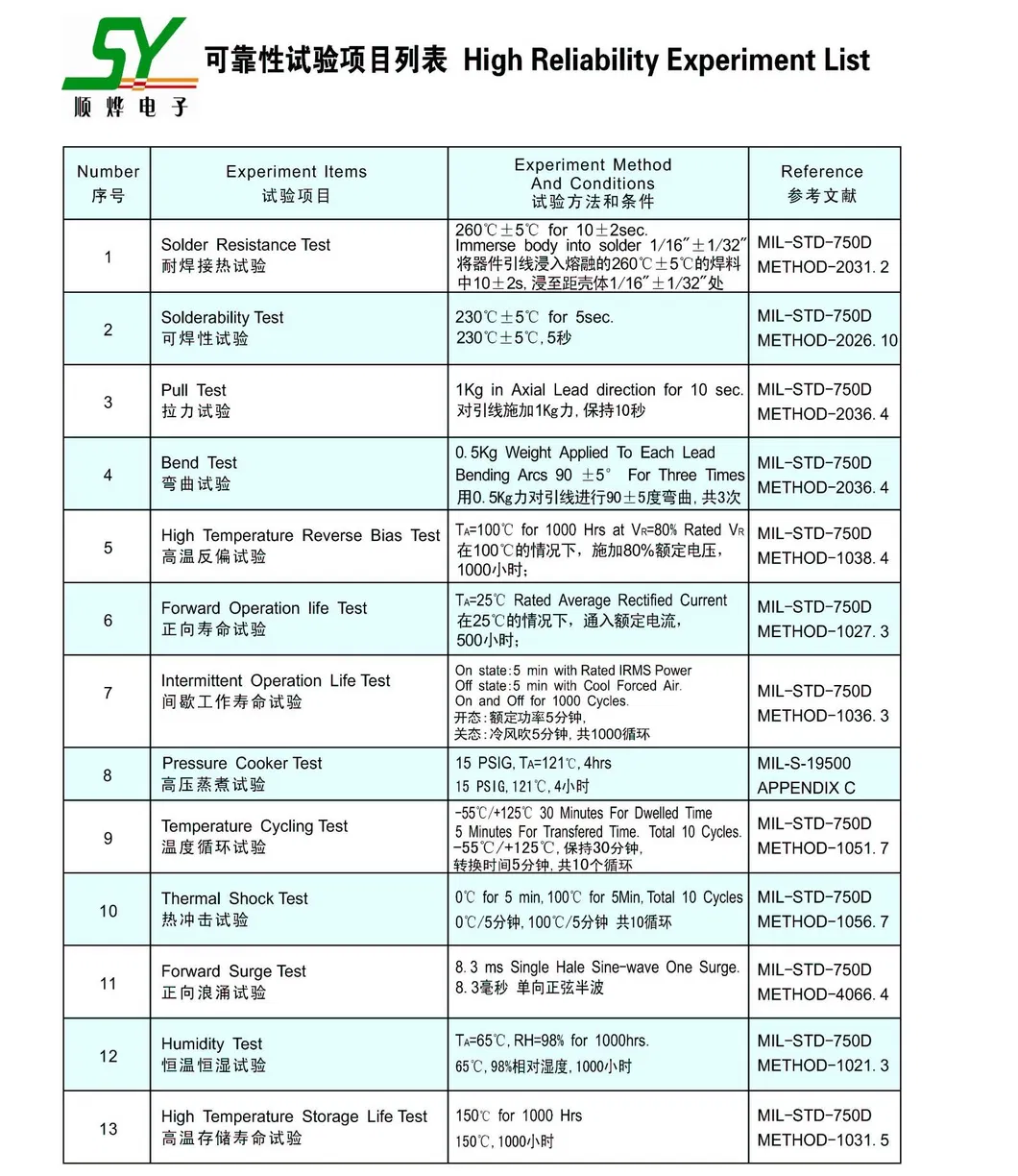

Reliability Test List
📸

Detailed Product Photos

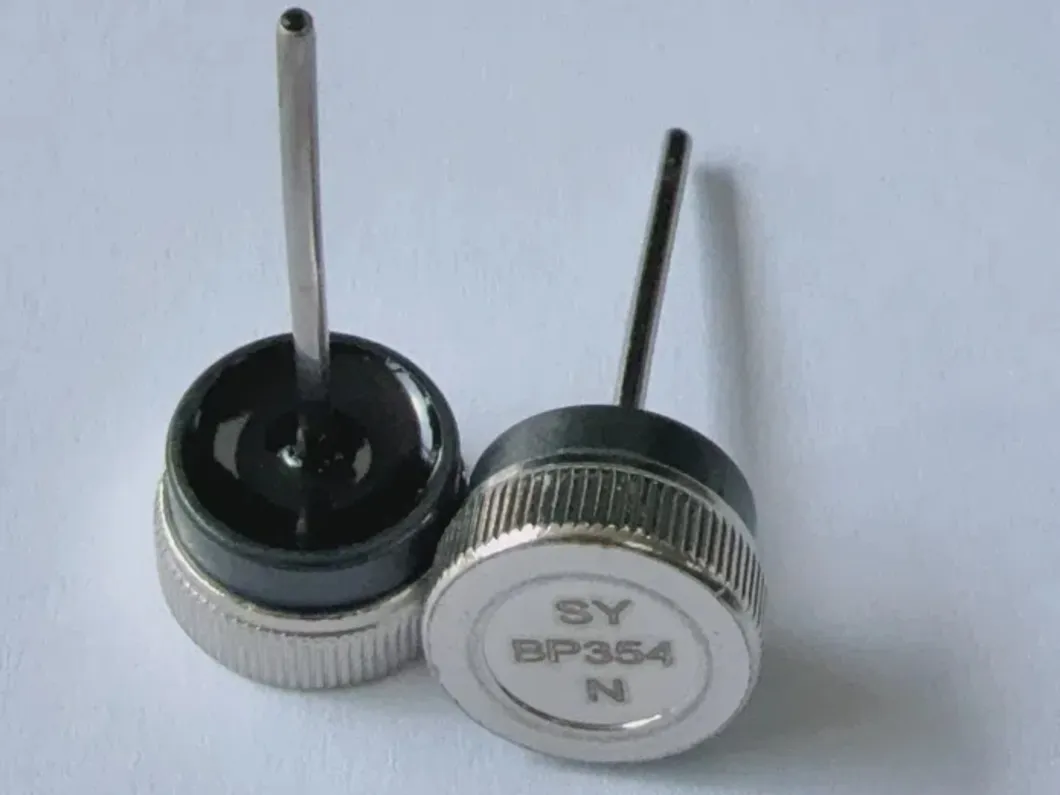

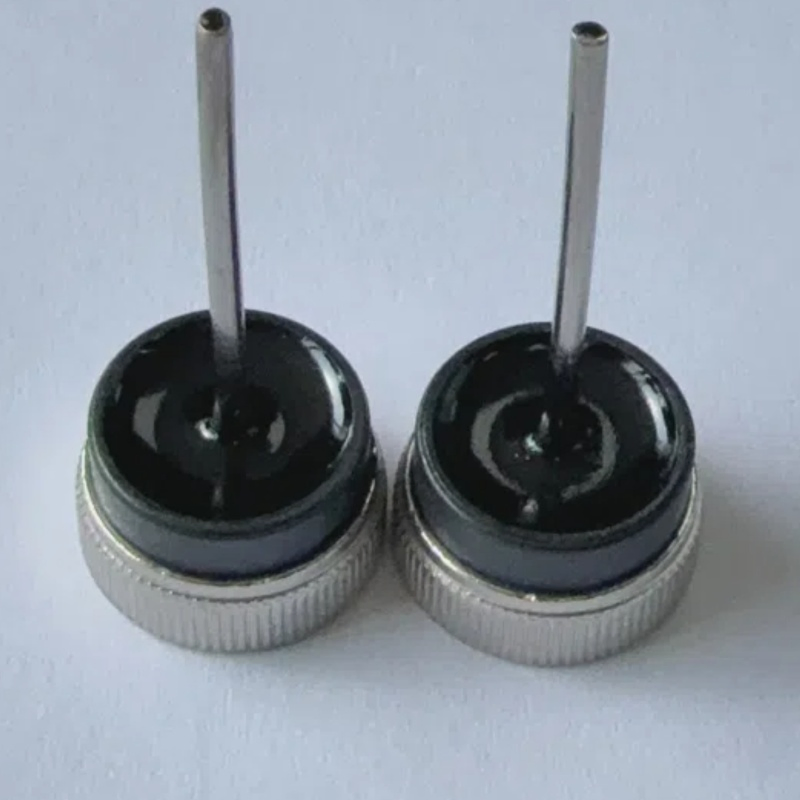

Detailed Photo 1

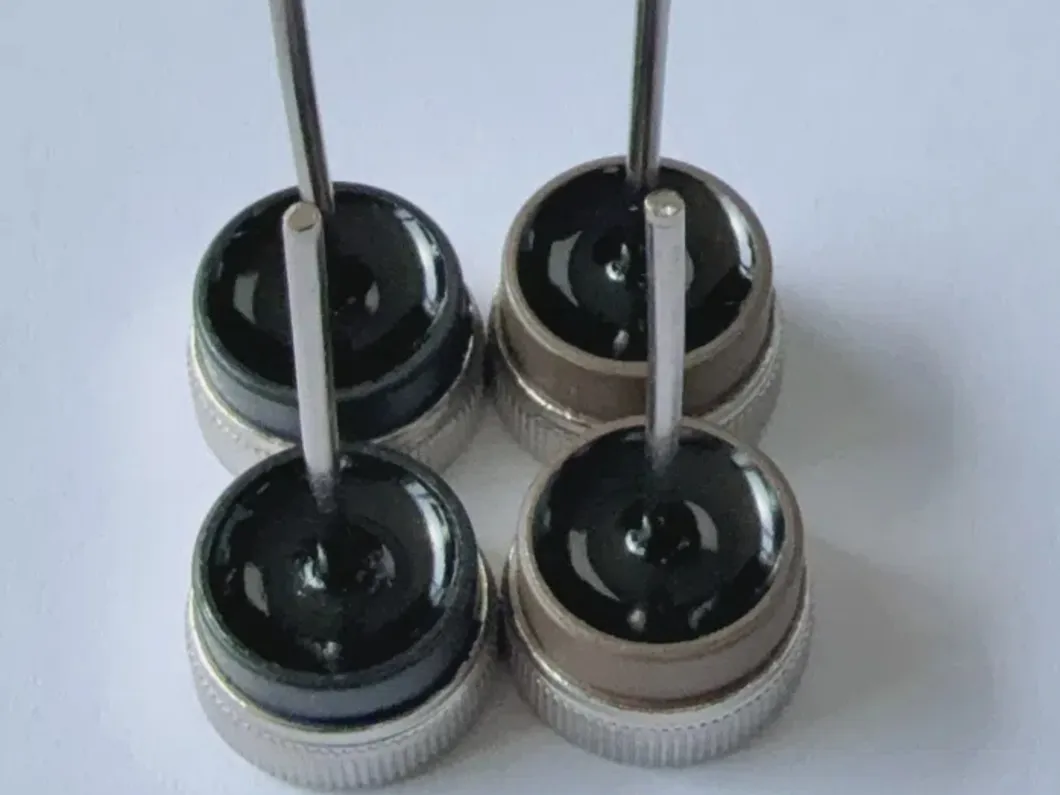

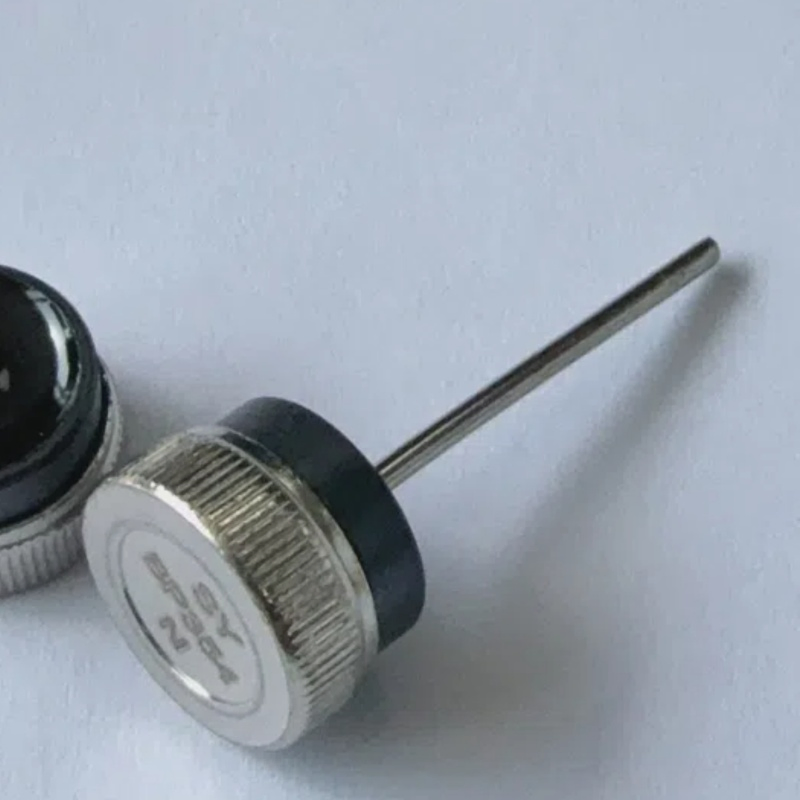

Detailed Photo 2

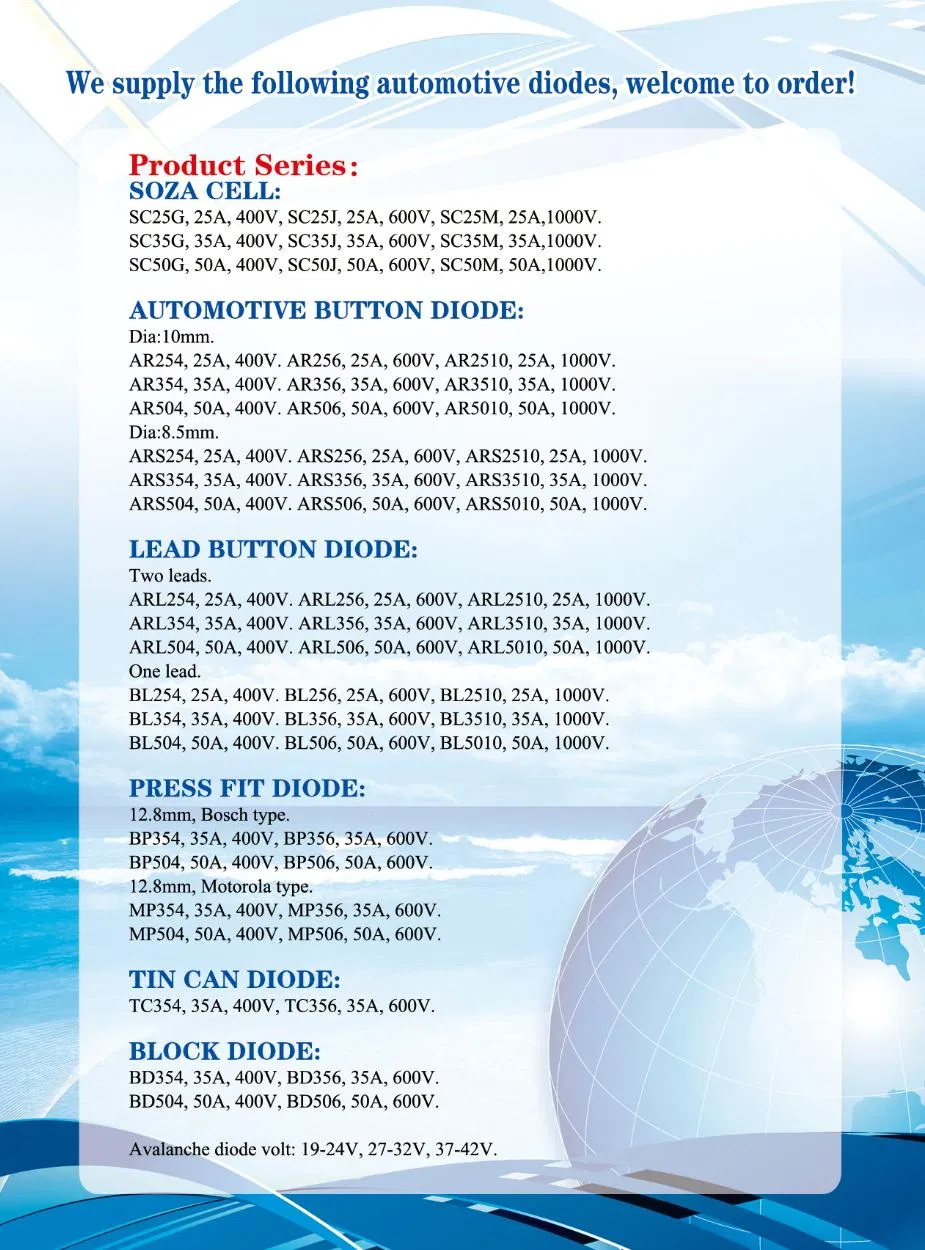

Product Series
🤝

Our Exhibition

Exhibition Fair Photo
❓

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a specialized manufacturer of diodes, bridge rectifiers, and automotive rectifier diodes. We focus on providing competitive pricing, fast delivery, and high-quality prompt service.
Can I request samples for testing?
Yes, we offer free samples. You only need to cover the international freight costs, which will be deducted from your first formal order with us.
What is the typical delivery lead time?
Usually, the lead time is 1-2 weeks after payment. We maintain stock for many standard parts to ensure timely delivery.
What are the available payment terms?
For orders under $10,000, 100% advance is required. For $10,000–$20,000, 50% advance and 50% before shipment. Above $20,000, 30% advance and 70% before shipment. Established customers with good reputation may access NET 30 days terms.
What are the shipment conditions?
We offer FOB Shanghai by air or CFR to your city seaport by sea. We also collaborate with major couriers like DHL, FEDEX, and TNT.
Do you provide technical support?
Yes, we provide full technical support for our products. If you have any technical questions or need assistance, our team is ready to help.
