Ball Screw Fixed End Support Unit for Linear Motion Applications
Ball Screw Fixed End Support Unit for Linear Motion Applications
Ball Screw Fixed End Support Unit for Linear Motion Applications
Ball Screw Fixed End Support Unit for Linear Motion Applications
Ball Screw Fixed End Support Unit for Linear Motion Applications
1 / 5
Ball Screw Fixed End Support Unit for Linear Motion Applications
Ball Screw Fixed End Support Unit for Linear Motion Applications
Ball Screw Fixed End Support Unit for Linear Motion Applications
Ball Screw Fixed End Support Unit for Linear Motion Applications
Ball Screw Fixed End Support Unit for Linear Motion Applications

Ball Screw Fixed End Support Unit for Linear Motion Applications

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Specifications

Model NO. Fixed End Support Unit
Material Carbon Steel
Bearing Type Angular Contact Ball Bearing
Surface Treatment Black Oxide
Bearing Config DF
Production Capacity 50,000 PCS/Year
📦

Packaging & Delivery

Package Size 10.00cm * 10.00cm * 20.00cm
Gross Weight 1.250kg
🔍

Product Overview

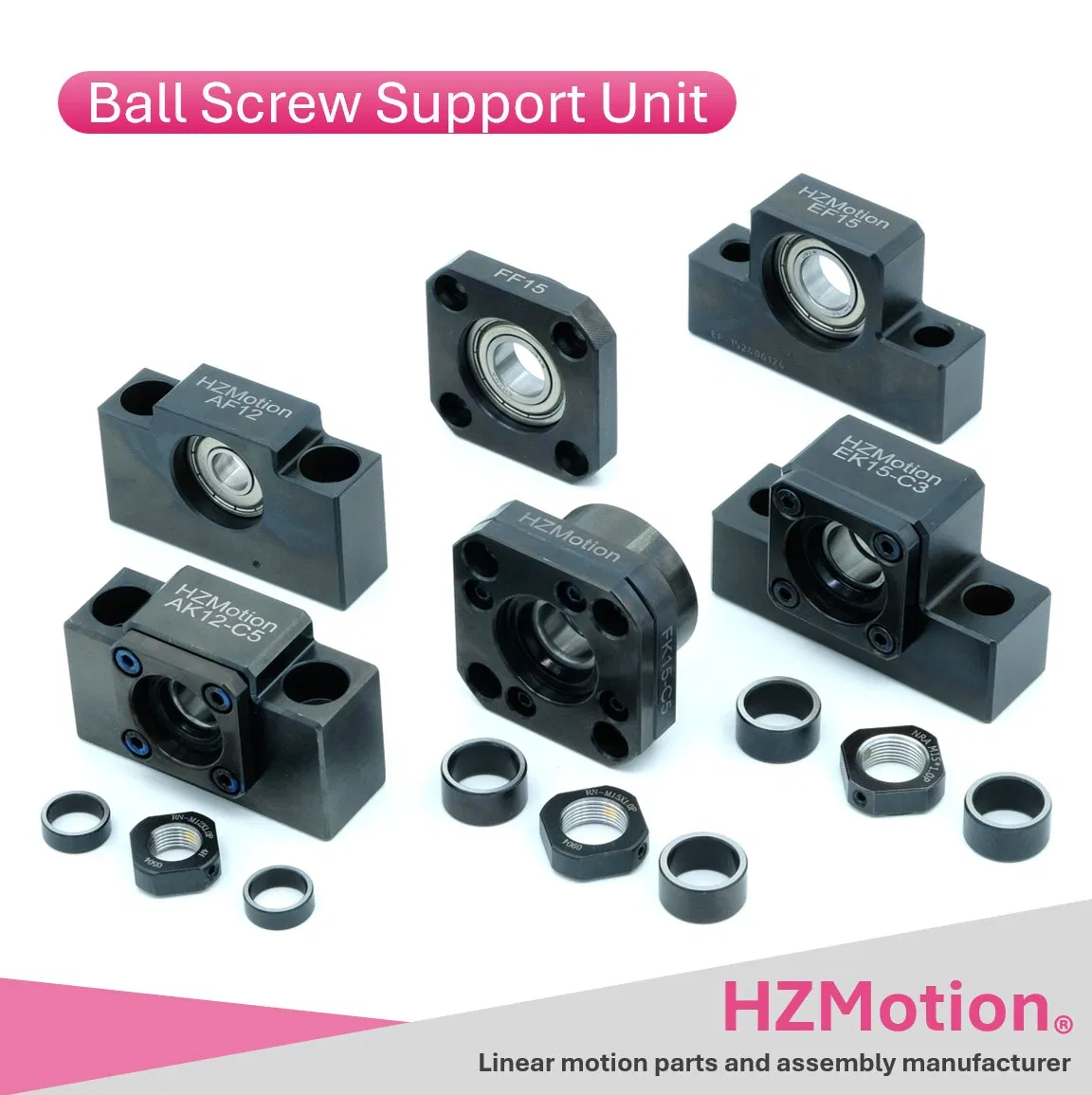

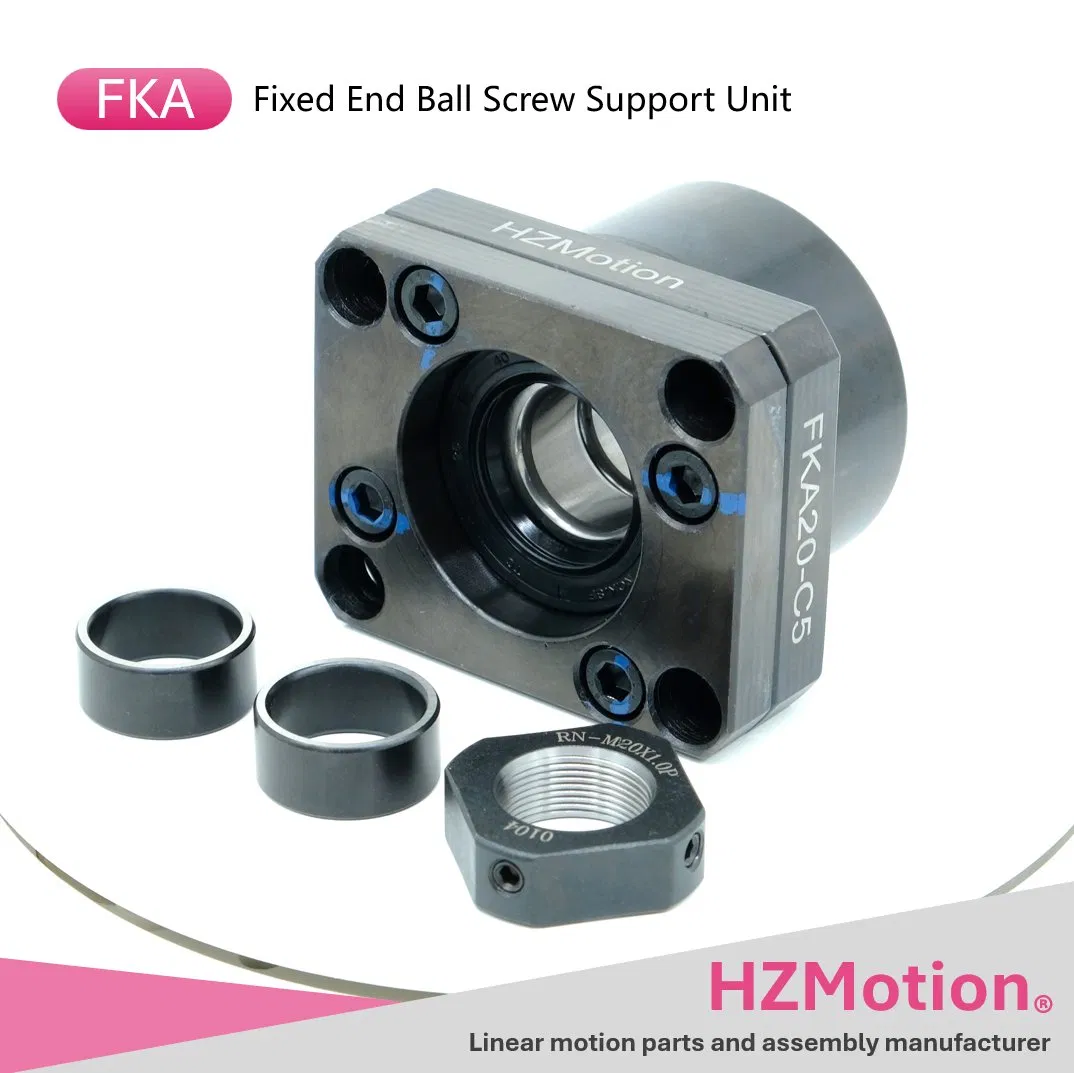

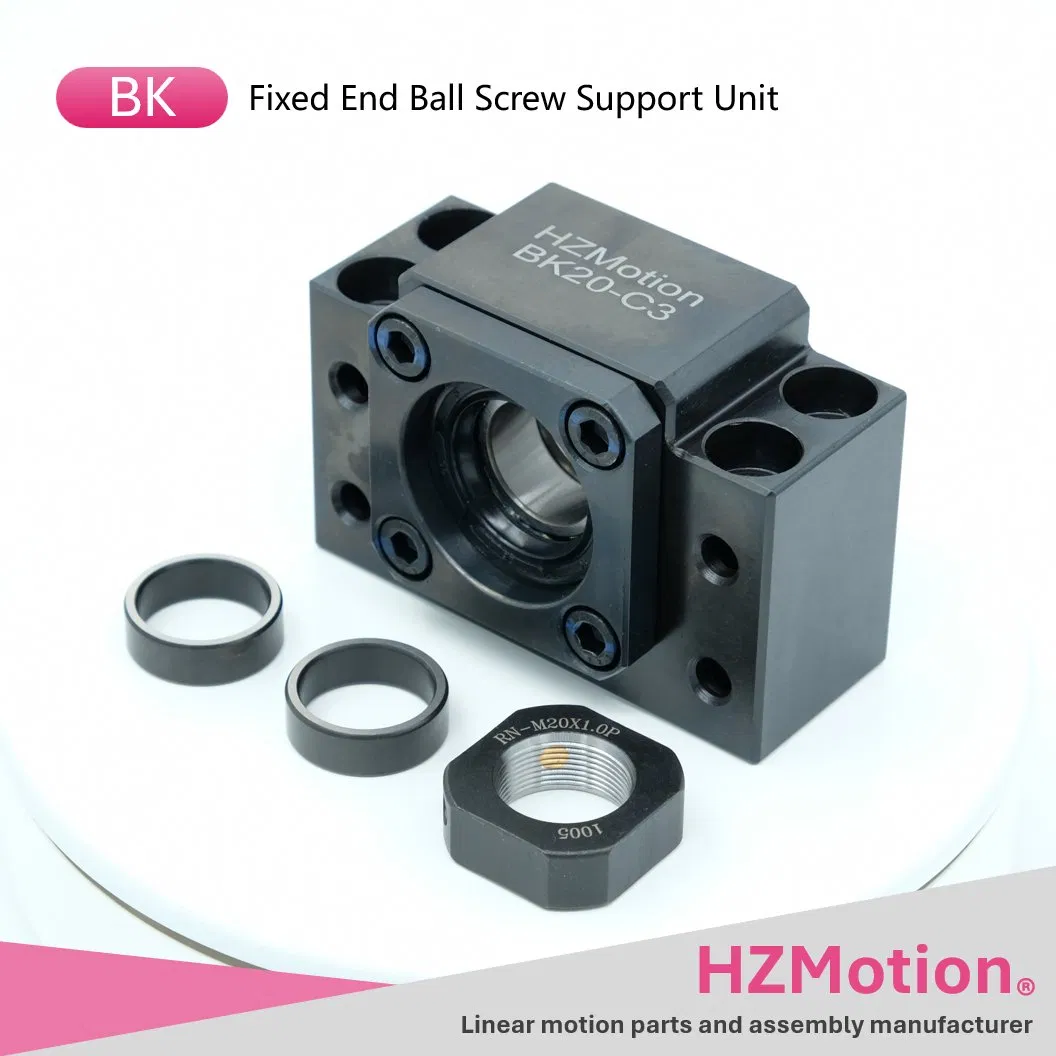

Ball Screw Fixed End Support Unit

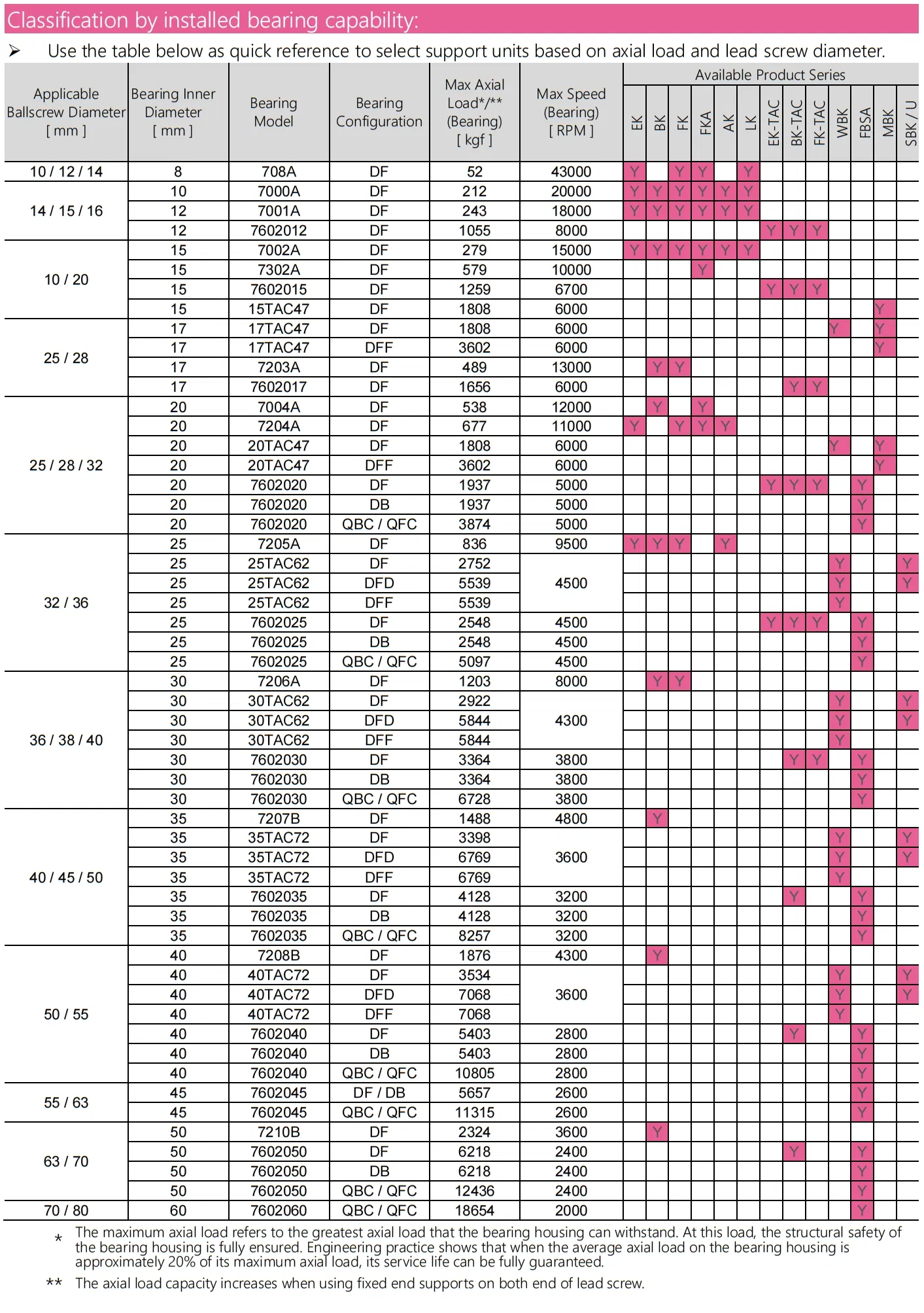

Linear Motion Applications Technical Layout
📋

Technical Parameters

Model Description Type d (mm) Arrangement Contact Angle Preload Max Axial Load
BK10Fixed EndBK10DF25° - 30°Light212
BK12Fixed EndBK12DF25° - 30°Light243
BK15Fixed EndBK15DF25° - 30°Light279
BK20Fixed EndBK20DF25° - 30°Light538
BK25Fixed EndBK25DF25° - 30°Light836
BK12-TACHeavy-DutyBK-TAC12DF60°Heavy1055
BK20-TACHeavy-DutyBK-TAC20DF60°Heavy1937
Dimensional Drawing
⚙️

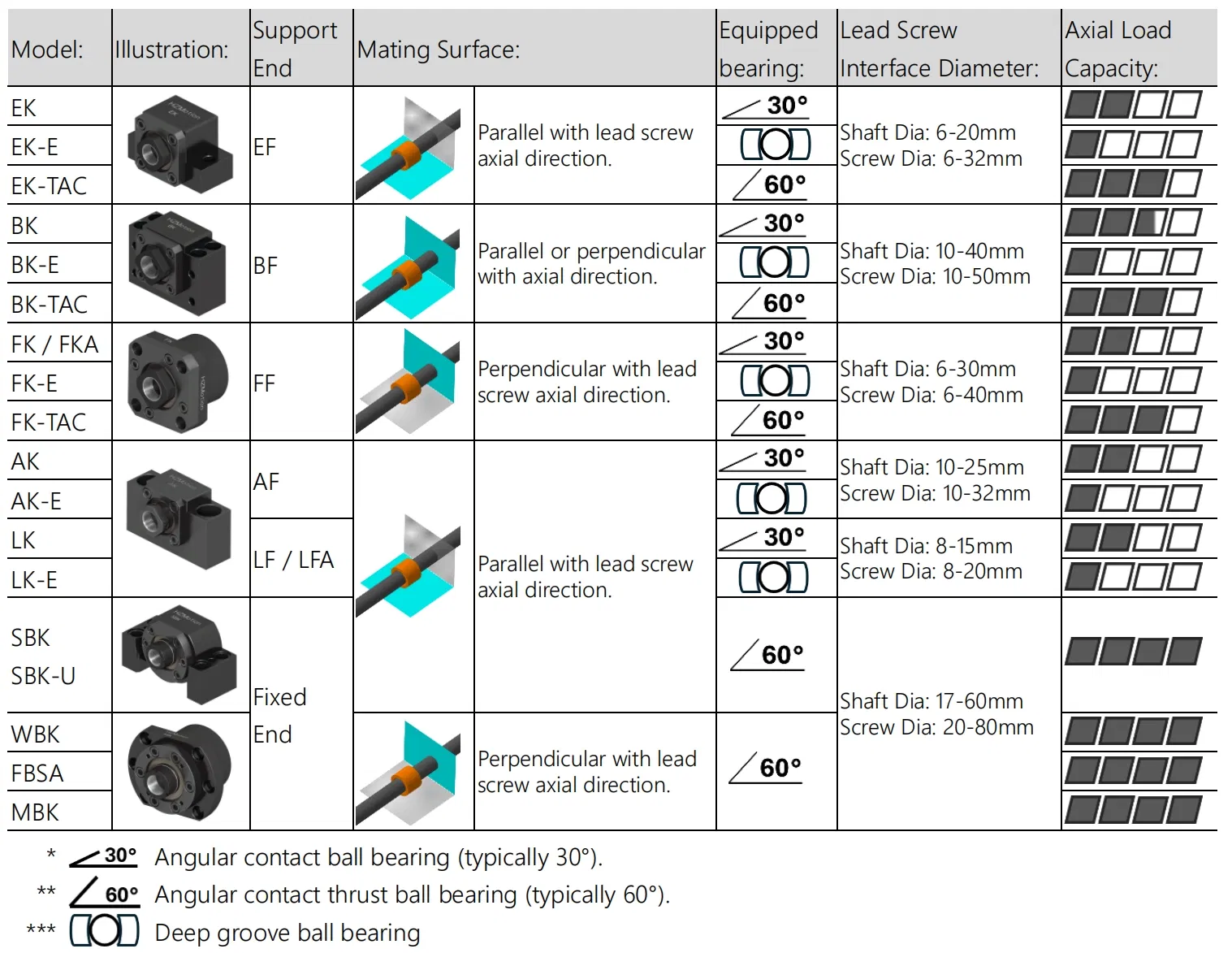

Product Matrix & Capability

Providing high-precision linear motion solutions with comprehensive independent manufacturing capabilities and extensive ready-to-ship inventory. Specialized in precision transmission components for automation equipment and CNC machinery.

  • ✔ Industrial Automation Systems: Intelligent robot linear modules and high-precision transmission systems.
  • ✔ Heavy-Duty CNC Platforms: Precision workbenches with high stability.
  • ✔ Precision Components: Full series of ballscrew support units, nut seats, and motor mounting bases.
  • ✔ Certified Quality: Manufactured under ISO9001:2015 and ISO14001:2015 management systems.
Manufacturing Line Precision Testing
❓

Frequently Asked Questions

Can the integrated motor bracket be used immediately after being taken out of the packaging?
Yes. The bearings in the integrated motor brackets are pre-lubricated and properly preloaded. No additional operations are required before use.
Is it possible to replace only the bearings in the support units?
If a bearing failure occurs, a repair kit can be ordered. However, since the bearings require precise installation, we recommend replacing the entire assembly to ensure optimal performance.
What are the characteristics of square-structured ball screw support units?
Square units (AK, BK, LK) are suitable for various installation spaces. Light-duty types are typically used in automation, while heavy-duty types (BK-TAC, SBK) are used in machine tools or heavy-load applications.
What material is used for the lock nuts?
The NRA series is made from C45 material, while the NR/NF and NK series use high-strength 42CrMo material.
What are the differences in application between bearing angles 15°, 30°, and 40°?
The main difference is rigidity. As the angle increases, the assembled bearing's rigidity increases significantly, impacting the precision of the entire transmission system.
What is the recommended lubrication interval for the support unit bearings?
While bearings are pre-greased, the replenishment interval depends on operating conditions. Generally, maintenance and inspection are recommended once every quarter.
