📋 Basic Info.
Type
Rotary Potentiometer
Quantity
Single Connection
🔍 Product Description

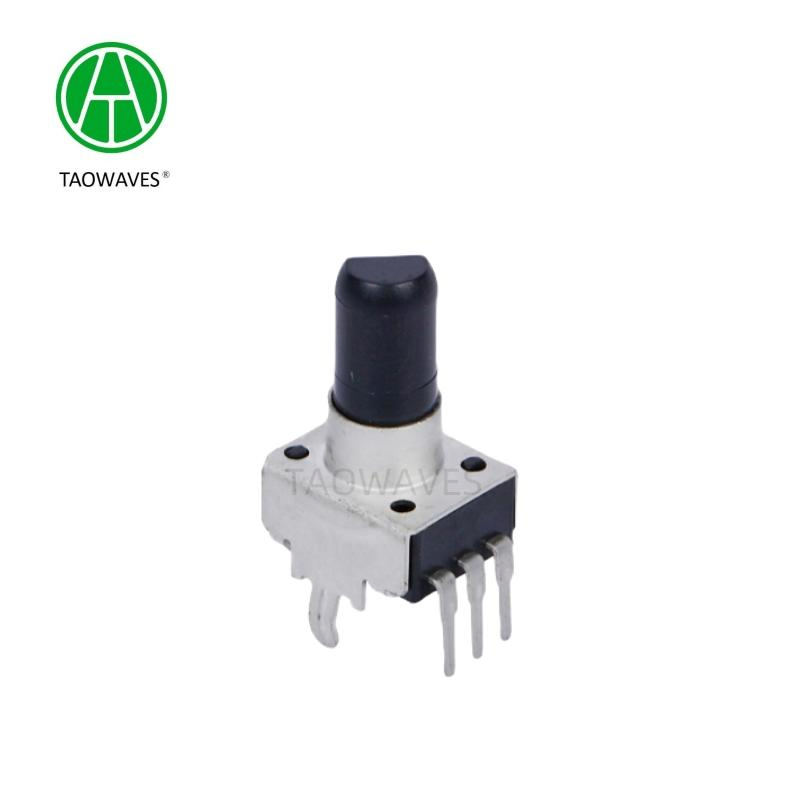

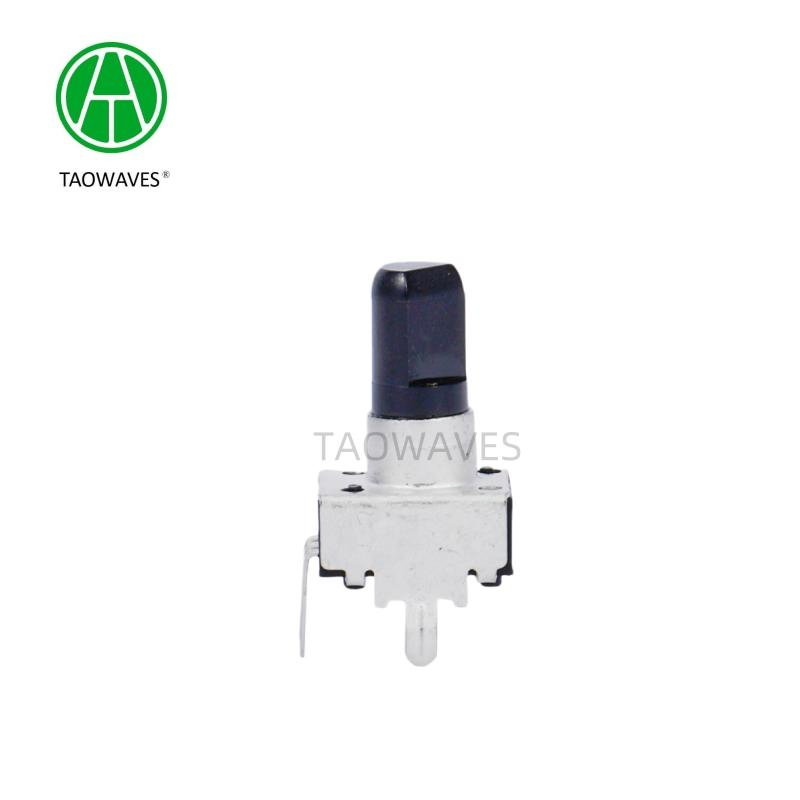

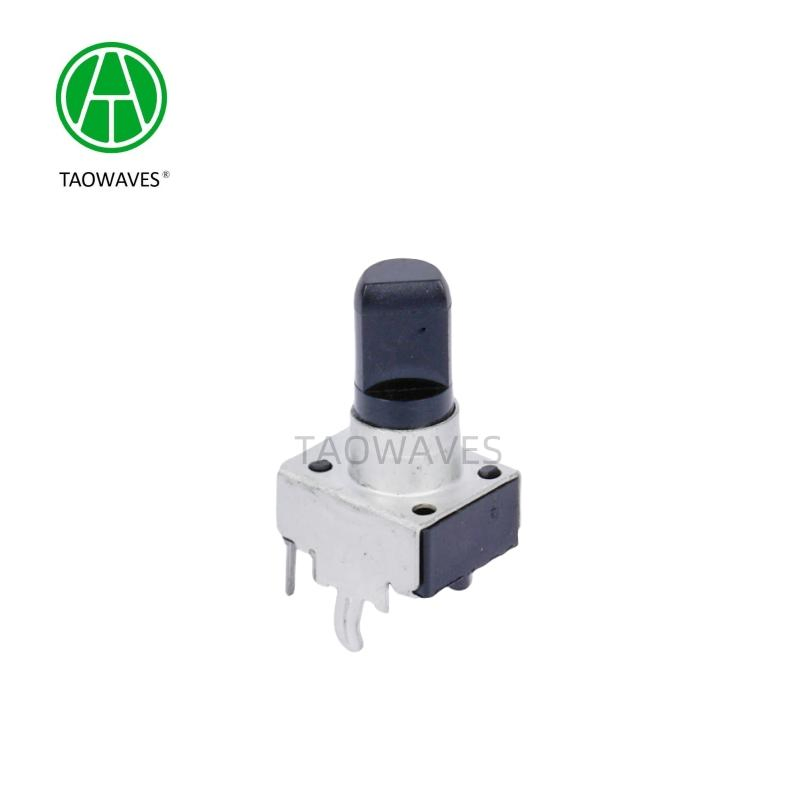

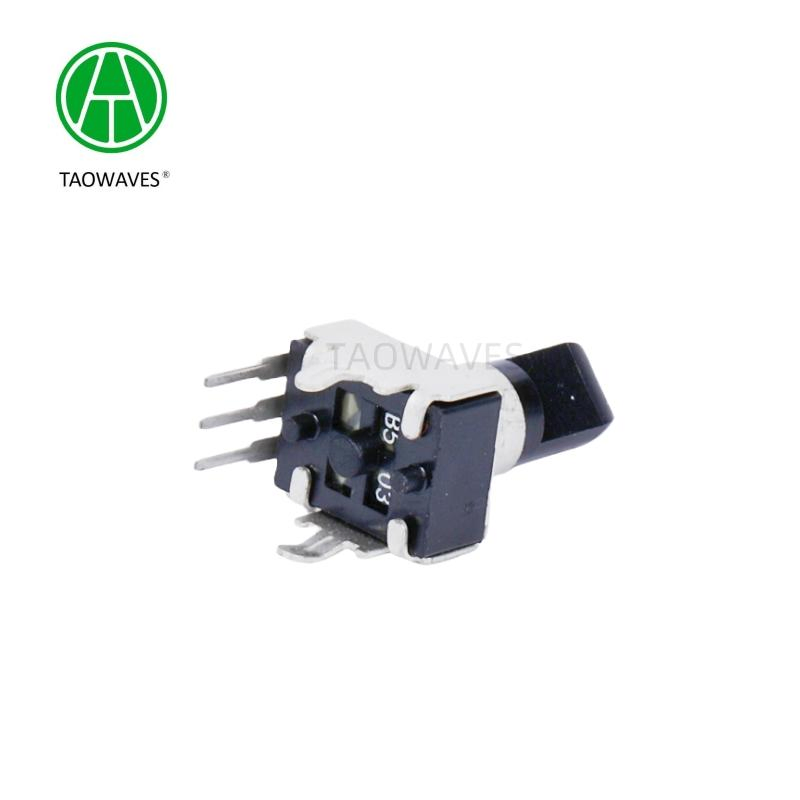

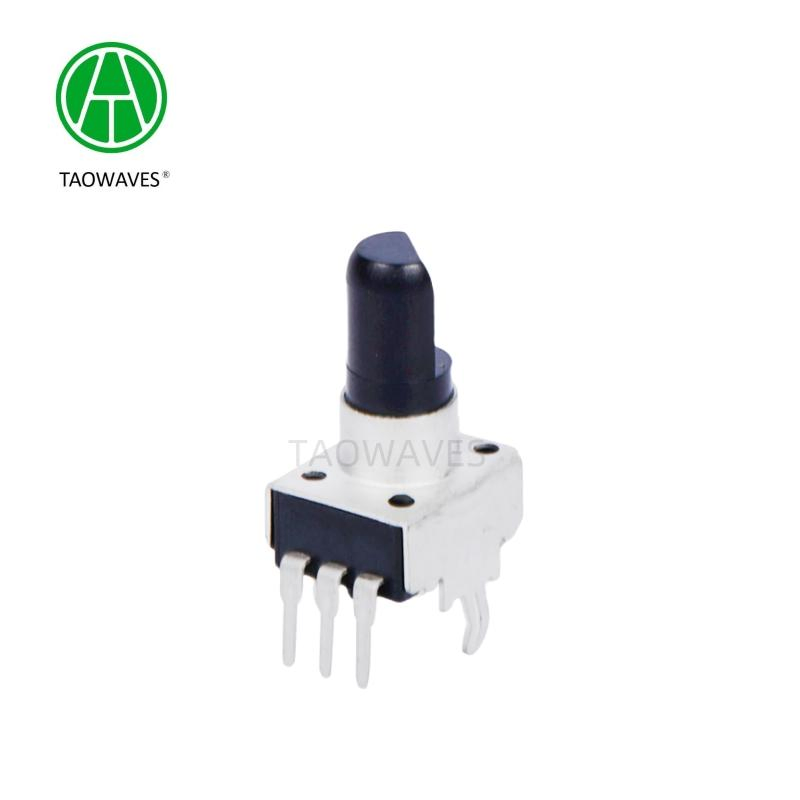

9mm Rotary Potentiometer Insulated Shaft With Locating Point B5k 50k
⚙️ RP93 Series Product Specifications
| 1. Electrical Characteristics |
| Total Resistance |
B10 KΩ (Terminal 1~3) |
| Rated Voltage |
AC 50V DC 20V |
| Noise |
Less than 100mV |
| Insulation |
100 MΩ Max |
| Dielectric Strength |
1 minute at AC 250V |
| 2. Mechanical Characteristics |
| Total Rotational Angle |
280±5° |
| Rotational Torque |
10~100gf.cm |
| Click Torque |
30~150 gf.cm |
| Shaft Wobble |
0.8*L/30mm p-p Max |
| Push-Pull Strength of Shaft |
5KG |
| Stopper Strength |
0.3N.m (3.0kgf.cm) Min |
| 3. Endurance Characteristics |
| Rotational Life |
10,000 cycles |
| Operating Temp Range |
-10ºC to +70ºC |
| Storage Temp Range |
-30ºC to +80ºC |
💡 Suggestions for Order
- External dimensions and designation.
- Intended usage and application environment.
- Nominal resistance value and permissible deviation.
- Regular pattern of resistance taper.
- Whether soft positioning (locating point) is provided.
- Rated power or operational voltage requirements.
- Note: Due to continuous improvement, actual performance may differ from the catalog; please refer to the latest specification table attached to samples.

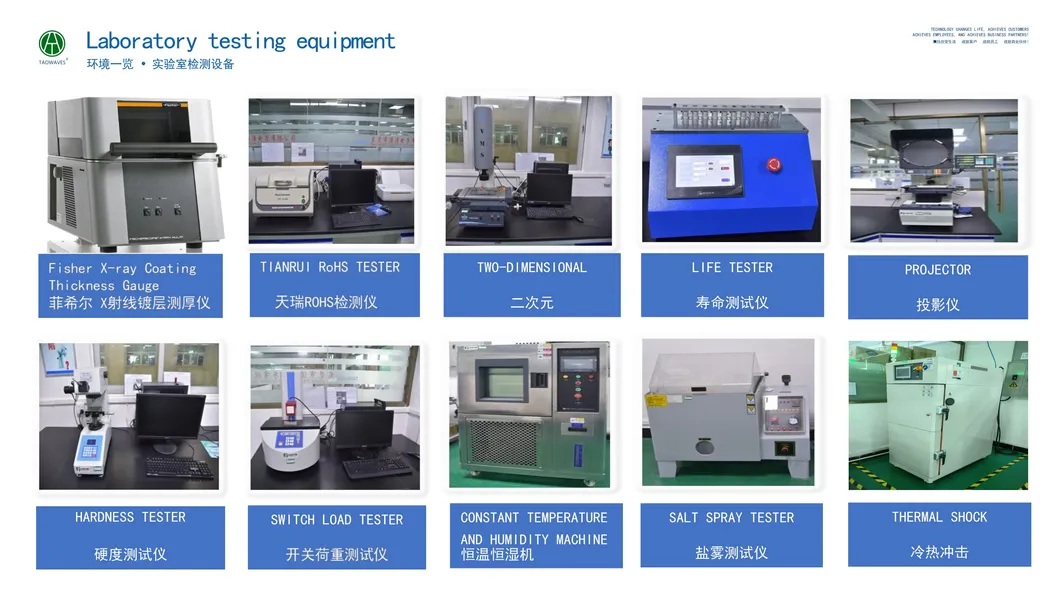

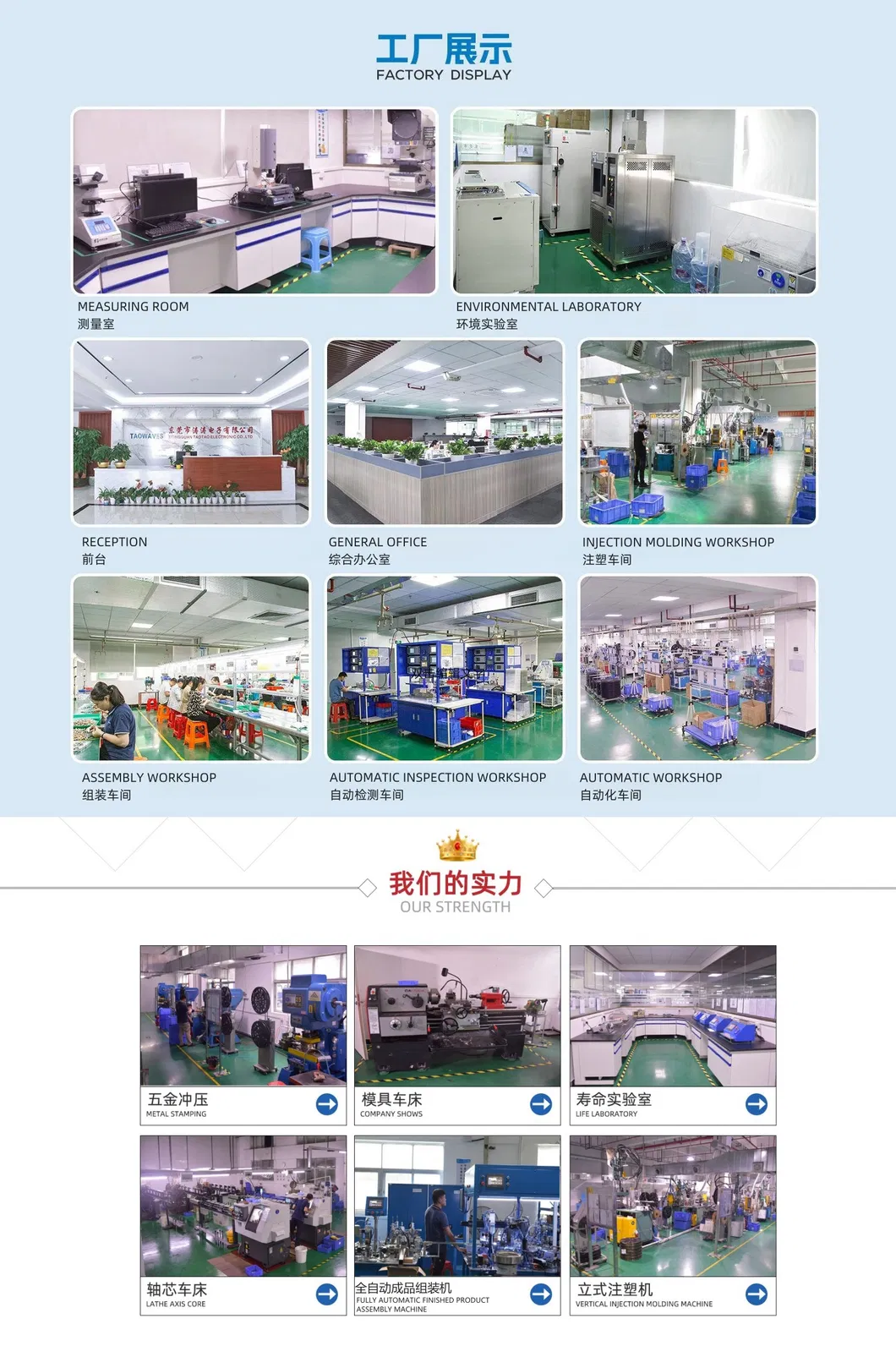

🏭 Our Factory
❓ Frequently Asked Questions
What are the core advantages of your manufacturing facility?
Our facility integrates mold manufacturing, plastic injection molding, and a lathe center. We produce 80% of our raw materials in-house, ensuring superior quality control and faster delivery speeds compared to industry peers.
Do you offer customization services for potentiometers?
Yes, we fully support customization. Customers are required to provide detailed technical drawings, intended usage, and specific performance requirements.
What are the standard payment terms and shipping ports?
We typically operate on Ex-work or FOB Shenzhen terms. Payment requires 30% in advance and 70% before shipment via T/T. Please note that the first transaction requires 100% advance payment.
What is the expected lead time for orders?
Sample preparation generally takes 3 working days, while mass production orders typically range between 7 to 15 working days.
Is it possible to request free samples?
We can provide a small quantity of samples free of charge; however, the customer is responsible for covering the air freight costs.
What is your Minimum Order Quantity (MOQ)?
Our standard MOQ is 2,000 pieces. For smaller batch orders, pricing may be adjusted accordingly to accommodate production scales.
