80A Latching Relay AC Power 24volt DC High Power Electric Meter Relay

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GW718C-80A

Phase

Suitable for Three Phase, Double Phase

Electricity Type

Number of Pole

Load

High Power Relay

Contact Form

3A/3b

Contact Material

Silver Alloy

Weight

170g

Rated Coil Voltage

9/12/24/48V

Origin

China

Product Description

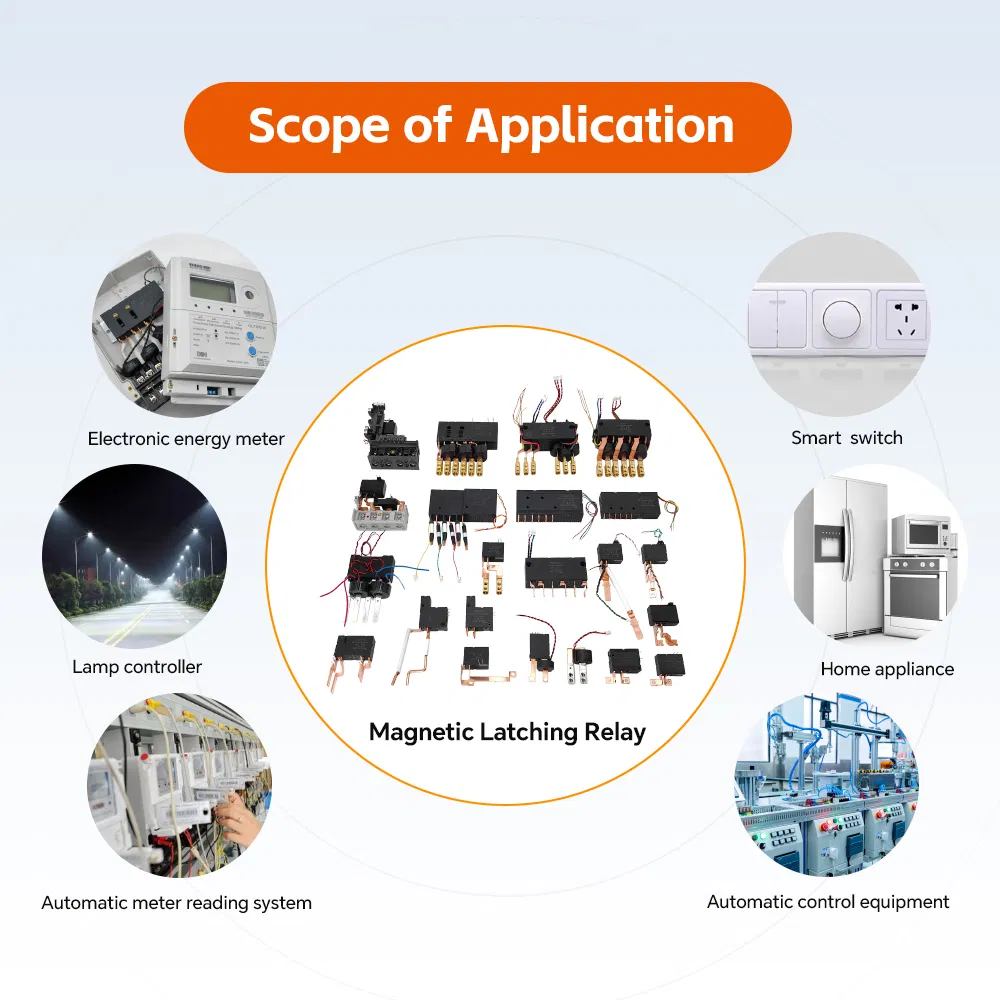

Application Notes:

01. Please reset the Relay when you use it. Because the relay may change status during delivery and installation.

02. Ensure rated voltage for disconnection/connection. Do not offer disconnect/connect voltage for the coil at the same time; duration should not exceed one minute.

03. GW-718C Series supports up to 120A switching current. Coil and maximum current can be adjusted, and attachments can be soldered according to requirements.

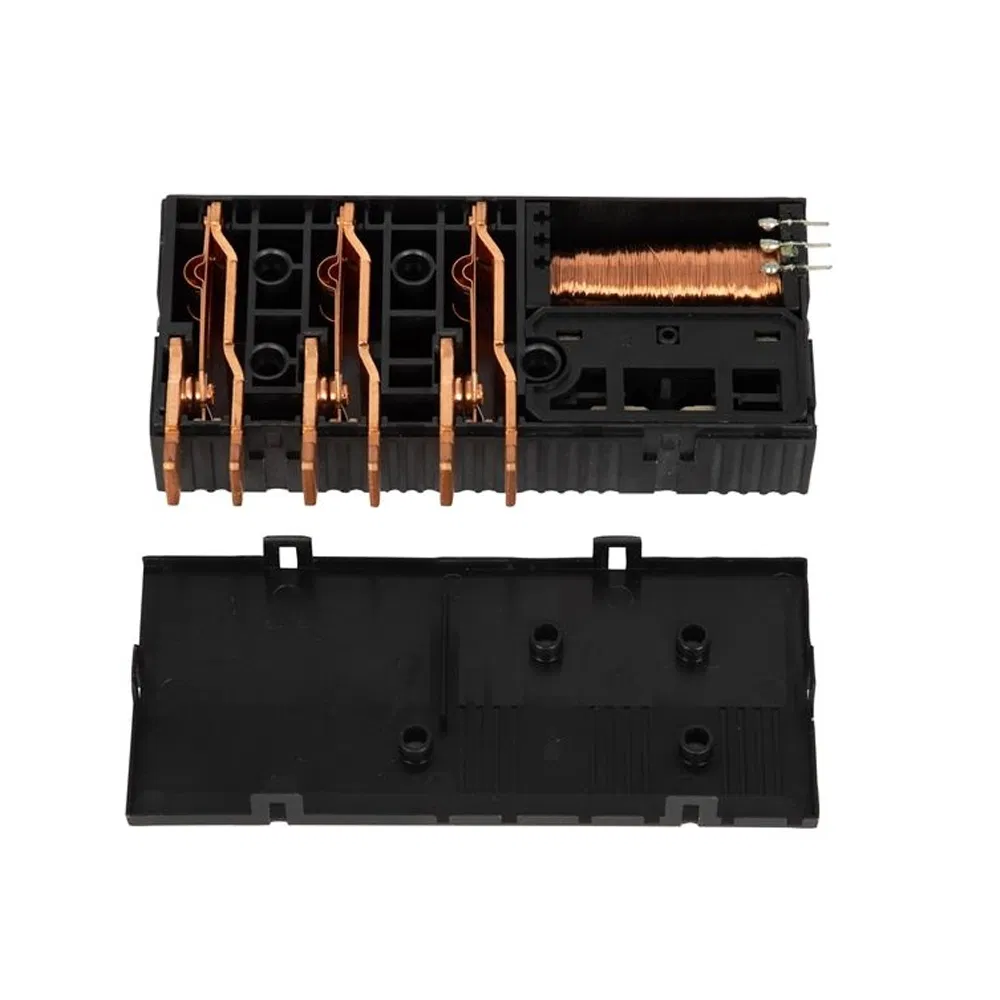

Product Parameters

Contact Specification

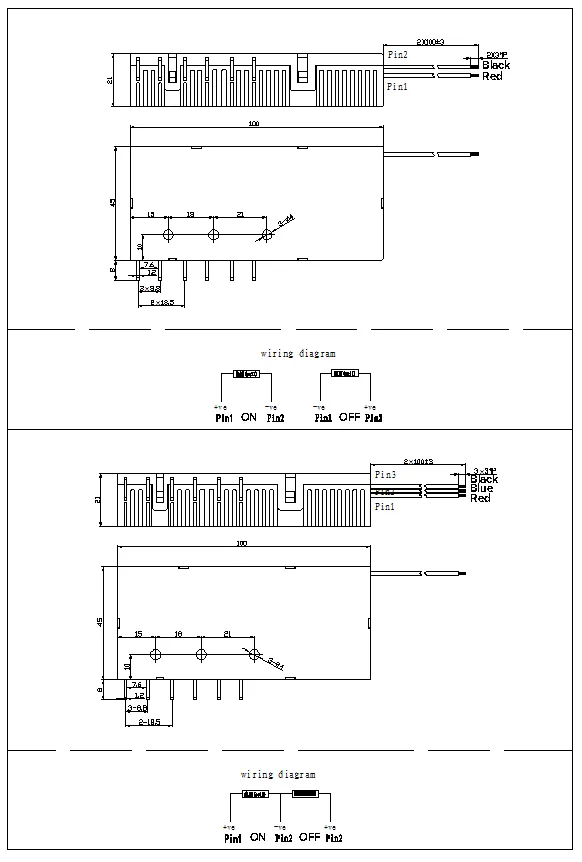

Dimensions (mm)	100×45×21
Contact Form	3A/3B
Contact Material	Silver Alloy
Max Switching Current	80A
Max Switching Voltage	28VDC / 250VAC
Max Switching Power	2240W / 20000VA

Coil Specification (20ºC)
Rated Coil Voltage	9VDC	12VDC	24VDC
Single Coil Resistance (±10%Ω)	32.4	57.6	230.4
Double Coil Resistance (±10%Ω)	16.2	28.8	115.2
Power Consumption	Single Coil 2.5W; Double Coil 5W
Pulse Duration	≥100ms

Characteristics
Ambient Temp	-40~+70ºC
Ambient Humidity	≤75%RH
Insulation Resistance	1000MΩ (500VDC)
Dielectric Strength (Contact to Coil)	4000 VAC 50/60Hz (1 Min)
Electrical Life	≥1*10⁴ OPS
Mechanical Life	≥1*10⁵ OPS

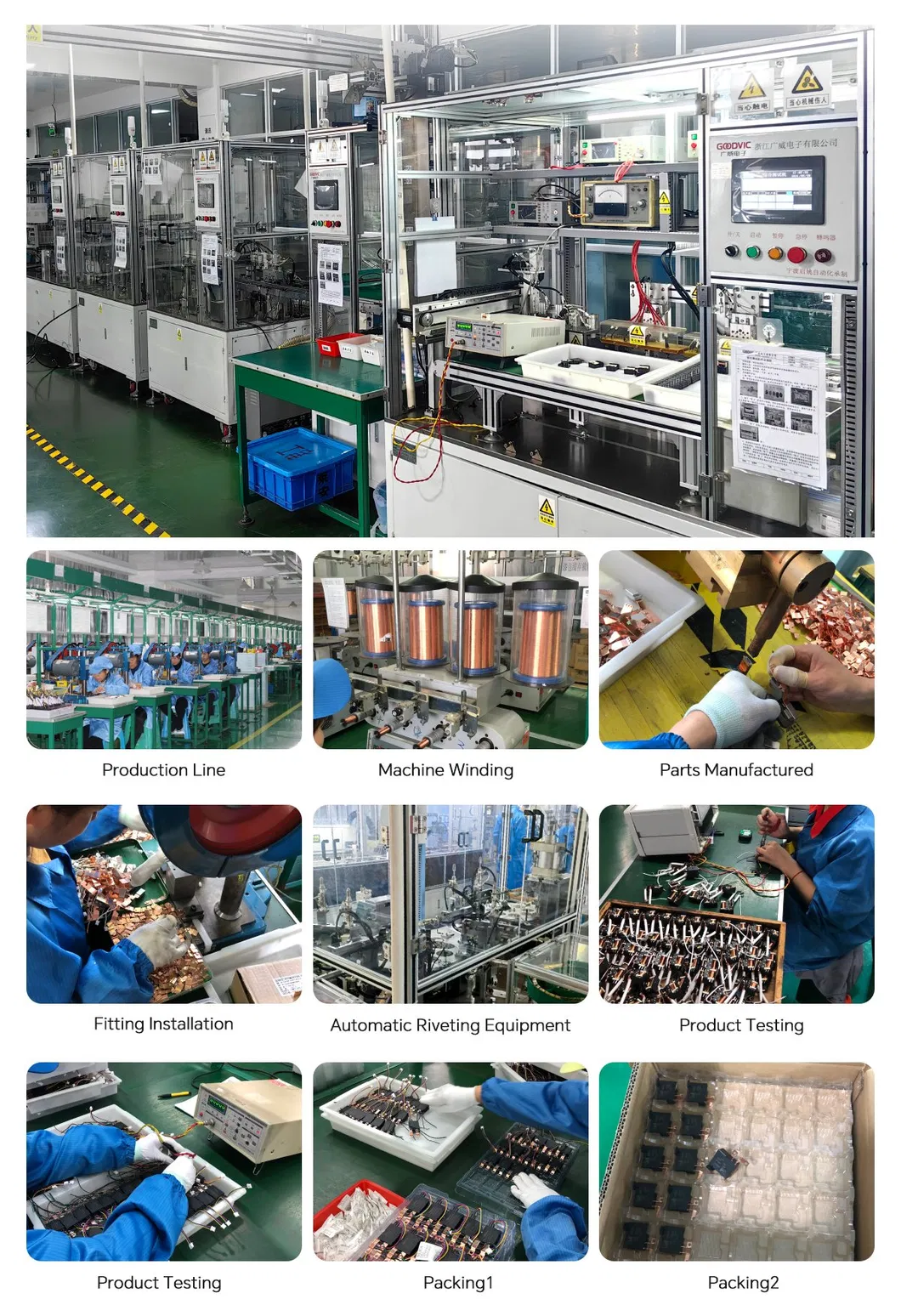

Production & Quality

Our Advantages

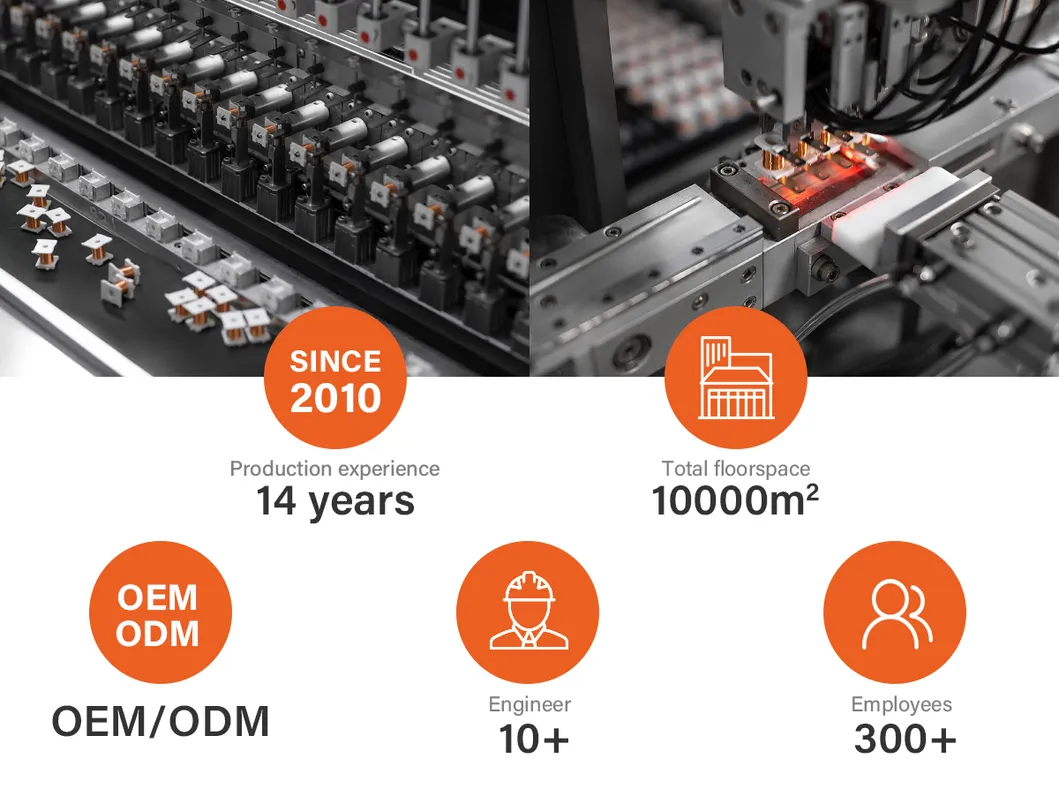

We are industry professionals specializing in automobile and magnetic latching relays. Our facility spans 10,000 square meters with a dedicated R&D team. We operate three automated production lines and over ten semi-automated lines, achieving a capacity of 15 million pieces per year.

Our quality management systems are certified under ISO9001:2008 and ISO14001:2004. Products conform to VDE, CQC, IEC62055-31, UC3, and RoHS standards.
