Product Description

📊 Basic Specifications

Model NO.

DGC40H65M2

Technology

Discrete Device / FS Trench

Material

Silicon

Package

TO-247

Type

N-Type Semiconductor

Voltage

650V

Current

40A

Production Capacity

500,000,000 Pieces/Year

HS Code

8541290000

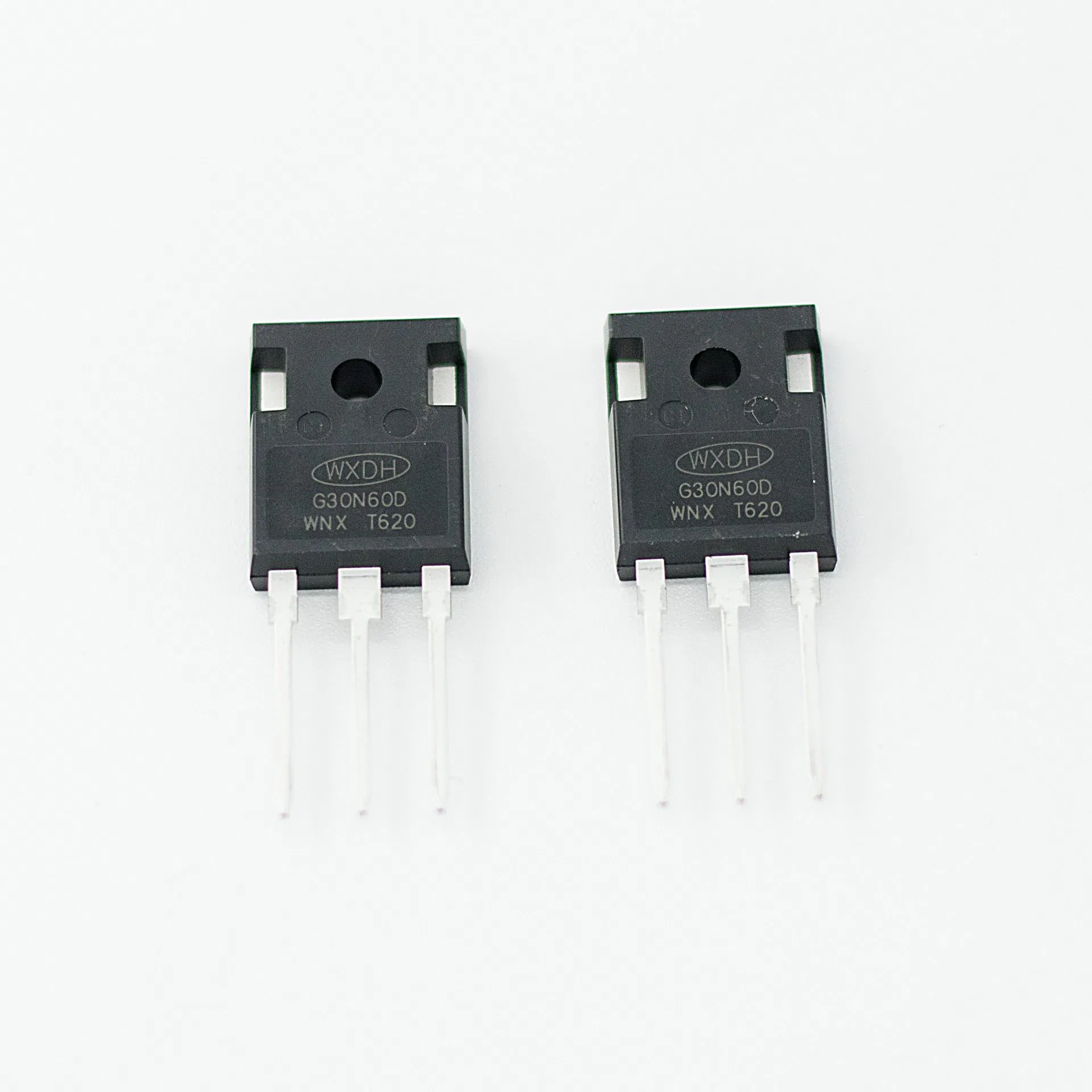

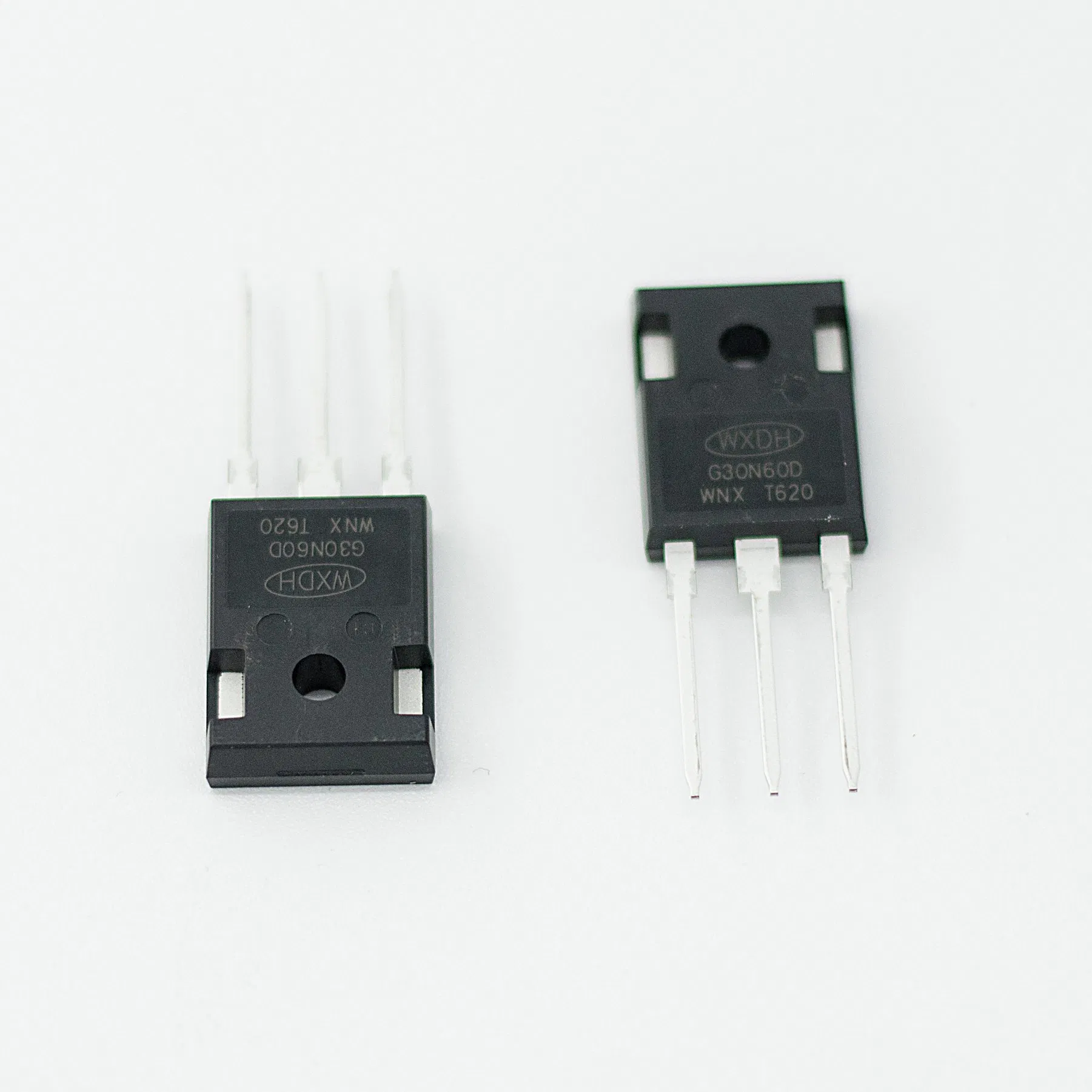

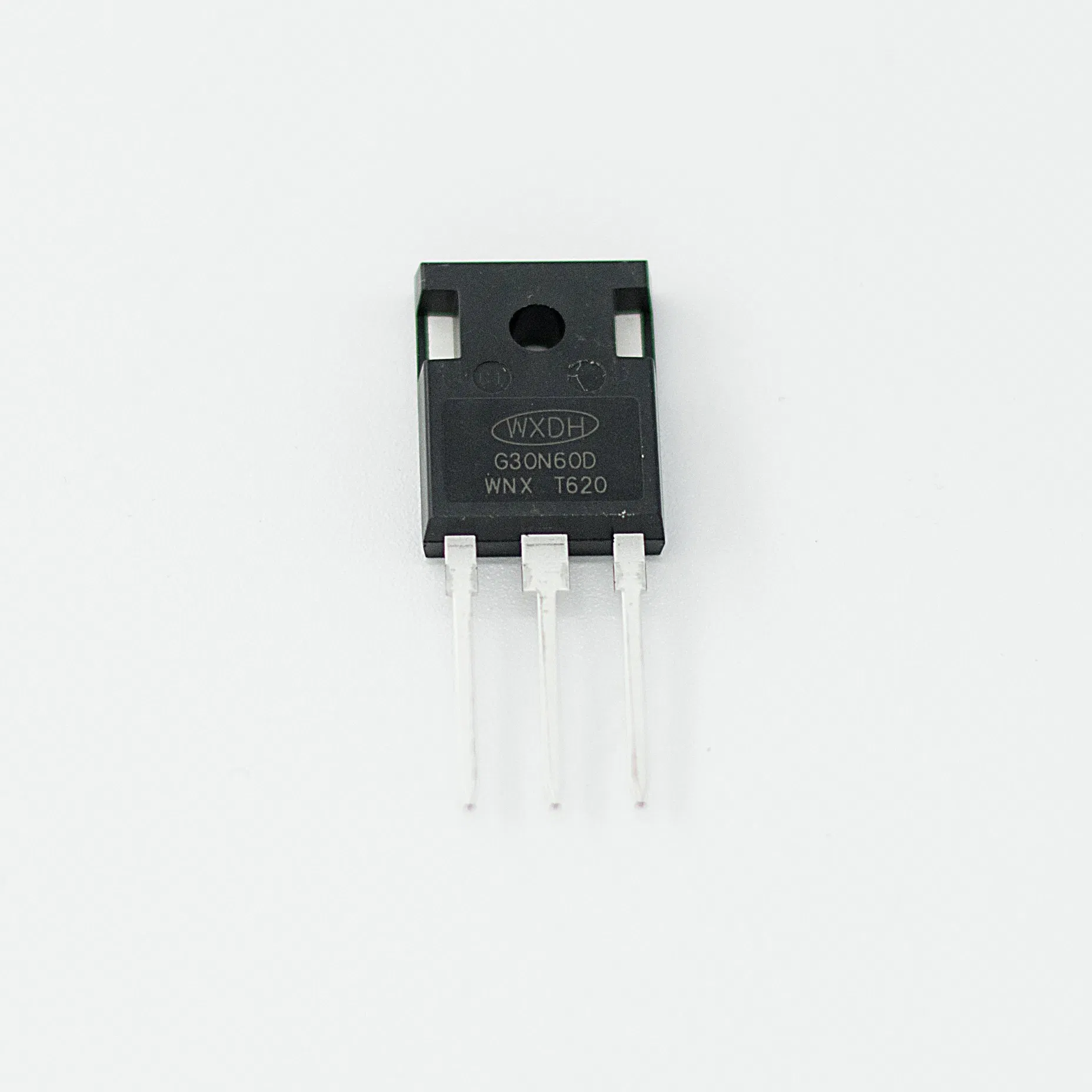

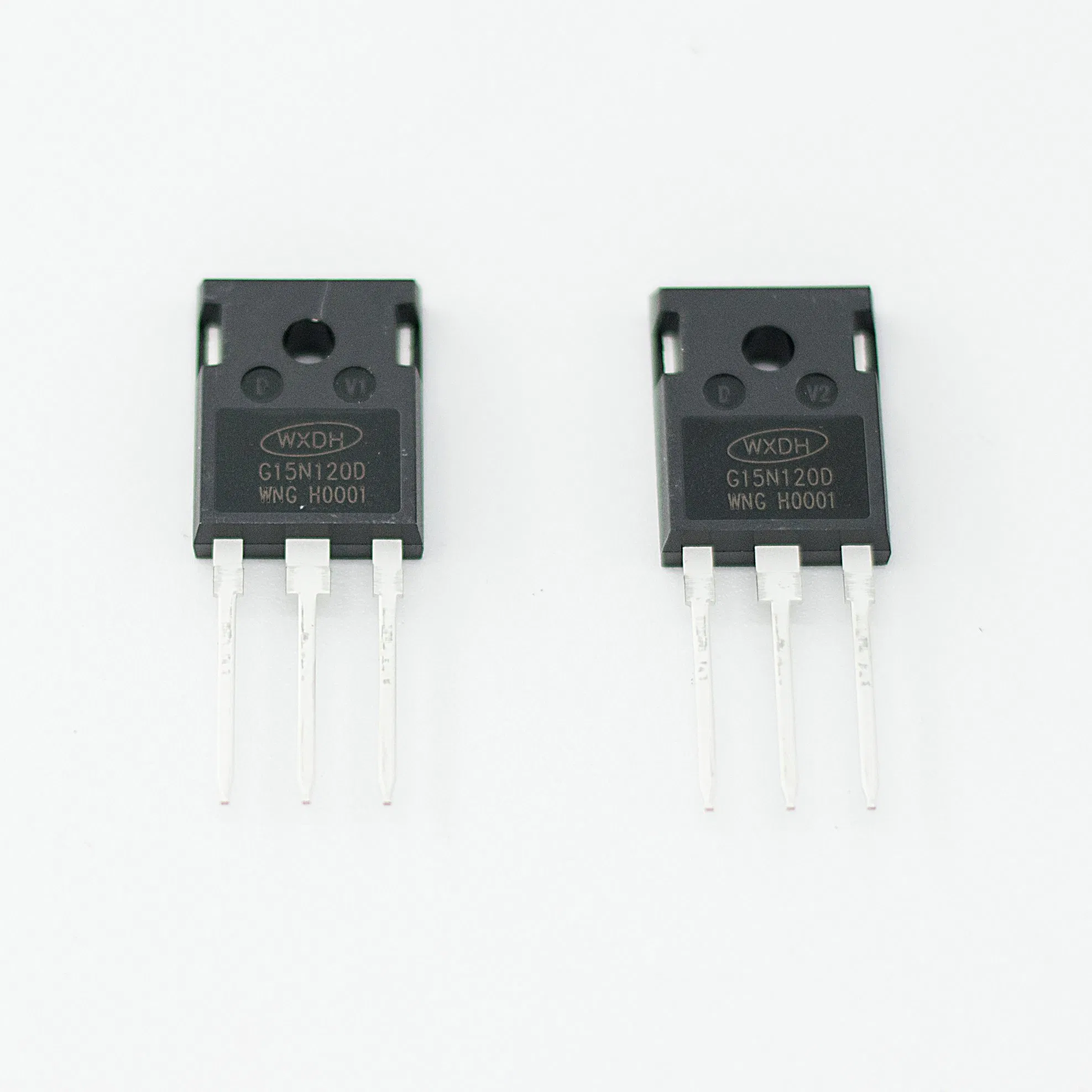

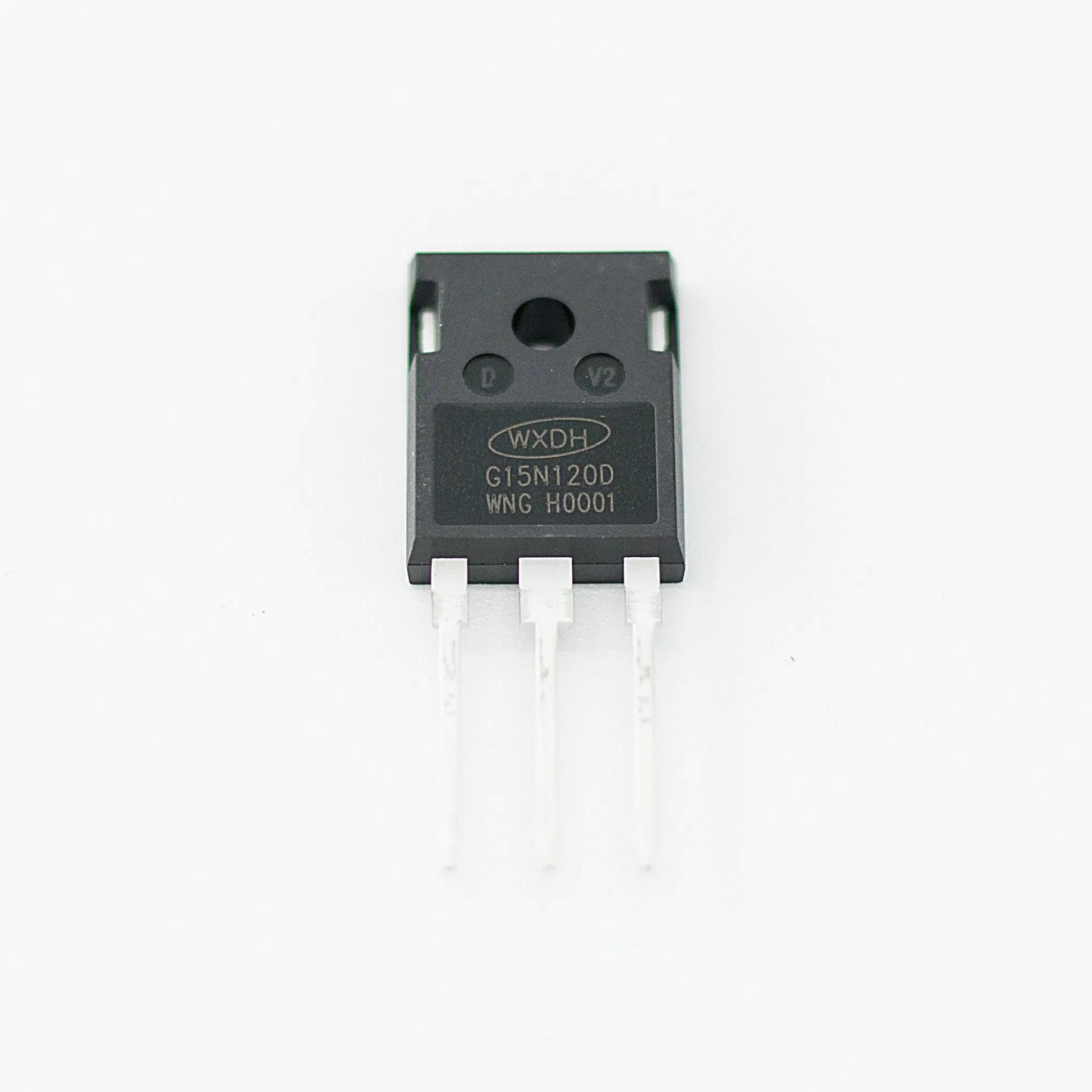

🖼️ Product Display

📝 Absolute Maximum Ratings

PARAMETER	SYMBOL	RATING	UNIT
Collector-Emitter Voltage	V_CES	650	V
Gate-Emitter Voltage	V_GES	±30	V
Collector Current (T=25ºC)	I_C	80	A
Collector Current (Tc=100ºC)	I_C	40	A
Pulsed Collector Current	I_CM	160	A
Diode Continuous Forward Current (TC=100°C)	I_F	20	A
Diode Pulsed Current	I_FM	80	A
Total Dissipation (TC=25ºC)	P_tot	280	W
Total Dissipation (TC=100ºC)	P_tot	140	W
Junction / Storage Temperature	T_j / T_stg	-45~150	ºC

⭐ Features

FS Trench Technology, Positive temperature coefficient
Low saturation voltage: VCE(sat), typ = 1.9V @ IC = 40A
Extremely enhanced avalanche capability

🚀 Applications

Welding Equipment
Three-level Inverter
Uninterruptible Power Supplies (UPS)

📦 Packaging & Logistics

Product Model	Package Type	RoHS Status	Packing Type	Quantity
DGC40H65M2	TO-247	Pb-free	PIPE	1000/box

Package Size

50.00cm * 20.00cm * 30.00cm

Gross Weight

15.000kg

📏 Package Outline & Dimensions

❓ Frequently Asked Questions

Q1: What is the primary technology used in the DGC40H65M2? The DGC40H65M2 utilizes Field Stop (FS) Trench Technology, which provides a positive temperature coefficient and efficient switching performance.

Q2: What are the maximum voltage and current ratings for this IGBT? The device is rated for a maximum Collector-Emitter voltage of 650V and a continuous collector current of 40A at 100°C (80A at 25°C).

Q3: Is the DGC40H65M2 suitable for high-power welding applications? Yes, welding is one of its primary applications due to its robust avalanche capability and low saturation voltage.

Q4: What is the standard packaging format for this model? It comes in a TO-247 package, typically distributed in pipes with a standard quantity of 1000 pieces per box.

Q5: What is the typical saturation voltage (VCE(sat))? The typical saturation voltage is 1.9V when tested at a collector current of 40A and a junction temperature of 25°C.

Q6: What is the operating temperature range for this transistor? The junction and storage temperature range is from -45ºC to 150ºC, making it suitable for various industrial environments.
