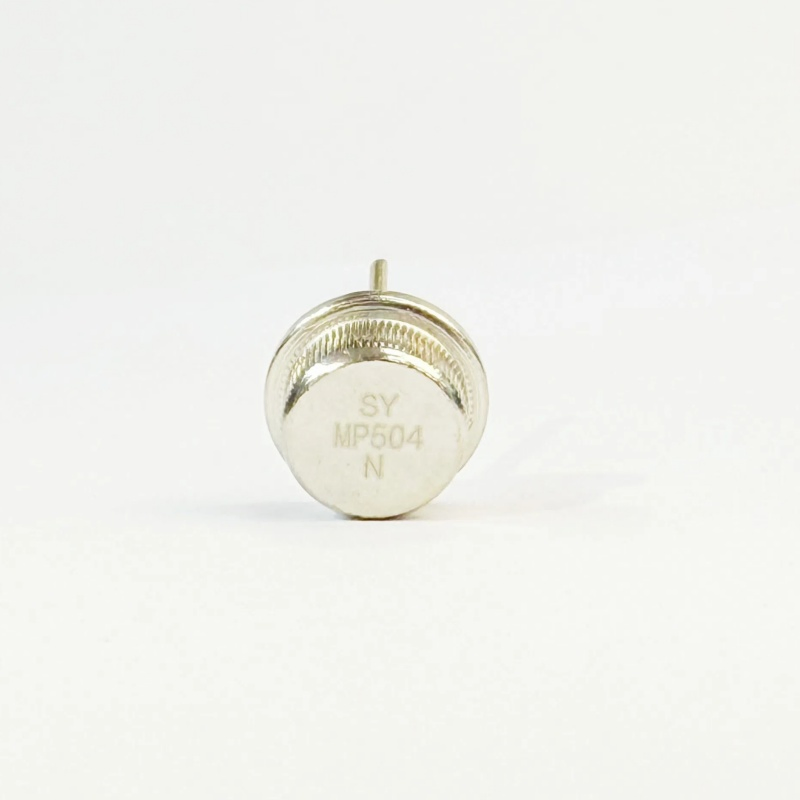

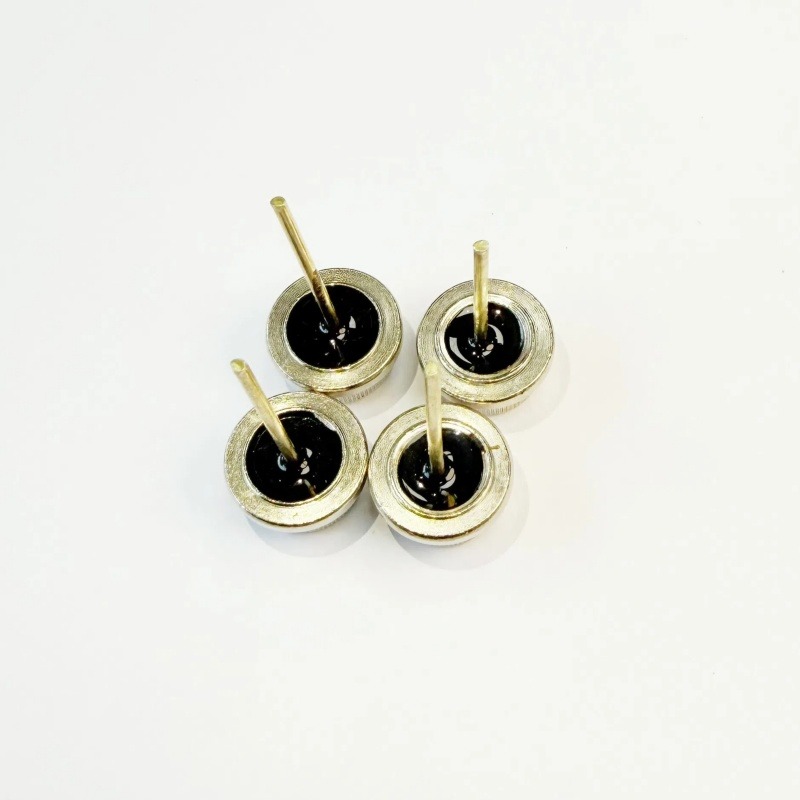

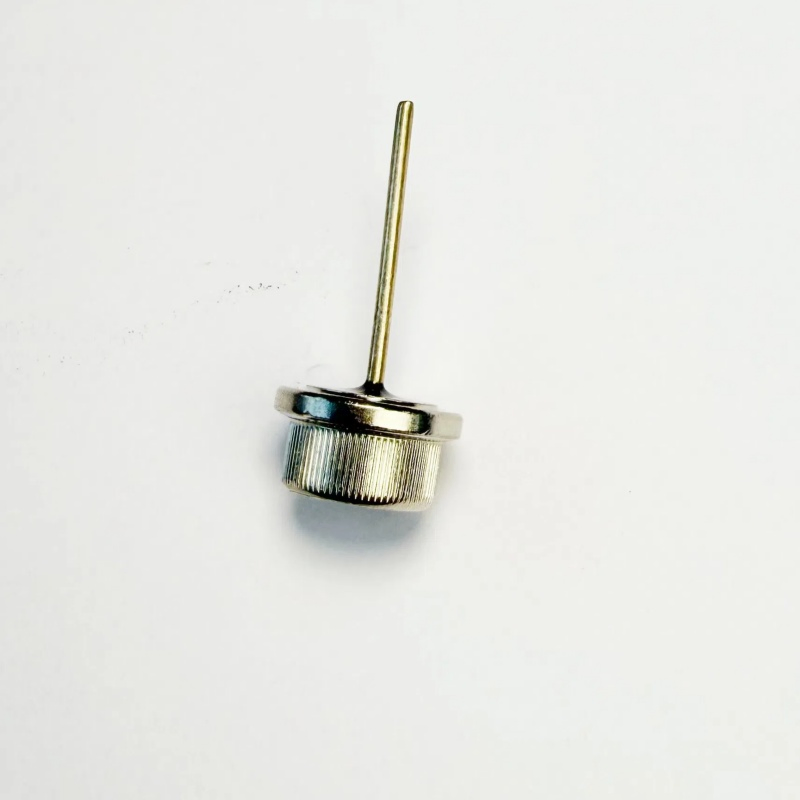

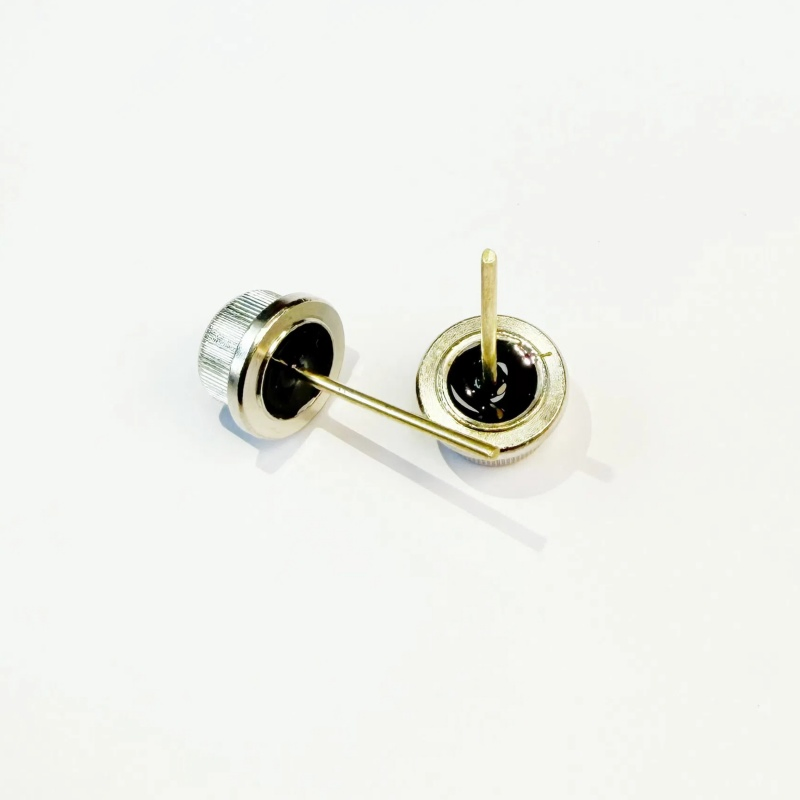

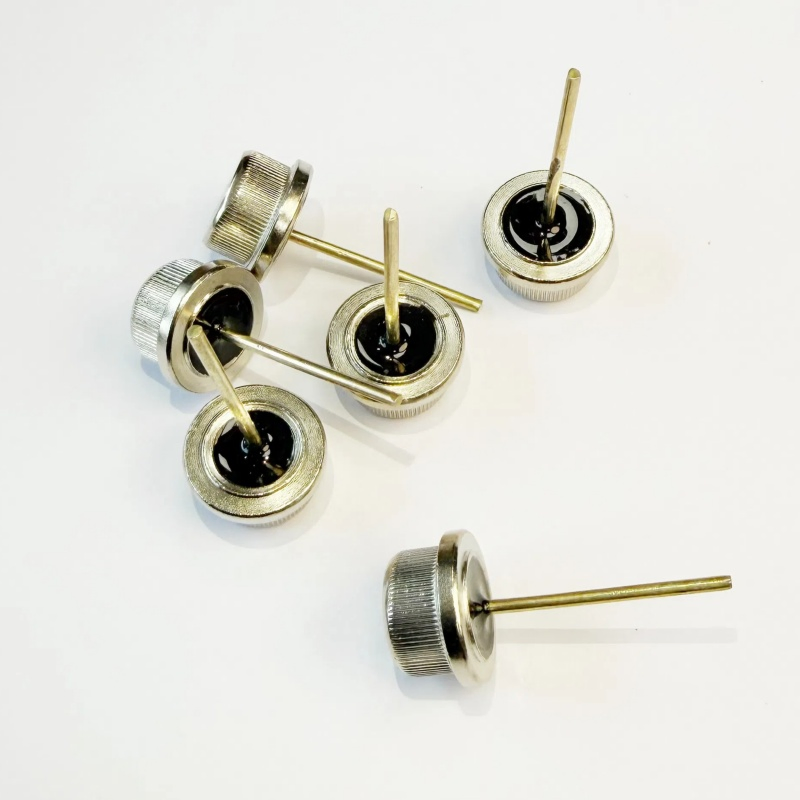

High-quality 25A, 35A, 200V, 400V, 600V Motor Pressfit Diode MP354 for automotive and industrial applications.
| Series | Part No | VRWM (V) | IF (A) | IFSM (A) | VF (V) | IRRM (μA) | Temperature |
|---|---|---|---|---|---|---|---|
| BLOCK | BD3005 | 50 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC |
| BD302 | 200 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD354 | 400 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD502 | 200 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| BD506 | 600 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| TIN-CAN | TC251 | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| TC254 | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC352 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC354 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC356 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MOTOR PRESS FIT | MP252 | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| MP254 | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP352 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |

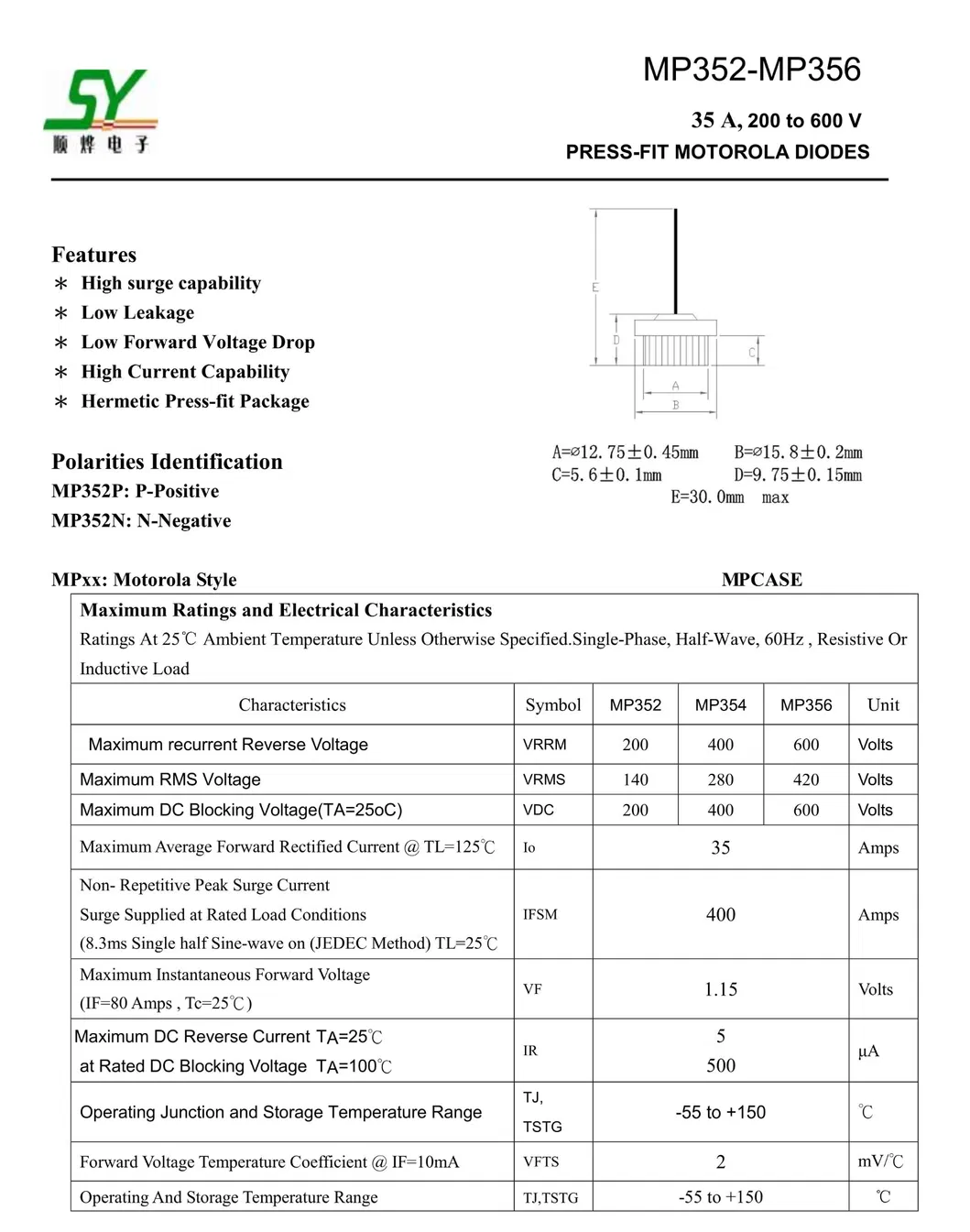

| MP354 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP506 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
