Customization: Available
Encapsulation Structure: SOP-8L
Application: POWER MANAGEMENT SWITCHES
Send Inquiry

Product Description

📋 BASIC SPECIFICATIONS
Model Number WAYON-WMS14P03T1
Certification RoHS, CE, ISO, CCC
Material Silicon
Structure Planar Enhancement Mode
Switching Loss Extremely Low
Production Capacity 10,000 Pieces/Day
⚡ PRODUCT DESCRIPTION

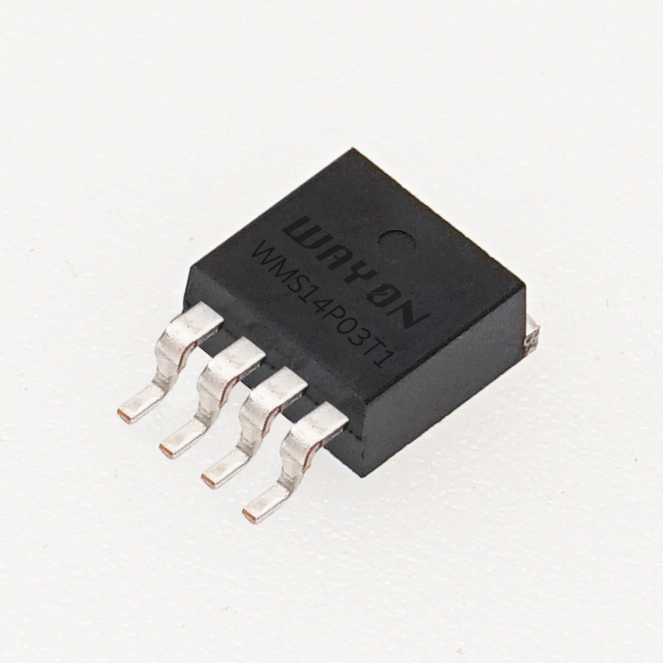

30V P-Channel Enhancement Mode Power MOSFET

The WMS14P03T1 uses advanced power trench technology that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.

Key Features:

  • VDS = -30V, ID = -14A
  • RDS(on) < 9.2mΩ @ VGS = -10V
  • RDS(on) < 14mΩ @ VGS = -4.5V
  • High Power and Current Handling Capability
  • Low Gate Charge
  • Excellent Stability and Uniformity
  • 100% Avalanche Tested
  • Built-in ESD Diode
Technical Parameter Specification Details
DescriptionP-Channel Trench MOSFET
PackageSOP-8L
VDS(V)-30
RDS(on) (Ω)@VGS=10V(max.)0.0092
ID (A)@TA=25ºC-14
PD (W)@TA=25ºC1.5
Qg (nC)30
VGS (V)±20
Product StatusMP
🖼️ PRODUCT GALLERY
Power MOSFET 1

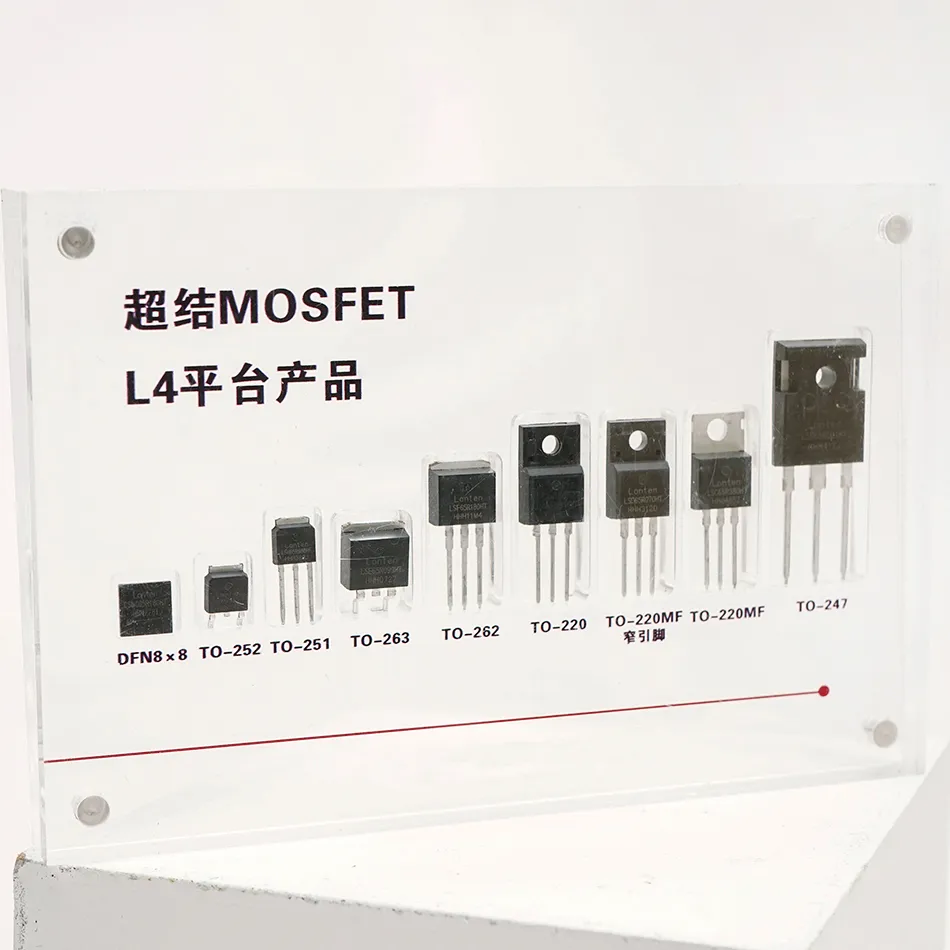

Power MOSFET 2
Power MOSFET 3

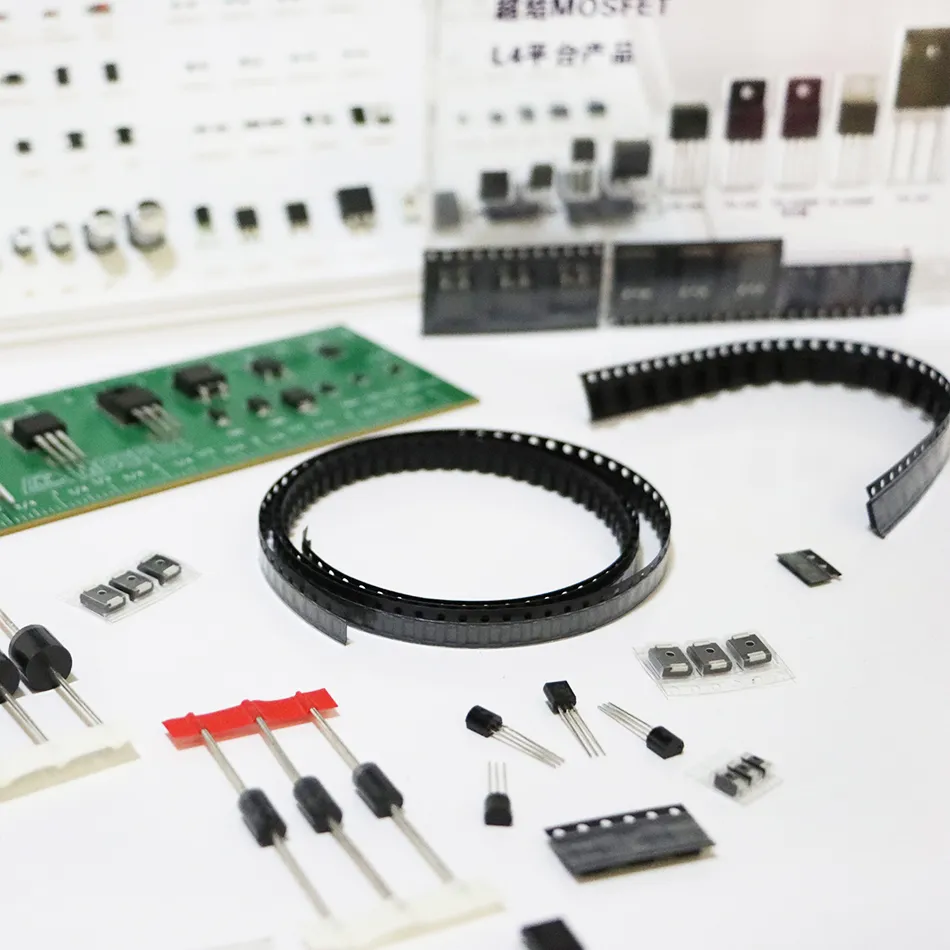

Power MOSFET 4
📈 TECHNICAL DATA SHEETS

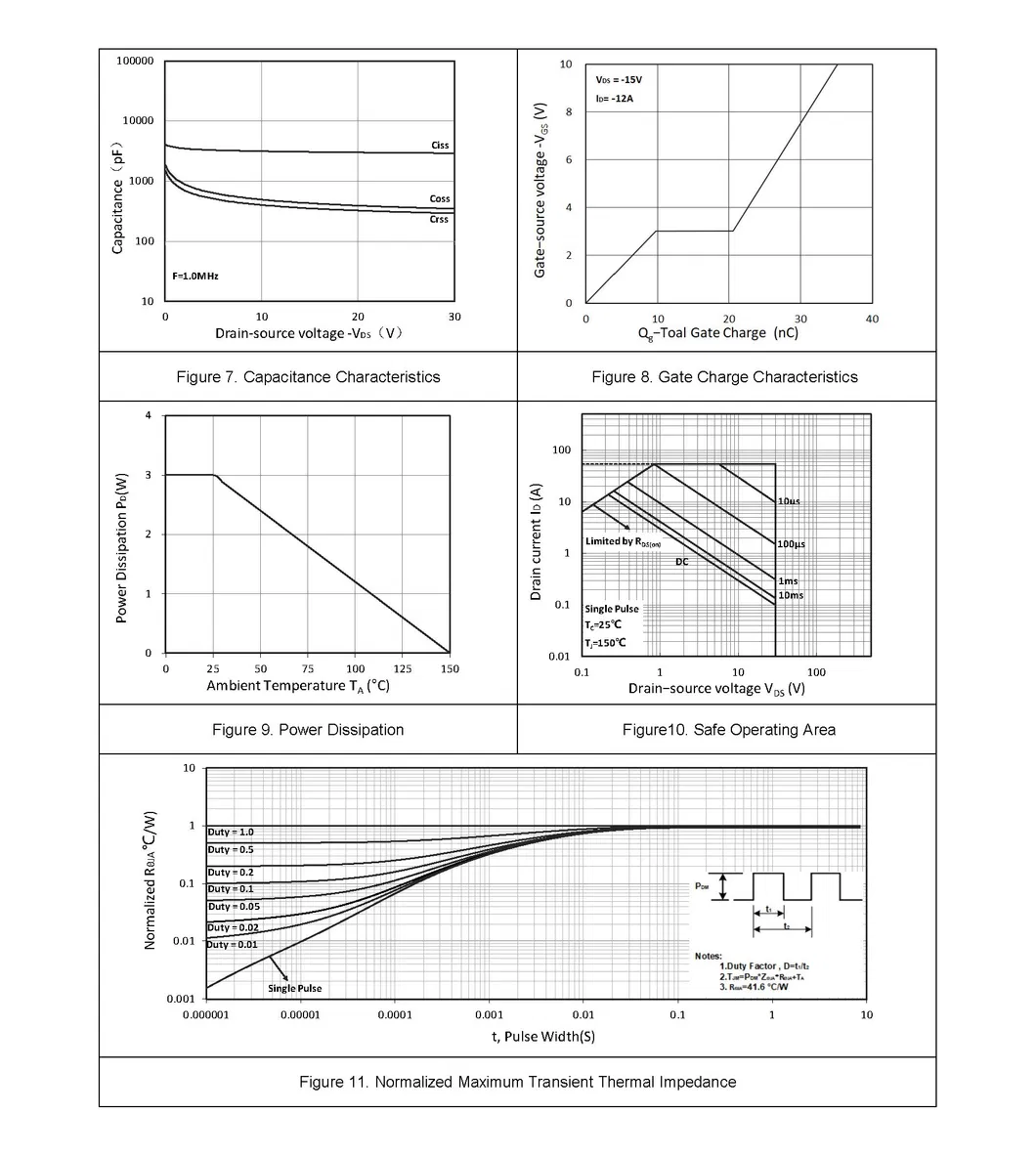

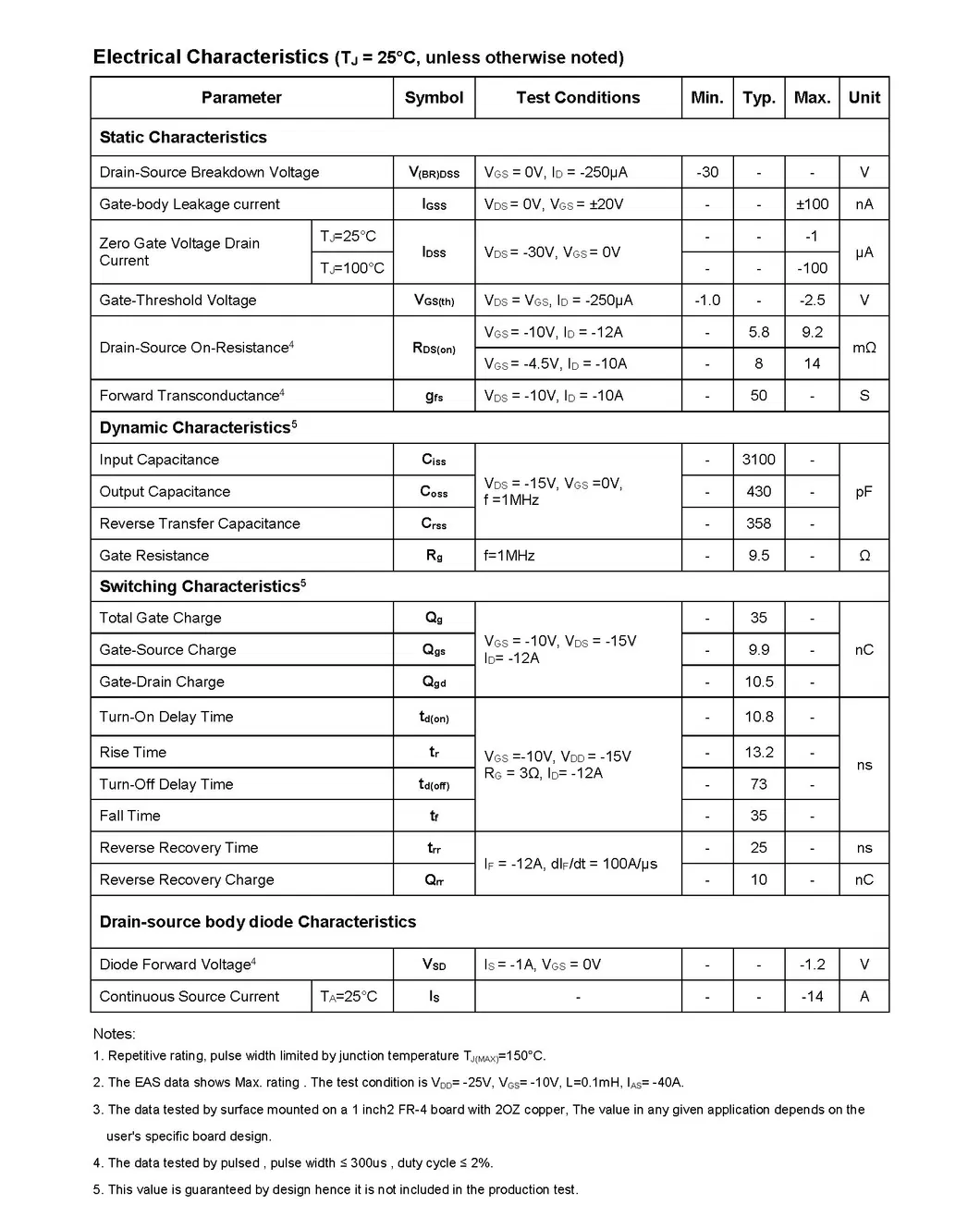

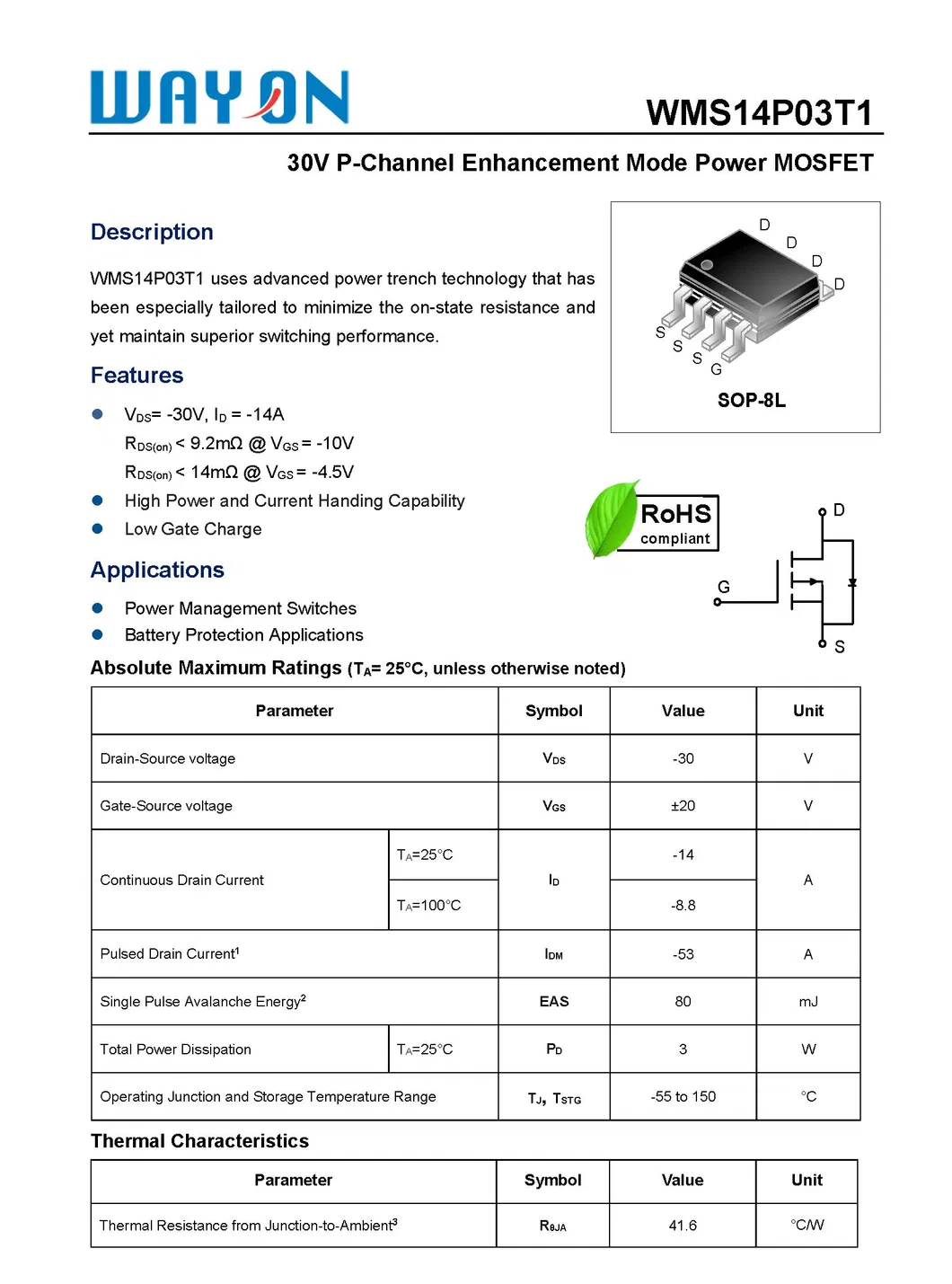

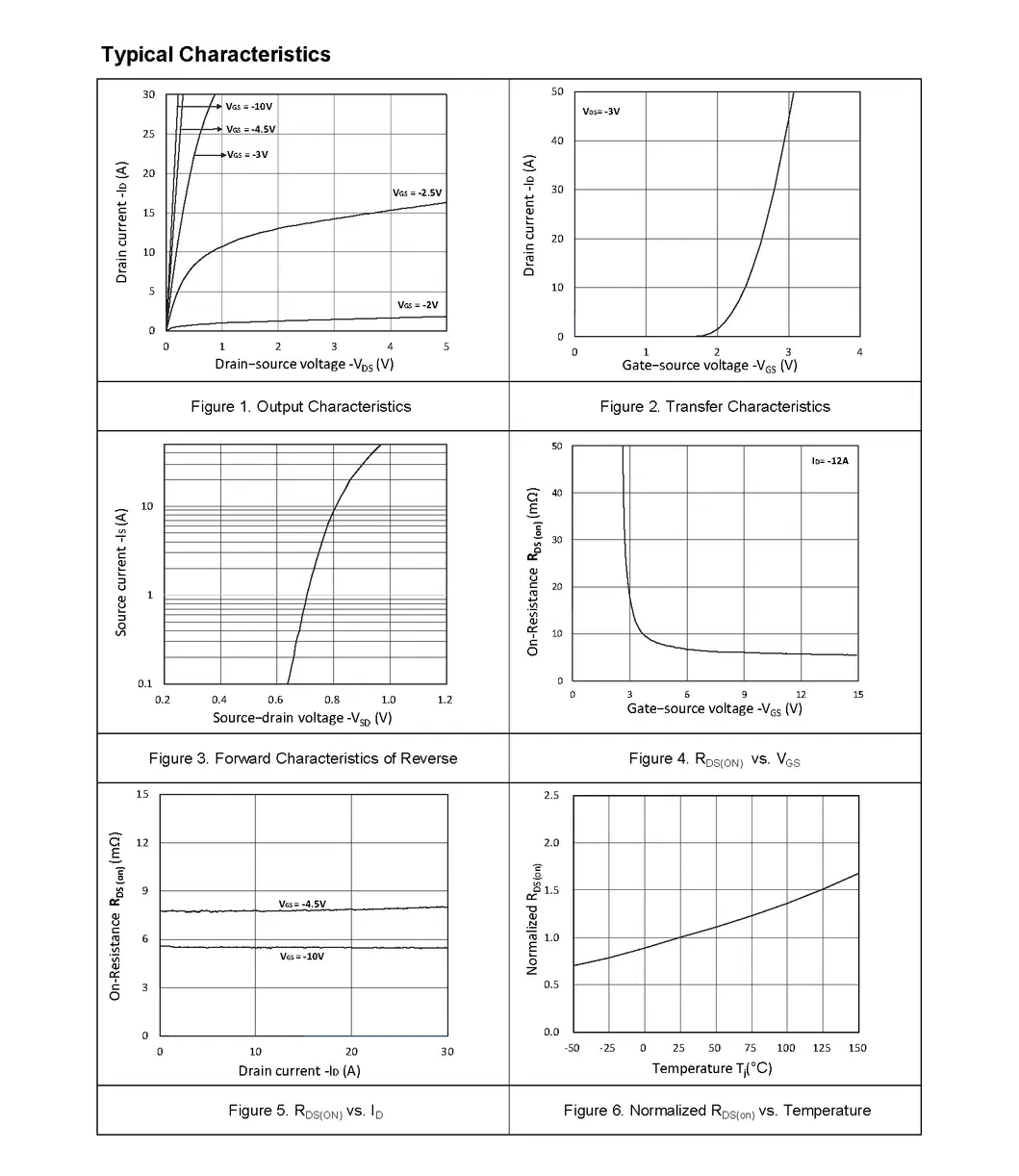

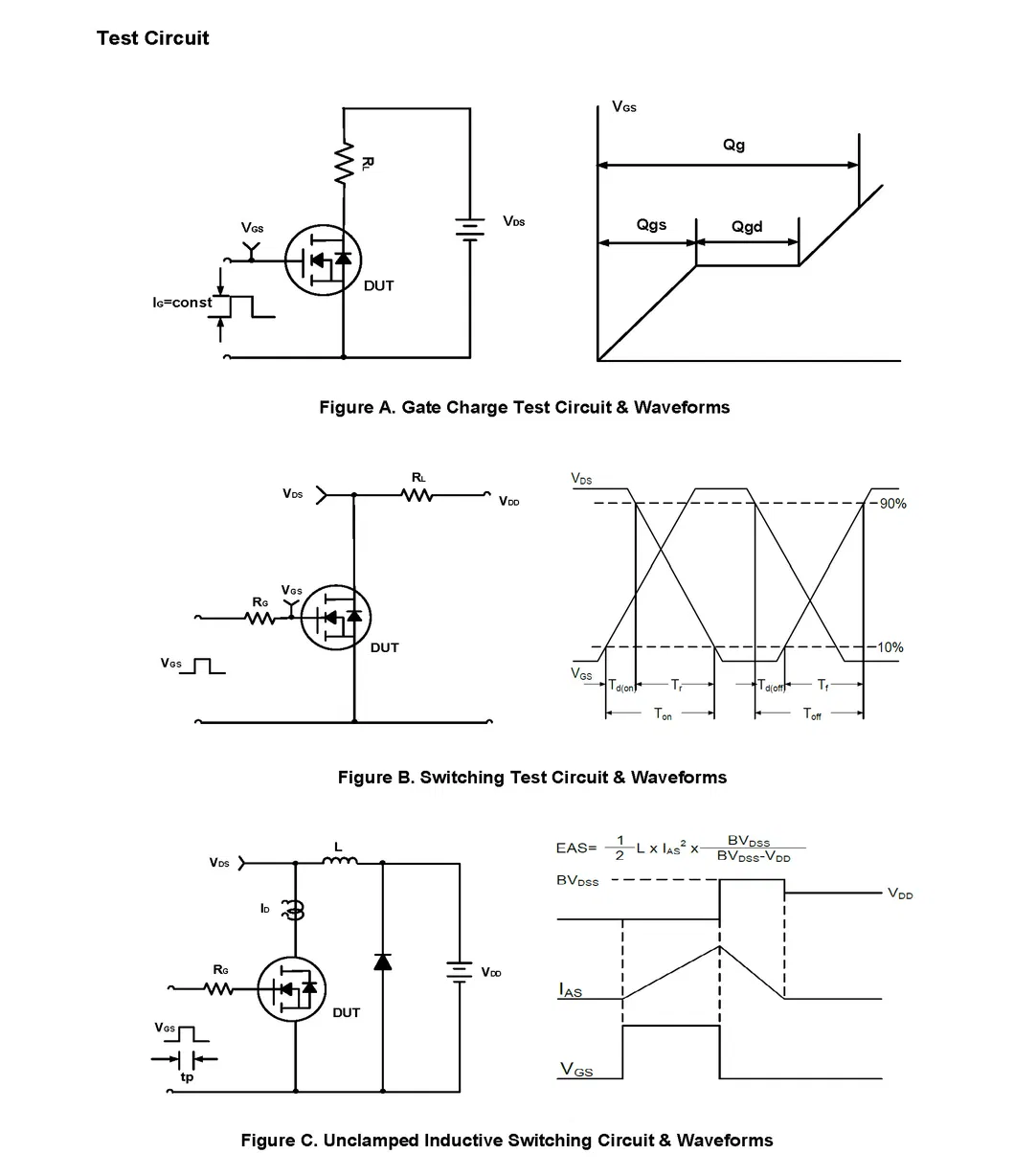

Data Sheet 1 Data Sheet 2 Data Sheet 3 Data Sheet 4 Data Sheet 5
🏢 CAPABILITIES & SERVICES

Our team provides professional semiconductor discrete device sales and technical services. Our core product lines include:

  • Rectification; Ultra-fast recovery; Schottky; Zener diode; Bridge rectifier
  • Low voltage MOS; super junction MOS
  • SIC diode; SIC MOSFET

Our solutions cover switched mode power supplies (SMPS), computing, motor control, consumer electronics, mobile devices, and automotive applications.

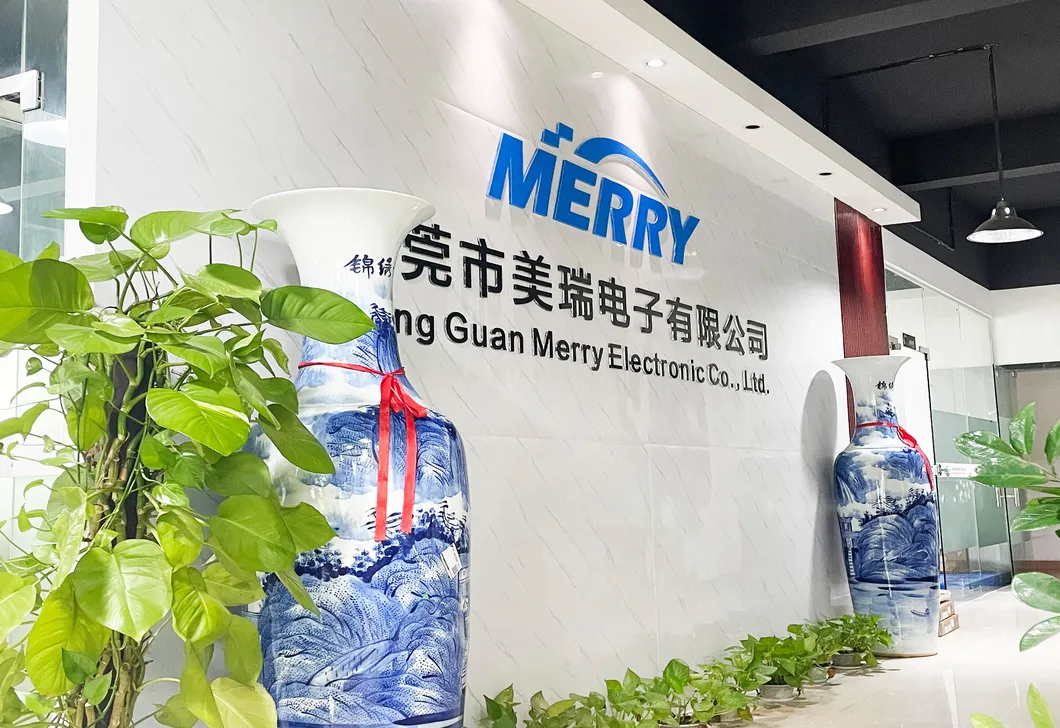

Factory Overview
Production Line
❓ FREQUENTLY ASKED QUESTIONS
What services do you provide?
We provide turnkey solutions including RD, PCB fabrication, SMT, testing, and other value-added services.
What are your main application industries?
Our services mainly cater to industries including Medical, Automotive, Energy, Metering/Measurements, and Consumer Electronics.
Can we inspect quality during production?
Yes, we are transparent with our production process. Customers are welcome to inspect our processes and check quality in-house.
How do you protect customer design information?
We are willing to sign NDAs governed by local laws to ensure all customer data is kept at a high confidential level.
What is the standard delivery term?
We offer various delivery terms including EXW, FCA, FOB, and DDU based on the specific requirements of each quote.
Do you have a minimum order quantity (MOQ)?
No, we do not have a strict MOQ requirement. We support projects starting from initial prototypes to full mass production.
