📋 Overview
Model NO.
Way-on-WMQ40N03T1
Features
100% Avalanche Tested, Built-in ESD Diode
Capacity
10000 Pieces/Day
Product Description

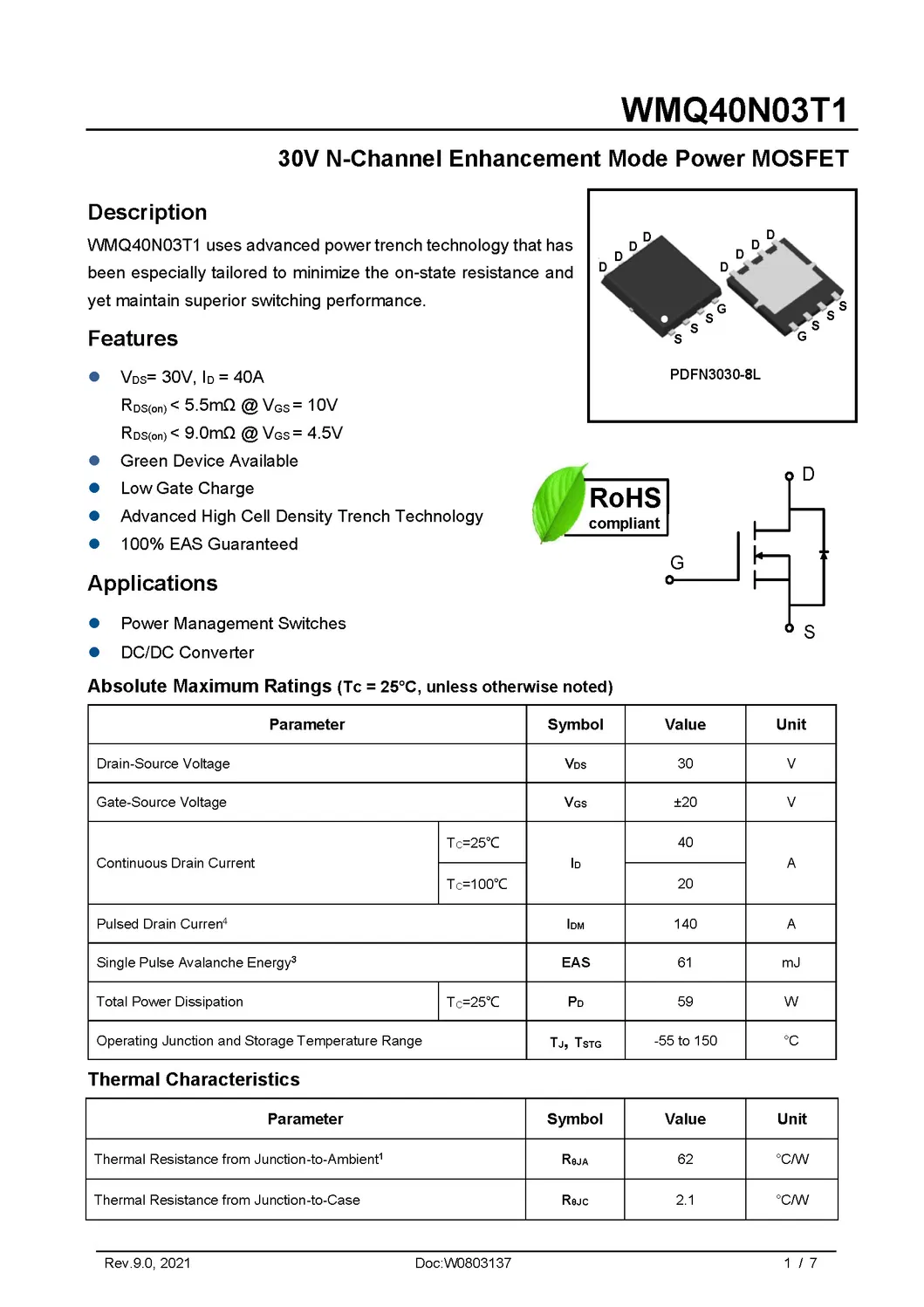

30V N-Channel Enhancement Mode Power MOSFET power trench technology Green Device Available Way-on-WMQ40N03T1
WMQ40N03T1 uses advanced power trench technology that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.
⭐ Key Features :
- Green Device Available
- VDS= 30V, ID = 40A
- RDS(on) < 5.5mΩ @ VGS = 10V
- RDS(on) < 9.0mΩ @ VGS = 4.5V
- Low Gate Charge
- Advanced High Cell Density Trench Technology
- 100% EAS Guaranteed
Applications
- Power Management Switches
- DC/DC Converter
- Switch Mode Power Supply (SMPS)
- Power Factor Correction (PFC)
- Uninterruptible Power Supply (UPS)
- AC to DC Converters
- Telecom, TV Power & LED Lighting Power

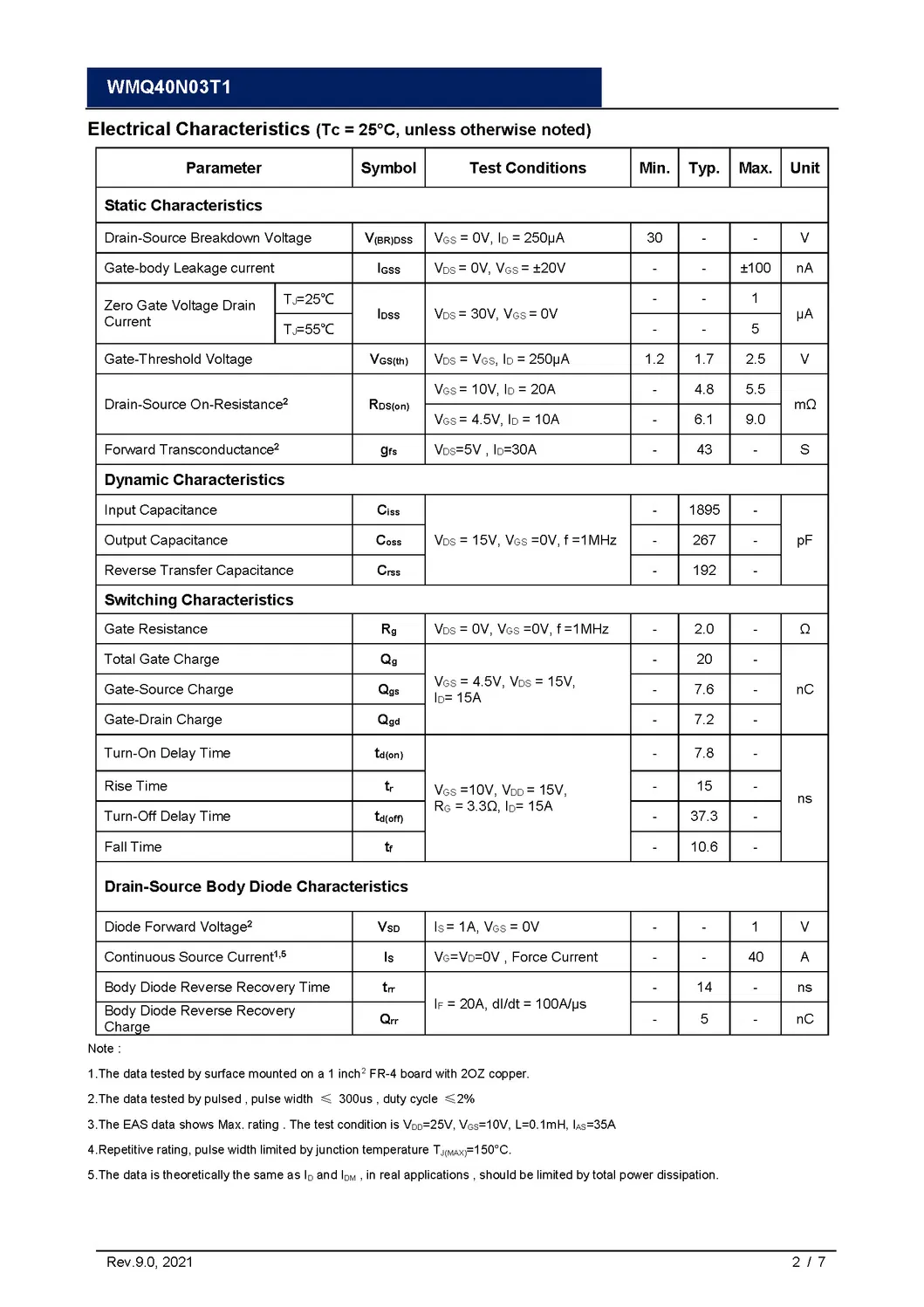

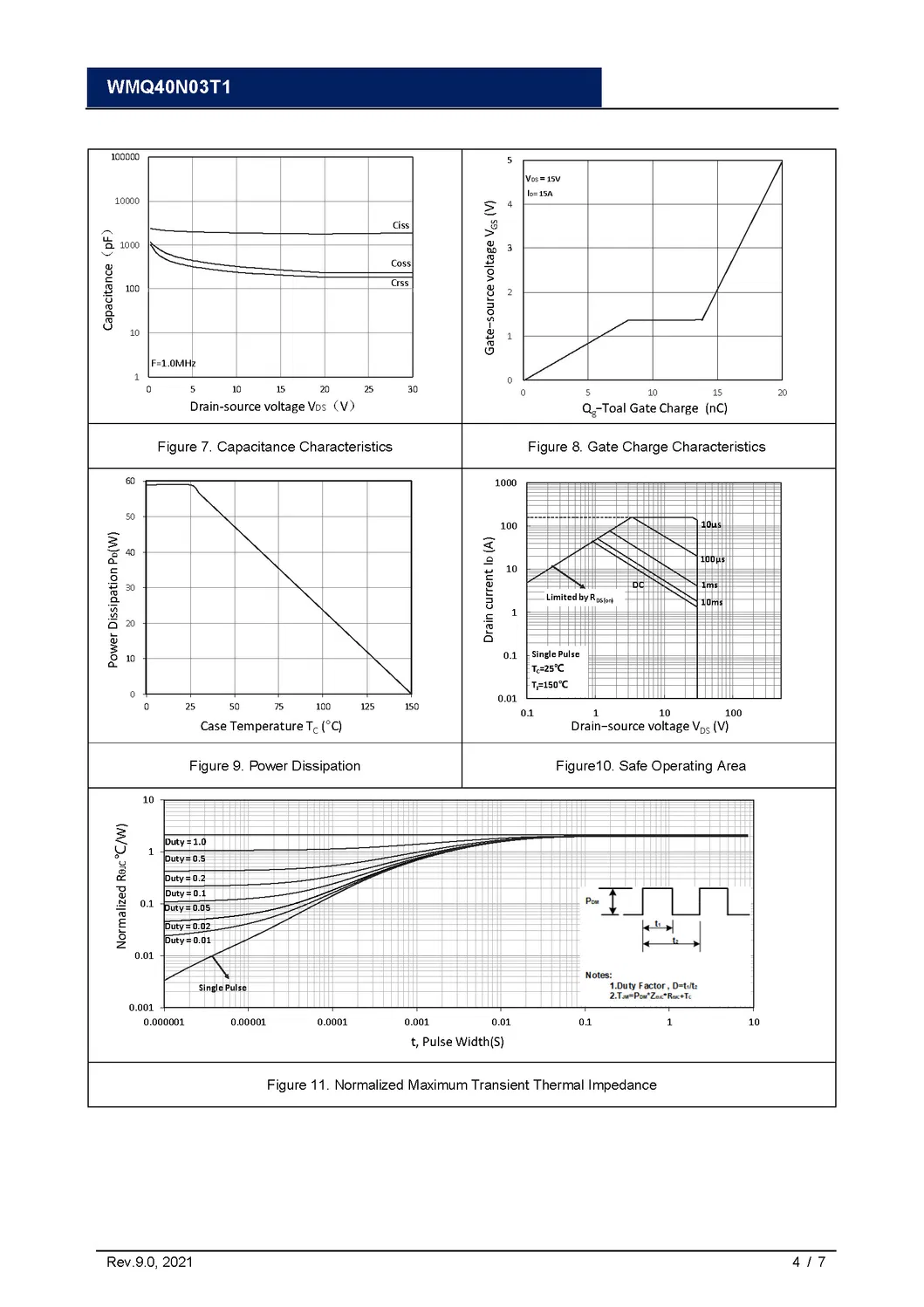

Technical Data
| Parameter |
Value |

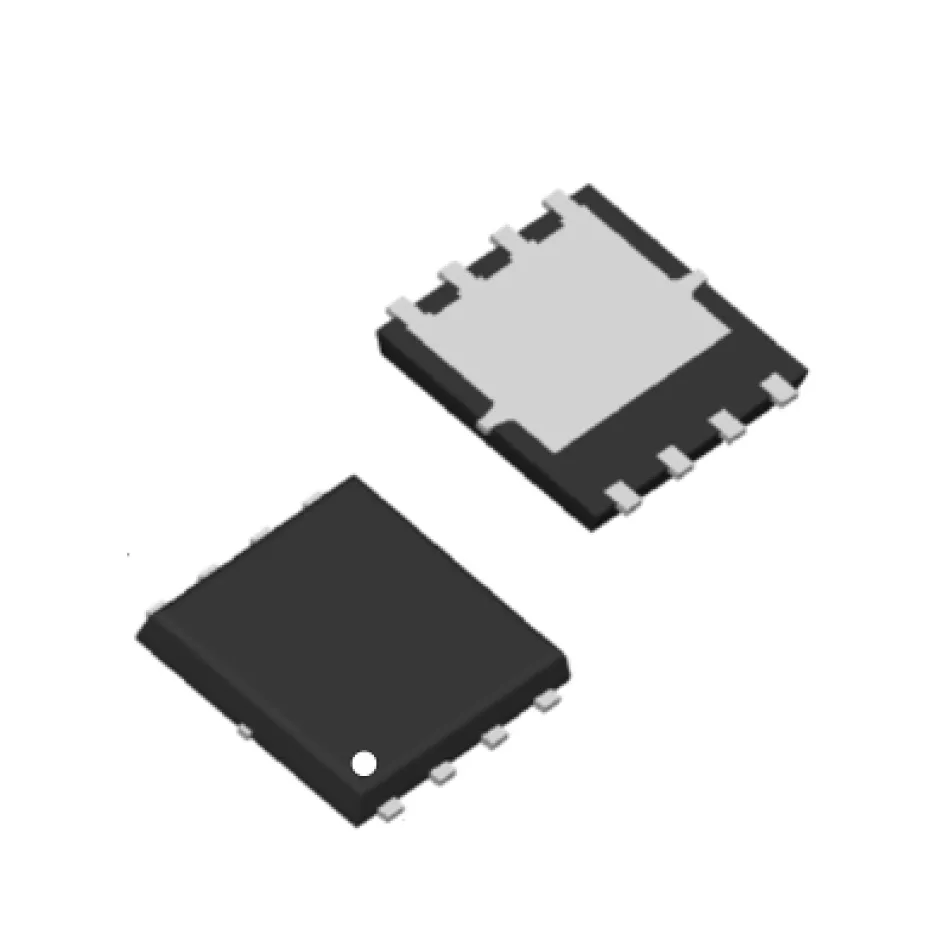

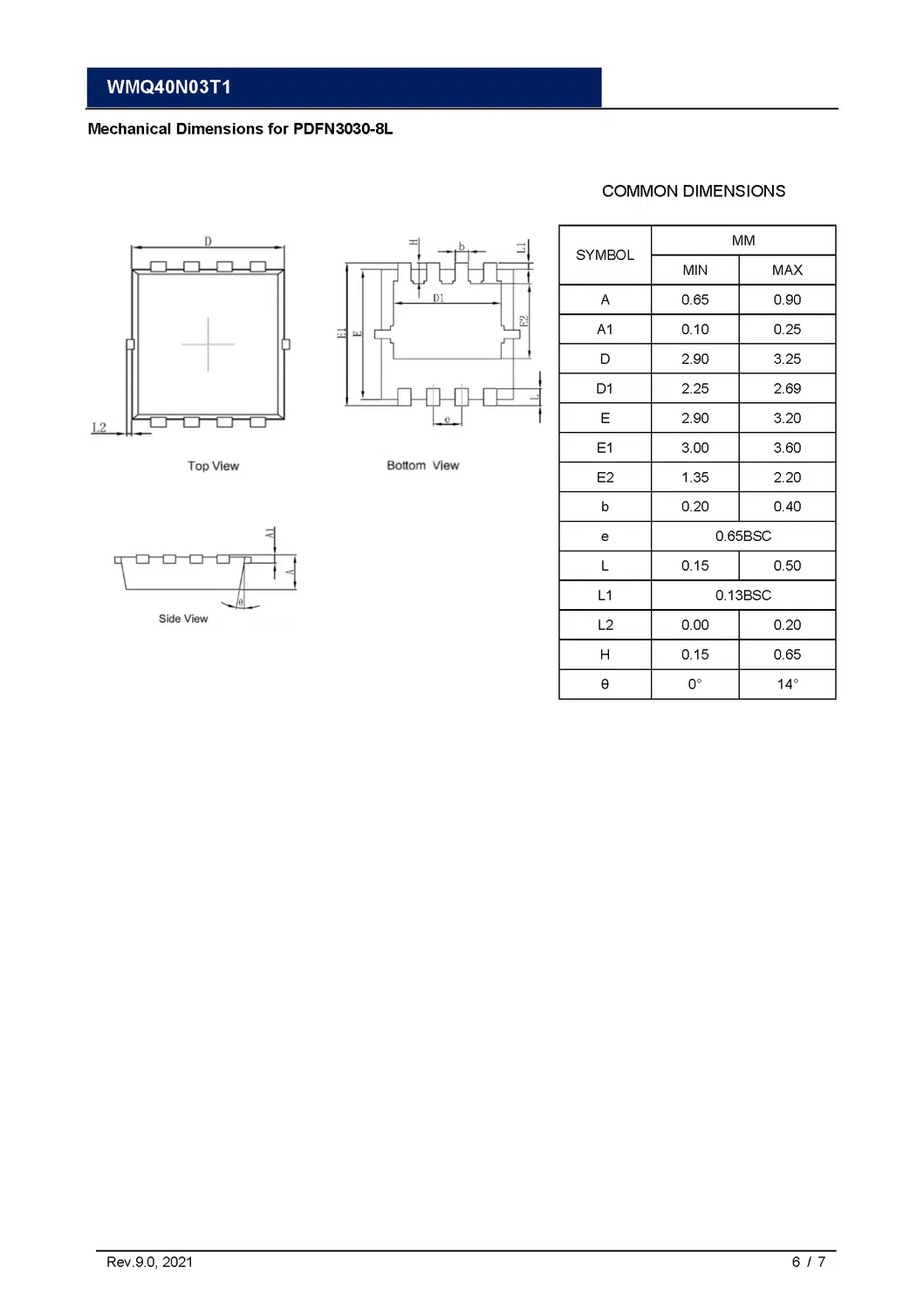

| Package | PDFN3*3-8L |
| VDS(V) | 30 |
| Vgs Max(V) | ±20 |
| ID(A)@TA=25ºC(Max.) | 40 |
| VGS(th)(V)(Typ.) | 1.7 |
| Rds(on)(mΩ)@Vgs=10V(Max.) | 5.5 |
| Rds(on)(mΩ)@Vgs=4.5V(Max.) | 9 |
Industry Solutions
Our product lines help achieve highly innovative and outstanding performance solutions across various sectors:
- Switched mode power supplies (SMPS) & Computing
- Motor control and drive systems
- Consumer electronics & Mobile devices
- Lighting solutions & Automotive applications
Production & Quality Control
