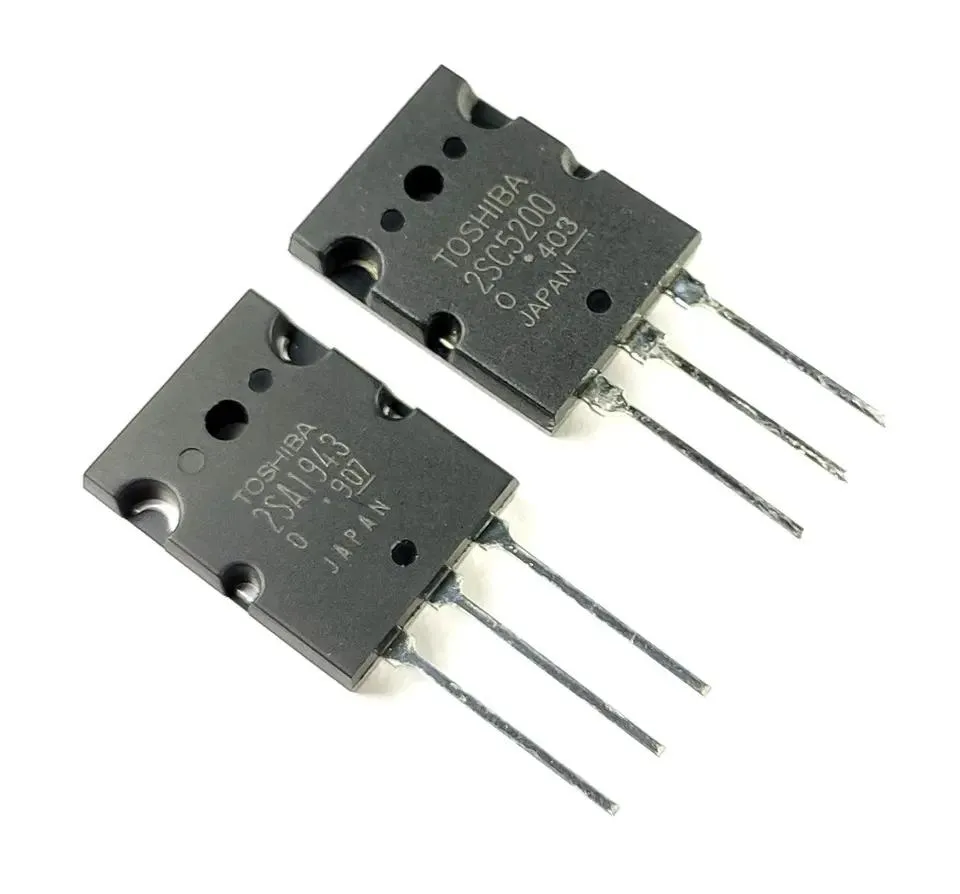

Original 2sc5200 2SA1943 Pair Bipolar (BJT) Transistor NPN 230V 15A 30MHz 150W

1 / 5

Original 2sc5200 2SA1943 Pair Bipolar (BJT) Transistor NPN 230V 15A 30MHz 150W

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

2SC5200

Installation

Plug-in Triode

Power Level

Medium Power

Material

Silicon

Transistor Type

NPN

Current - Collector (IC)

15 A

Voltage - Breakdown

230 V

Vce Saturation

3V @ 800mA, 8A

Power - Max

150 W

Frequency

30MHz

Operating Temp

150°C (Tj)

Mounting Type

Through Hole

📦 Packaging & Delivery

Package Size

10.00cm * 10.00cm * 10.00cm

Package Gross Weight

1.000kg

Transport Package

Standard

Production Capacity

10000PCS/Day

🔍 Product Description

Original 2SC5200 2SA1943 pair Bipolar (BJT) Transistor NPN 230V 15A 30MHz 150W | Professional Component Solutions

TYPE	DESCRIPTION
Category	Discrete Semiconductor Products / Transistors / Bipolar (BJT)
Package	Tube
Transistor Type	NPN
Current - Collector (Ic) (Max)	15 A
Voltage - Collector Emitter Breakdown (Max)	230 V
Vce Saturation (Max) @ Ib, Ic	3V @ 800mA, 8A
Current - Collector Cutoff (Max)	5µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	55 @ 1A, 5V
Power - Max	150 W
Frequency - Transition	30MHz
Operating Temperature	150°C (TJ)
Package / Case	TO-264-3, TO-264AA
Supplier Device Package	TO-264

❓ Frequently Asked Questions

1 What services are available for these components?

We provide turnkey solutions including R&D, PCB fabrication, SMT, testing, and other value-added services for electronic components.

2 What are the main applications of your services?

Our services cater to various industries, including Medical, Automotive, Energy, Metering/Measurements, Consumer Electronics, and IC industries.

3 How is quality ensured during the production process?

We maintain full transparency throughout the production process and welcome technical inspections to monitor quality in-house.

4 How do you protect intellectual property?

We are willing to sign an NDA (Non-Disclosure Agreement) governed by local laws to ensure the highest level of confidentiality for your design data.

5 What files are required for a technical quotation?

Please provide Gerber data/files, a Bill of Materials (BOM), and any specific technical requirements or test instructions if functional testing is needed.

6 How do you handle component market fluctuations?

Due to rapid market changes, we offer flexible solutions and real-time inventory confirmation to optimize procurement strategies and minimize risks.
