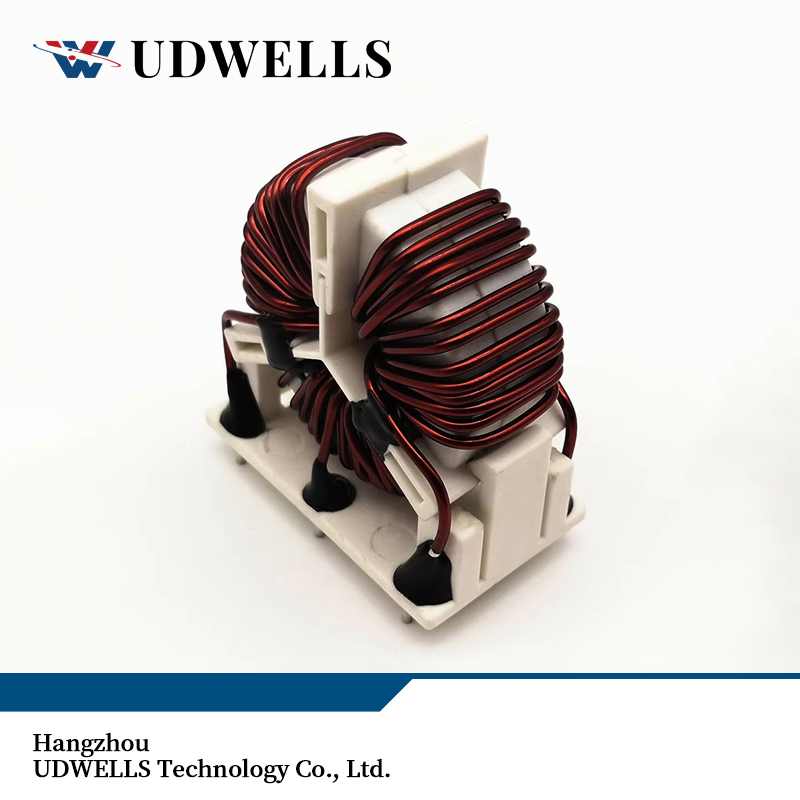

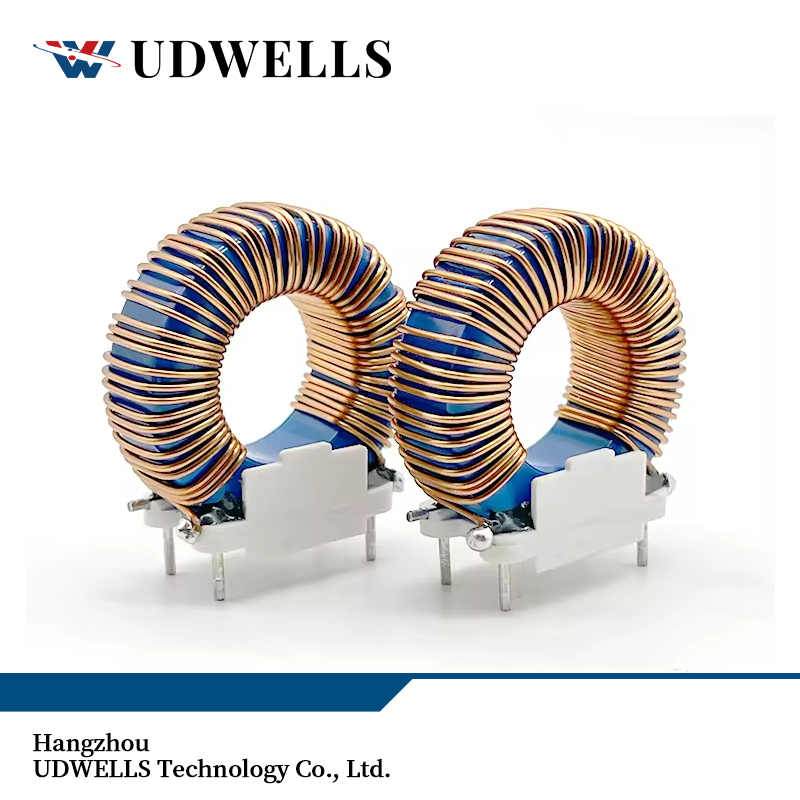

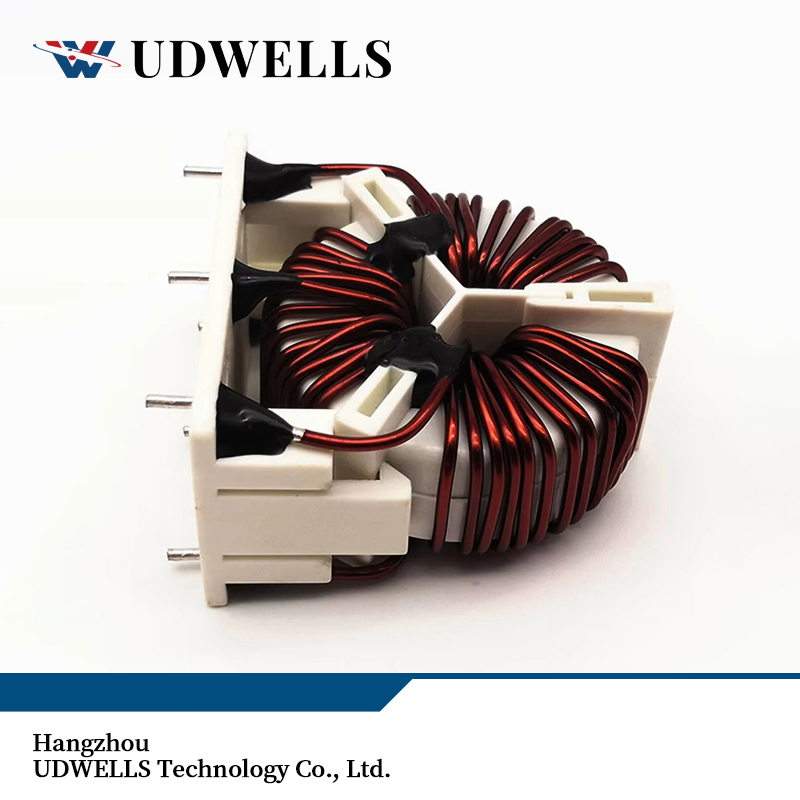

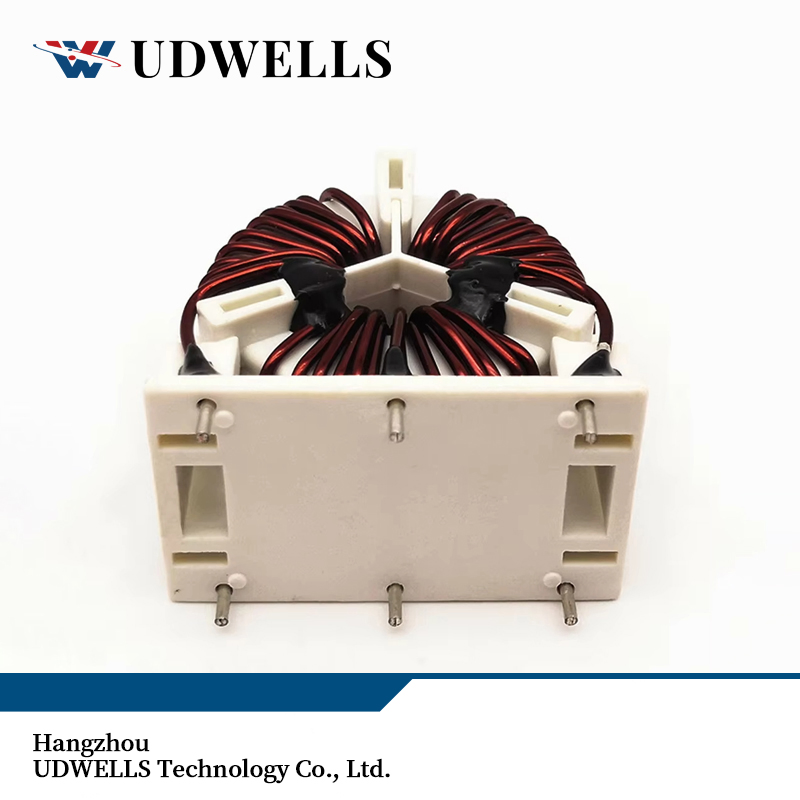

1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil
1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil
1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil
1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil
1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil
1 / 5
1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil
1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil
1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil
1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil
1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil

1mh 2.3 Wire Magnetic Ring Inductor Coil Common Mode Power Filtering Inductance Coil

Customization: Available
Type: Choke Inductor
Working Frequency: High Frequency
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.:
CM4
Structure of Winding:
Single Coil
Nature of Operation:
Choke Coil
Structure of Magnetizer:
Ferrite Coil
Range of Application:
Choke
Packaging Form:
Power Coils
Inductor Value:
Fixed Inductor
Customize:
Yes
Work Frequency:
10.0-100.0kHz
Inductance:
Customize
OEM/ODM:
Yes
Specification:
CE, RoHs, UL certified
HS Code:
8504500000

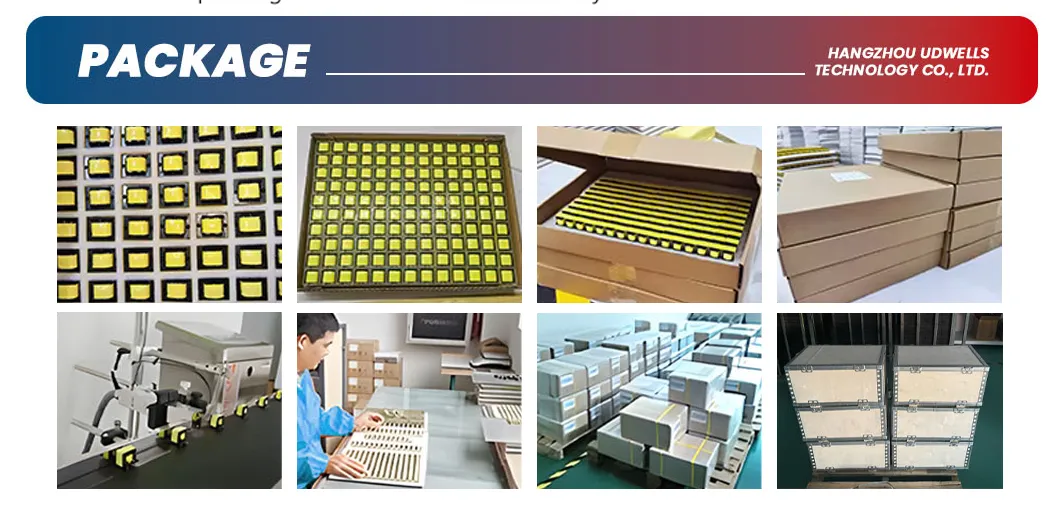

📦 Packaging & Delivery
Package Size:
12.00cm * 10.00cm * 8.00cm
Package Gross Weight:
2.000kg
Transport Package:
Export Standard Package/Carton
🔍 Product Description

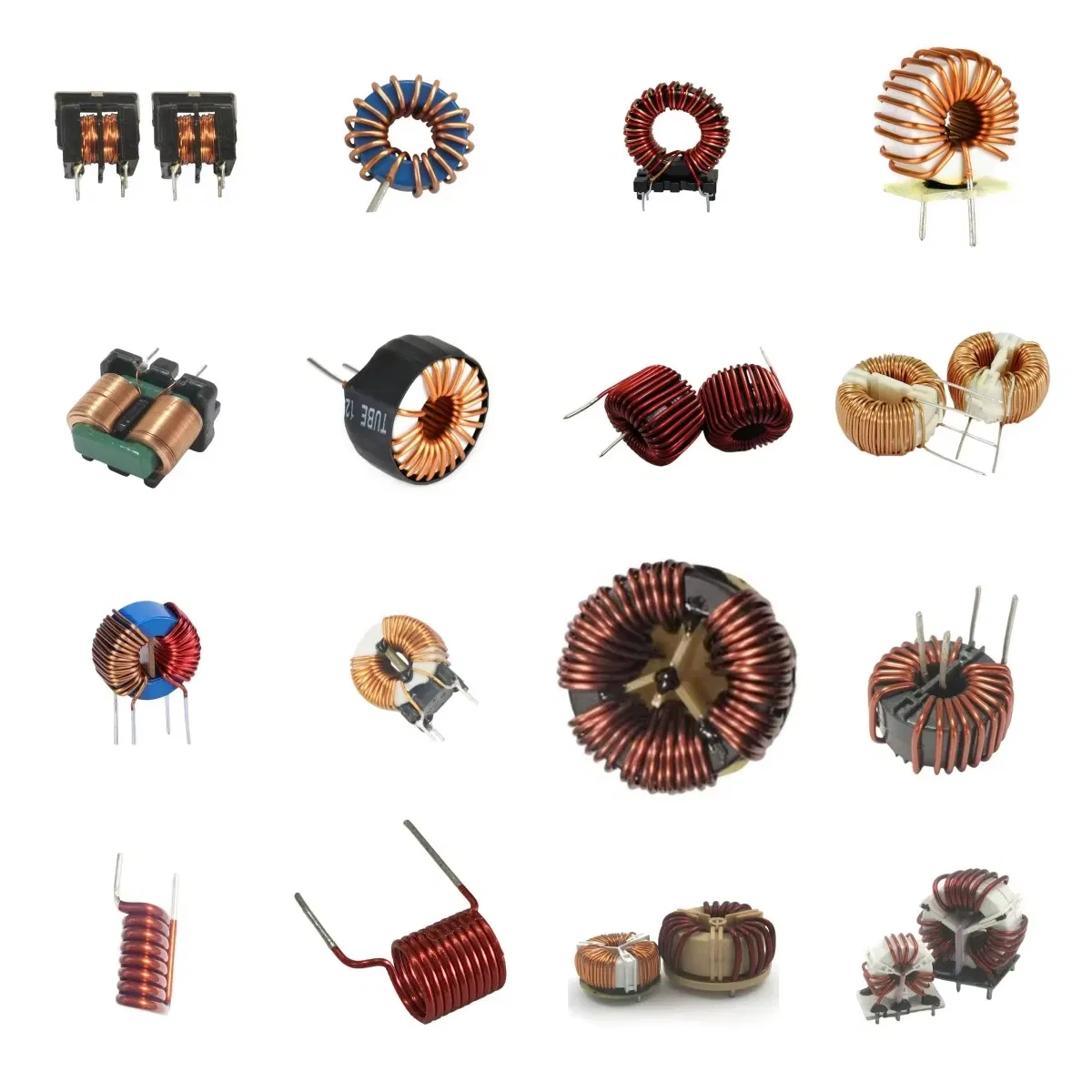

Magnetic Ring Inductor Coil
Please click below CONTACT US image for more information and quotation.
Contact Us
📋 Specifications

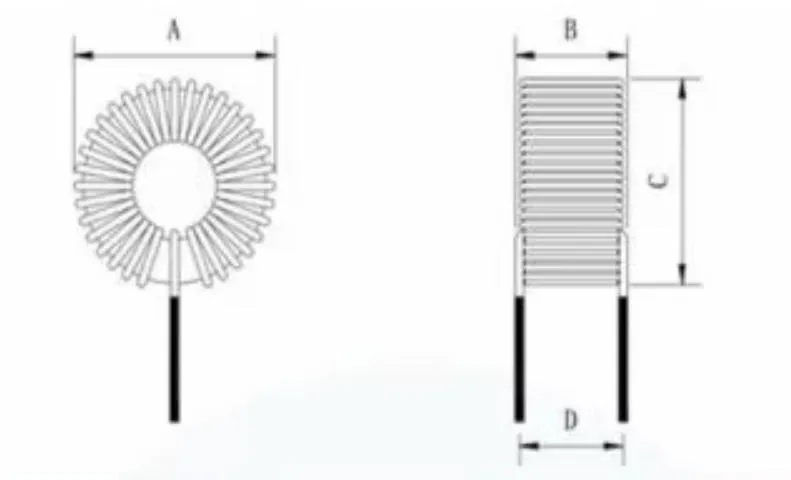

Inductor Specification Diagram
Type Inductance Dimension (mm) Work Frequency
A B C D
T16-26-521.0uH-10.0uH6.03.56.02.510.0-100.0KHZ
T20-26-521.0uH-10.0uH7.04.07.03.010.0-100.0KHZ
T25-26-521.0uH-15.0uH8.54.58.53.510.0-100.0KHZ
T26-26-521.0uH-25.0uH8.57.08.56.010.0-100.0KHZ
T30-26-522.0uH-30.0uH10.05.510.04.510.0-100.0KHZ
T37-26-522.0uH-35.0uH12.05.512.04.510.0-100.0KHZ
T38-26-522.0uH-45.0uH12.07.012.06.010.0-100.0KHZ
T44-26-523.0uH-50.0uH13.06.013.05.010.0-100.0KHZ
T50-26-525.0uH-60.0uH15.08.015.06.010.0-100.0KHZ
T51-26-525.0uH-60.0uH12.08.512.07.010.0-100.0KHZ
T60-26-525.0uH-70.0uH18.08.518.07.010.0-100.0KHZ
T68-26-525.0uH-75.0uH21.08.521.07.010.0-100.0KHZ
T72-26-525.0uH-75.0uH21.09.021.07.010.0-100.0KHZ
T80-26-525.0uH-80.0uH24.09.024.08.010.0-100.0KHZ
T90-26-525.0uH-80.0uH27.013.027.011.010.0-100.0KHZ
T94-26-525.0uH-80.0uH27.011.027.09.010.0-100.0KHZ
T106-26-525.0uH-80.0uH31.014.031.012.010.0-100.0KHZ
T130-26-520.5mH-3.0mH36.014.036.012.010.0-100.0KHZ
T141-26-520.7mH-3.2mH39.014.039.012.010.0-100.0KHZ
T157-26-521.0mH-3.5mH43.017.043.015.010.0-100.0KHZ
T200-26-522.0mH-4.0mH55.028.055.026.010.0-100.0KHZ
T400-26-522.0mH-4.0mH115.050.0115.030.010.0-100.0KHZ
Inductor Coil Detail 1
Inductor Coil Detail 2
High quality common mode power filtering inductance coil for diverse applications.
Contact for Quotation
🏢 Company Profile

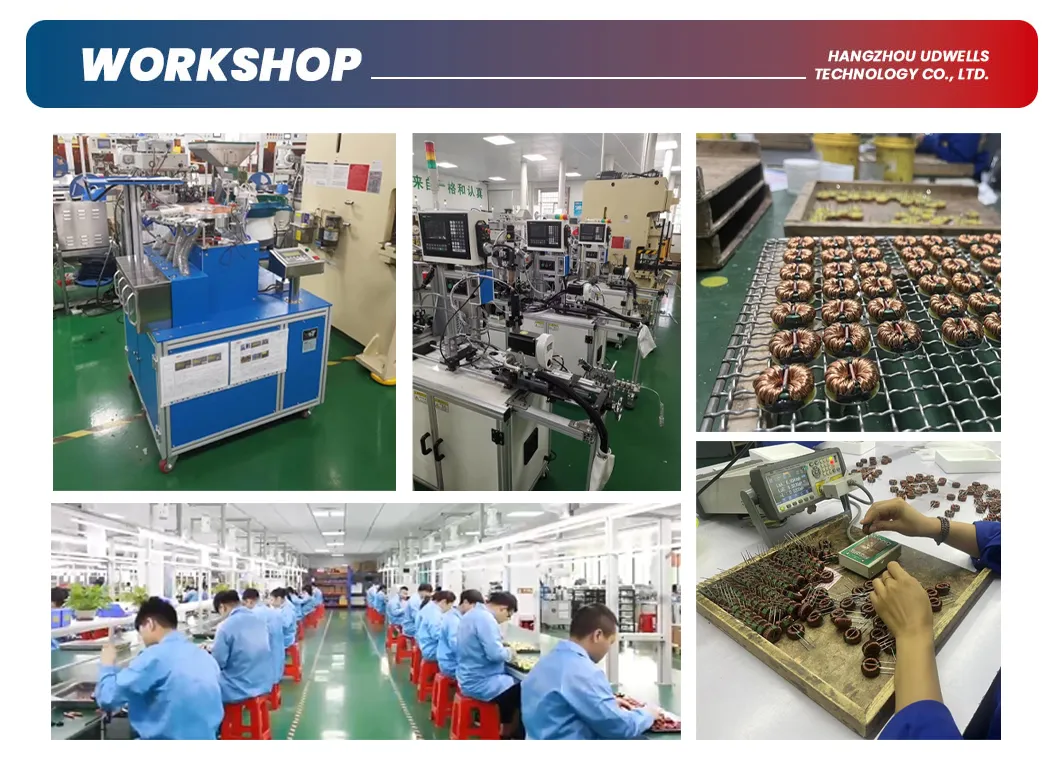

Production Facility
Factory Environment

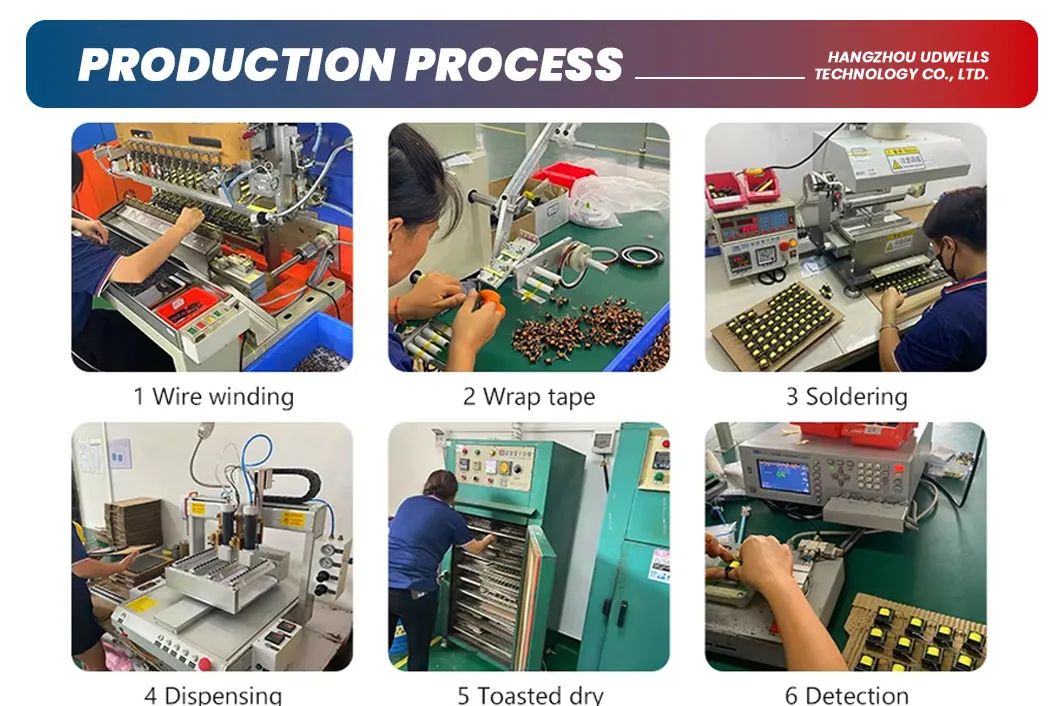

Manufacturing Process
Quality Control
Certifications and Awards

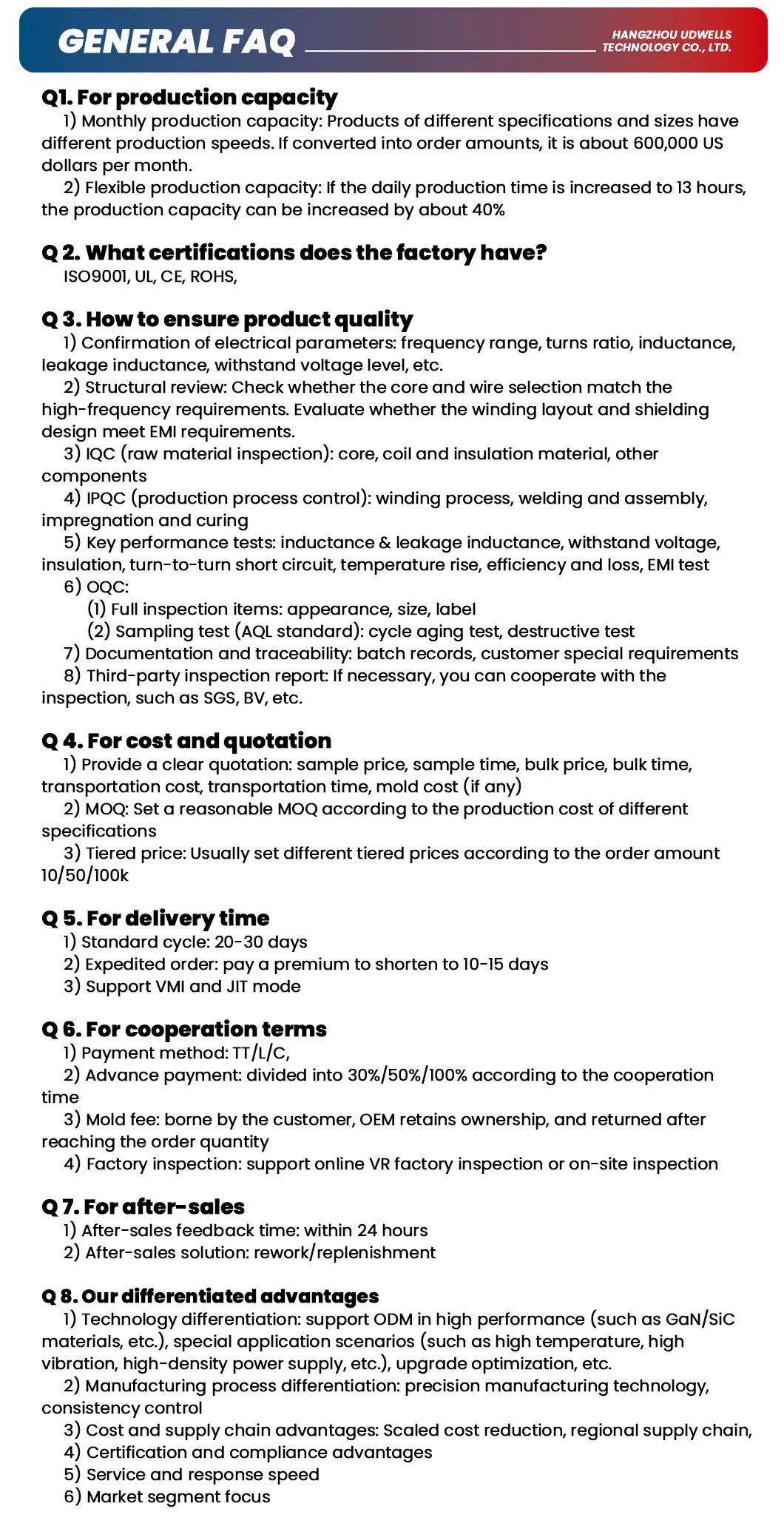

❓ Frequently Asked Questions
What are the main applications for these magnetic ring inductors?
They are primarily used for common mode power filtering, noise suppression, and choke applications in power supplies and electronic circuits.
Can the inductance values be customized?
Yes, we provide customization services for inductance values and dimensions based on your specific project requirements.
What certifications do your inductor coils carry?
Our products are CE, RoHs, and UL certified, ensuring compliance with international quality and safety standards.
What is the typical working frequency range?
The standard working frequency for our CM4 series ranges from 10.0 kHz to 100.0 kHz.
Do you offer OEM or ODM services?
Yes, we fully support both OEM and ODM services to meet the unique branding and design needs of our clients.
What is the standard packaging for export?
We use export standard packaging and high-quality cartons to ensure the safety of the products during international transport.
