Overview & Basic Information
Production Type
Automation

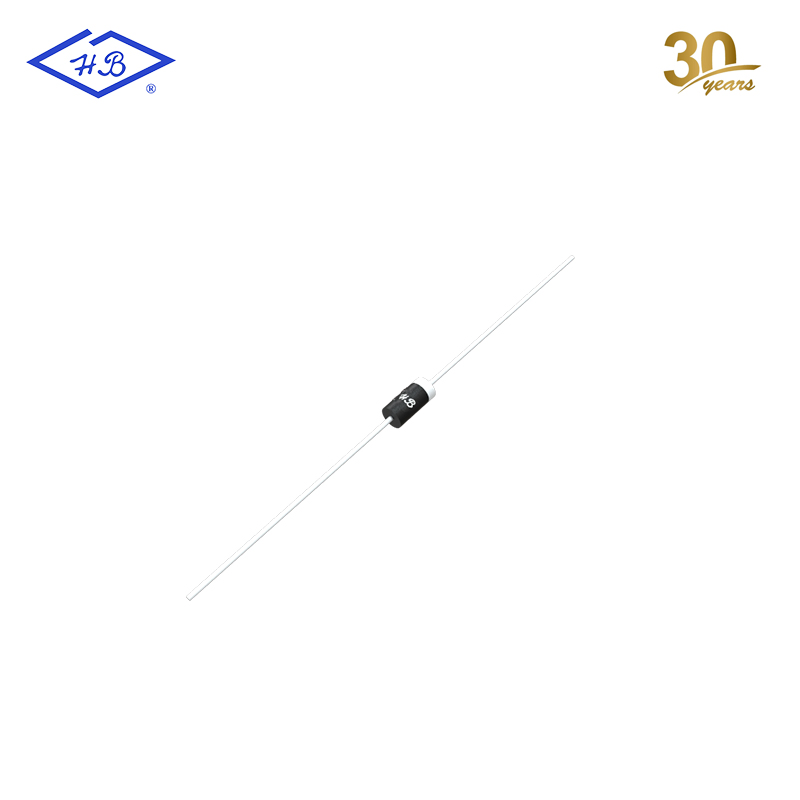

Product Parameters (1N4007S)
| Type |
Max Peak Reverse Voltage (Vpk) |
Max Average Rectified Current (Io) |
@TA (ºC) |
Forward Peak Surge Current (IFM) |
Max Reverse Current (IR) |
Forward Voltage (VFM) |
Package |
| 1N4007S |
1000 |
1.0 |
25 |
30 |
5.0 |
1.1 |

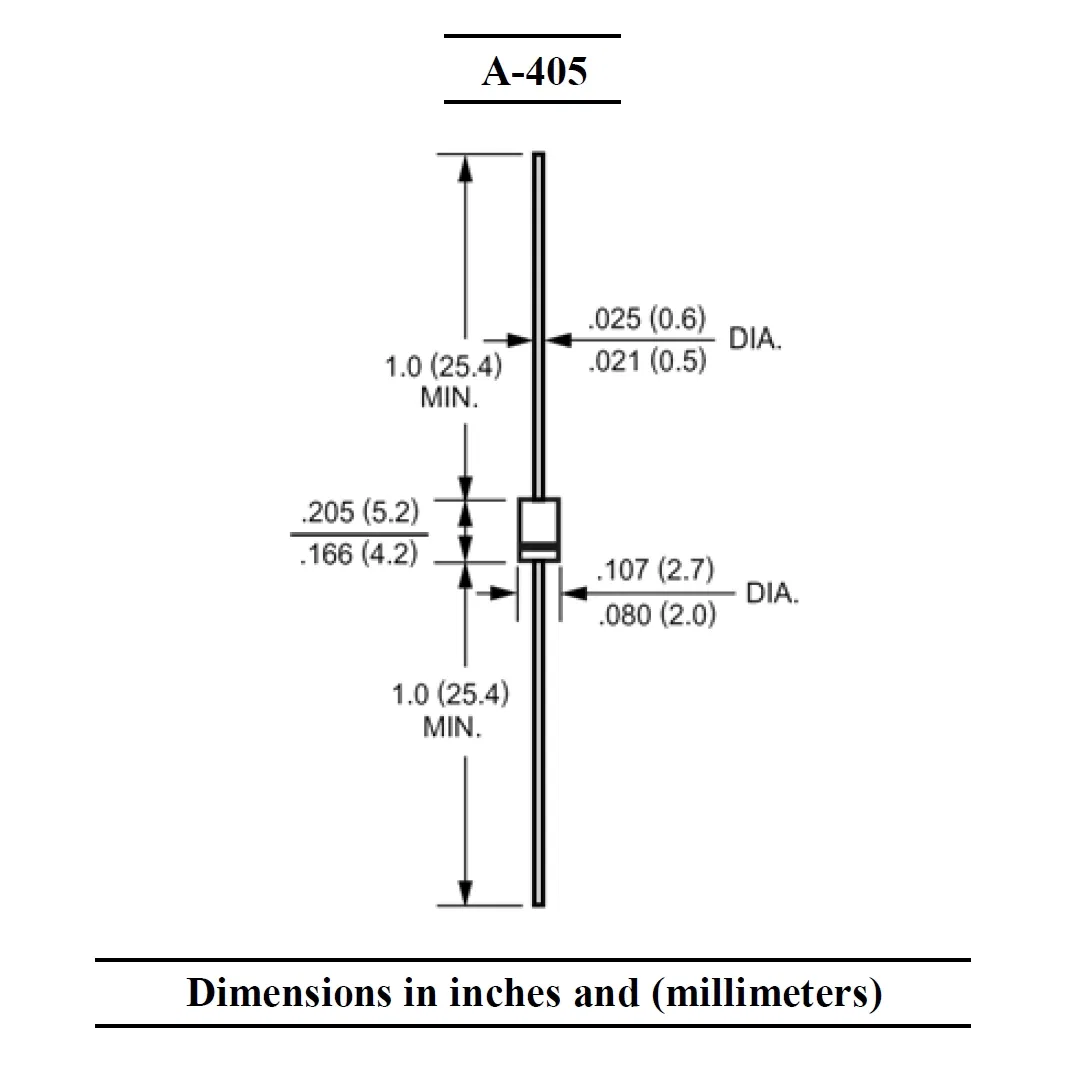

A-405 |
Key Features
Low forward voltage drop
High current capability
High reliability
High surge current capability
Exceeds environmental standards

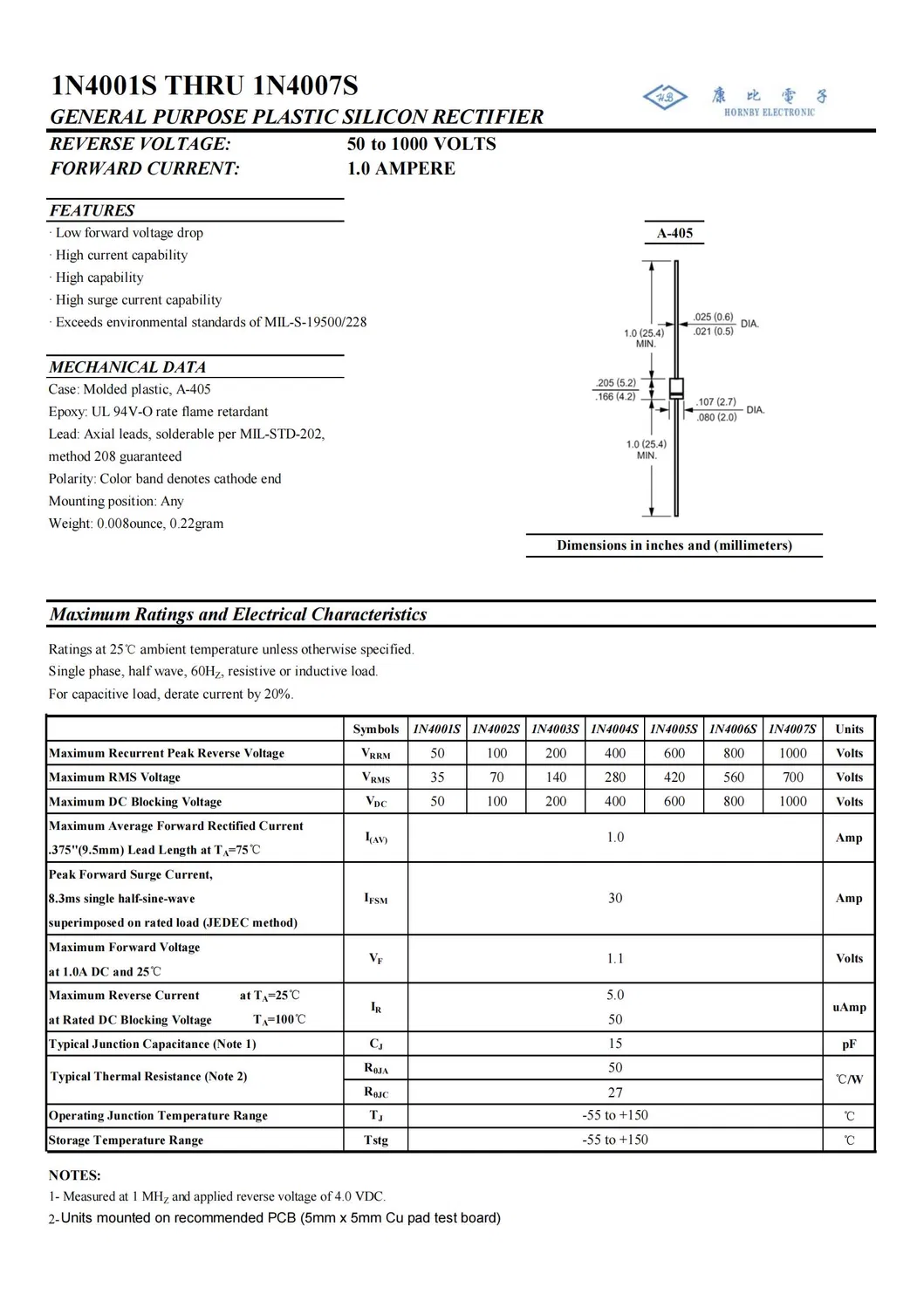

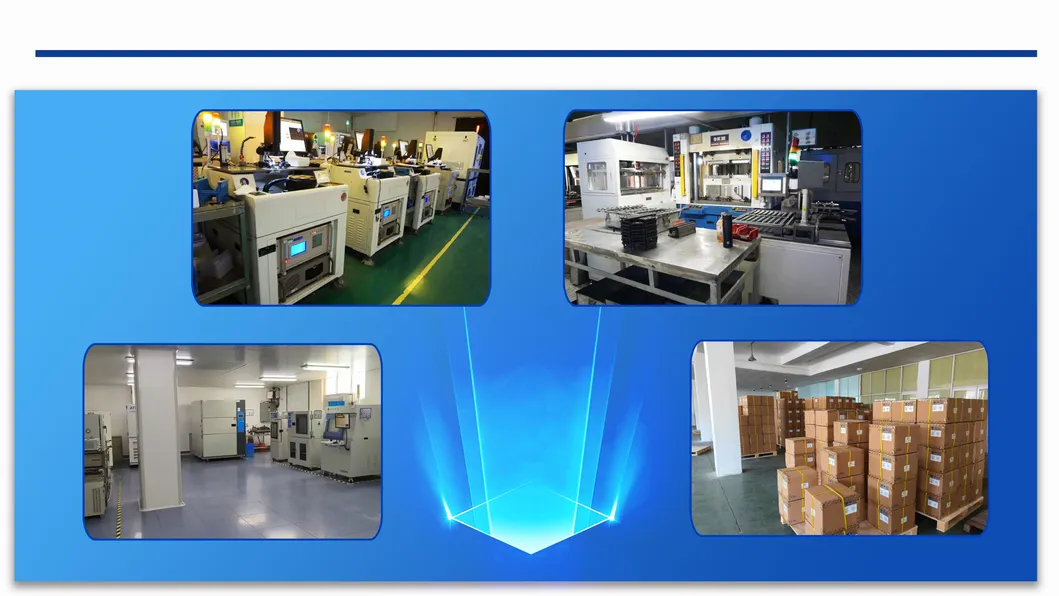

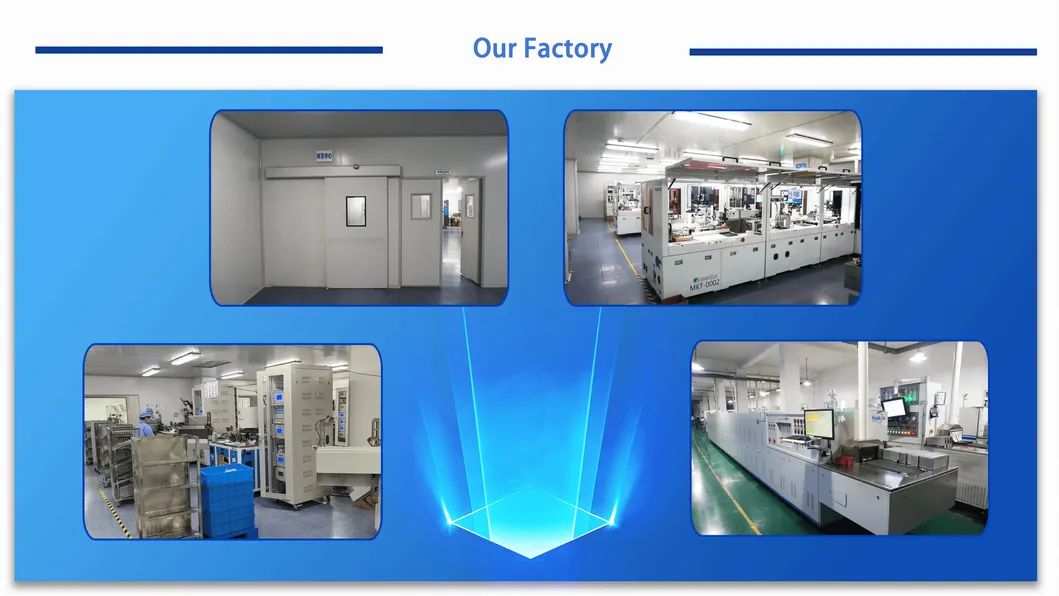

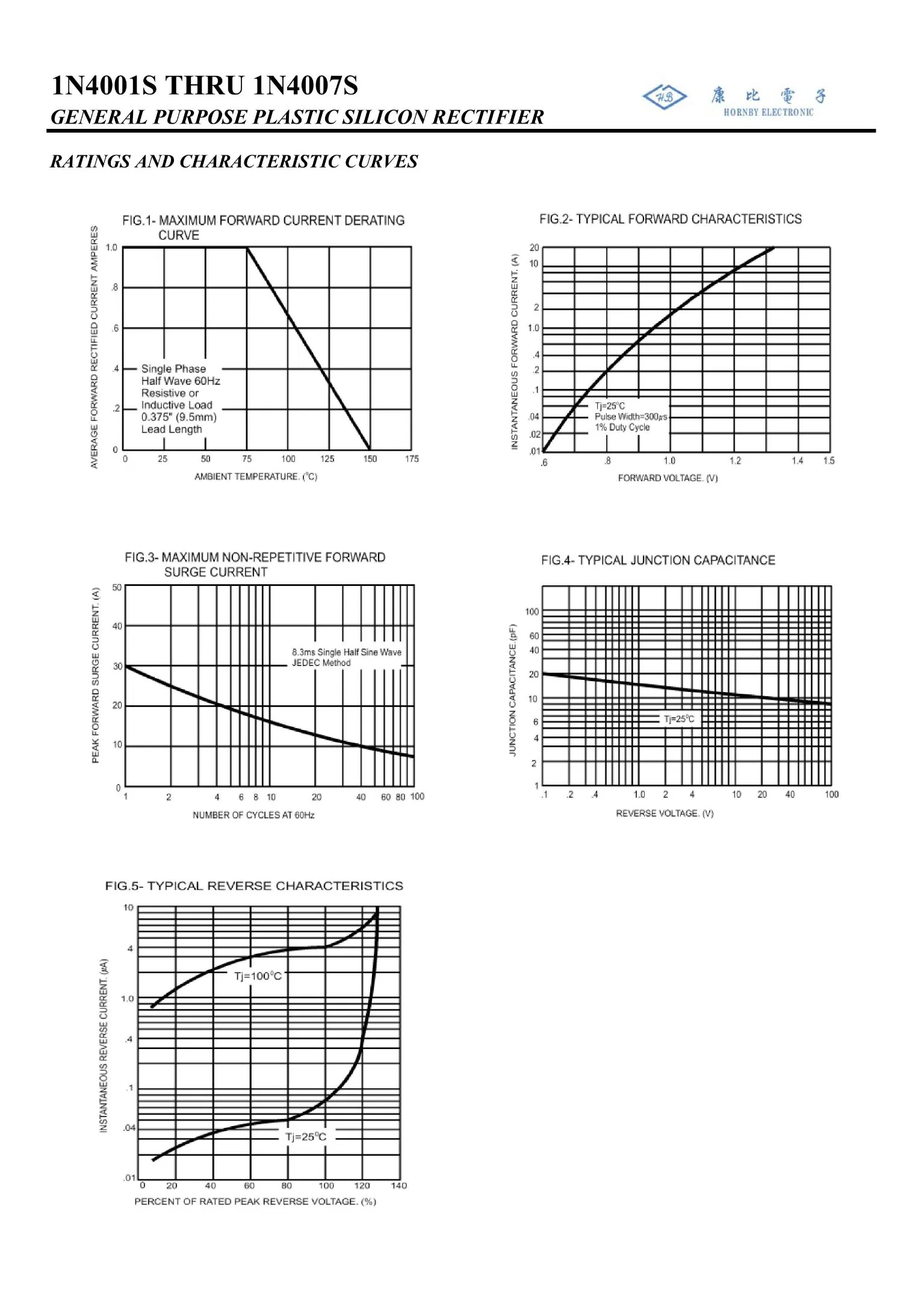

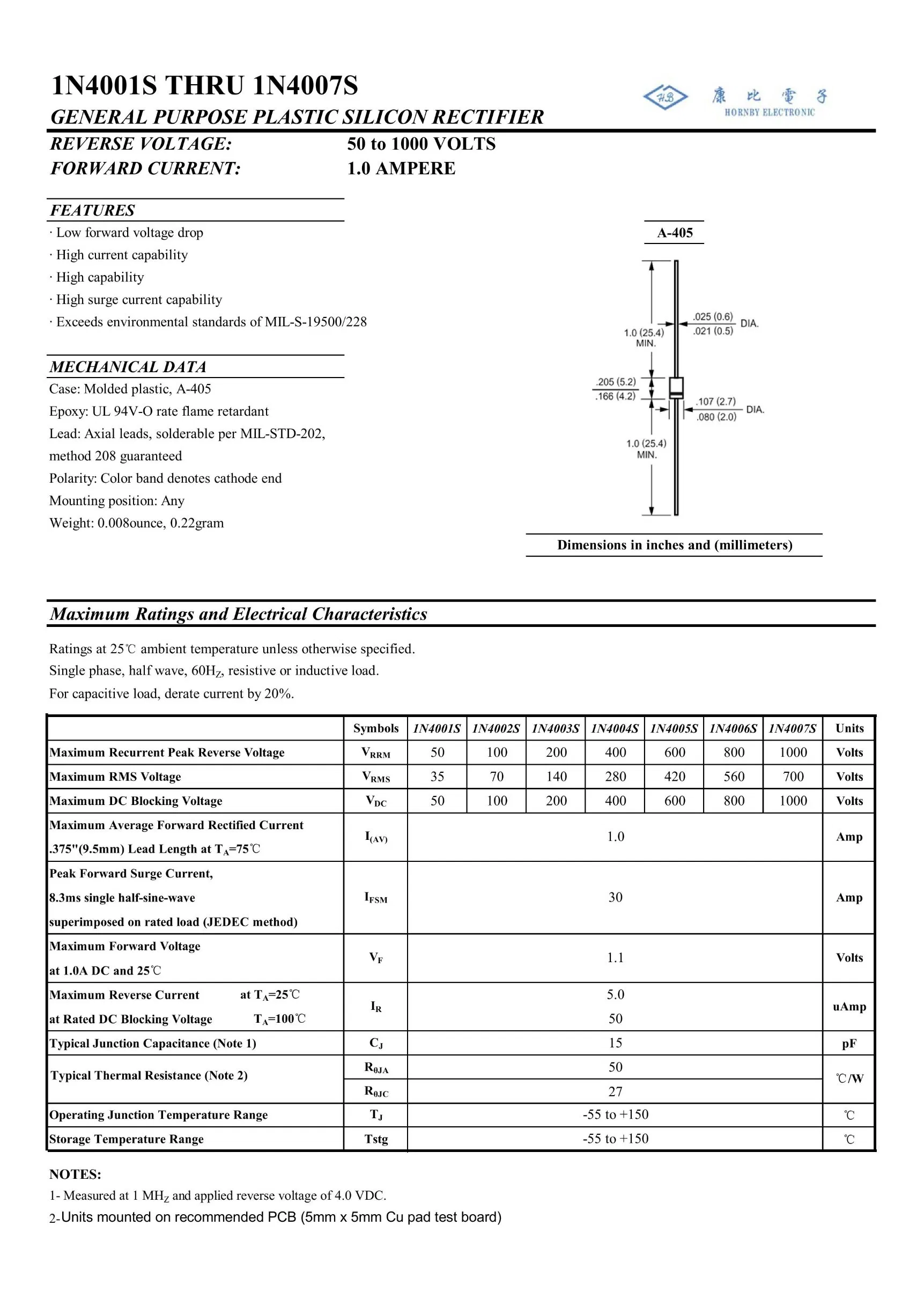

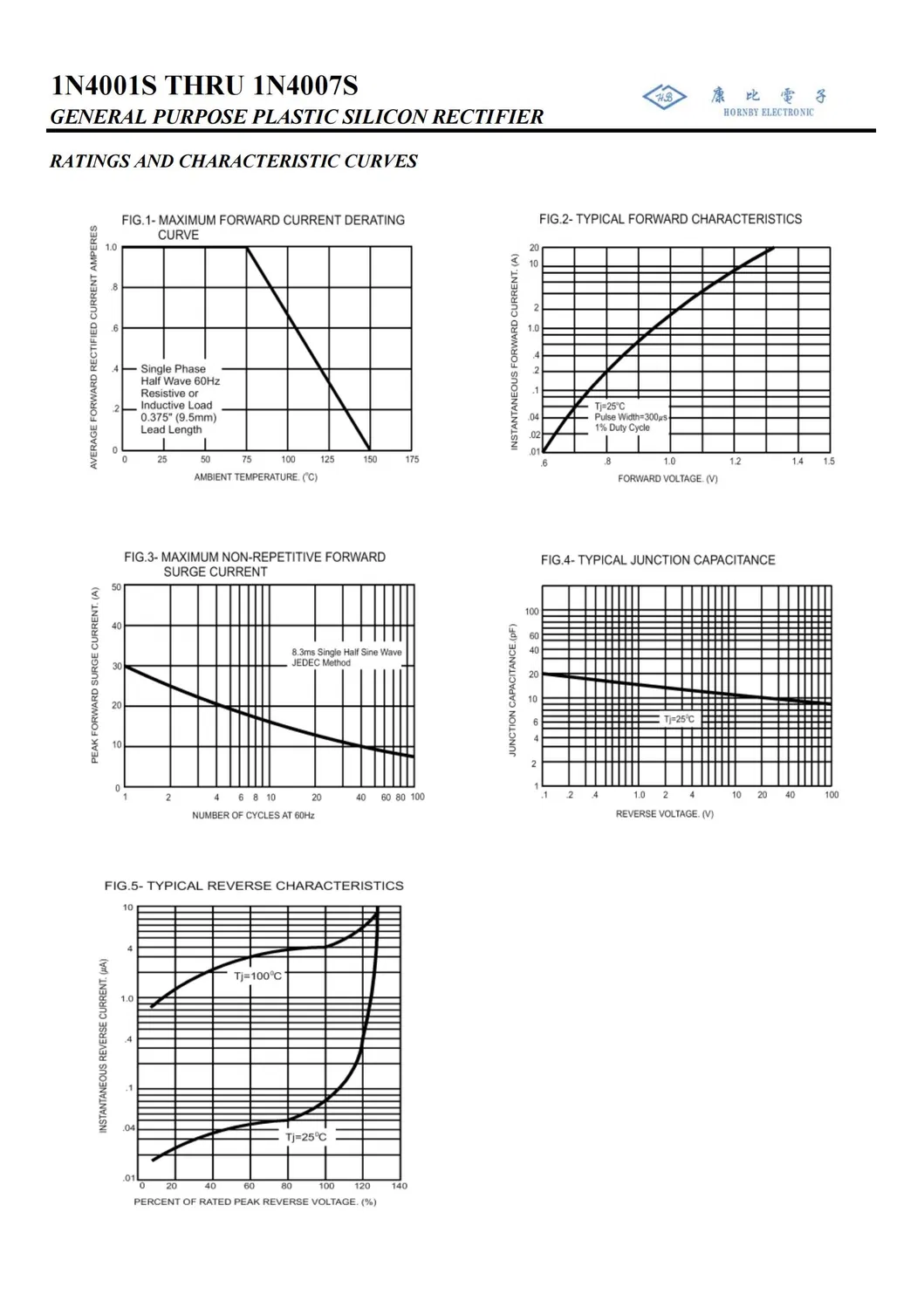

Technical Documentation & Factory
Frequently Asked Questions
Do you offer customized products based on special requirements?
Yes, customization is available for packaging, chips, leads, and solders. Independent R&D teams and factory facilities are in place to process special technical requirements.
What should I do if I can't find a specific part number?
Only the most popular products are listed online. Many other diode types are available. Please contact the sales team for specific demands not found on the platform page.
How can I ensure the products are authentic?
It is recommended to purchase products directly from us or authorized distributors. Products from unauthorized sellers may carry quality risks.
What is the operating temperature range for the 1N4007S?
The 1N4007S model is designed to operate efficiently within a temperature range of -55 to 150 ºC.
What certifications do these rectifiers hold?
The products are manufactured under strict quality control and hold RoHS and ISO certifications.
What is the standard packaging for the 1N4007S?
The standard package for this model is the A-405, and it can be delivered in reels or boxes depending on the order volume.
