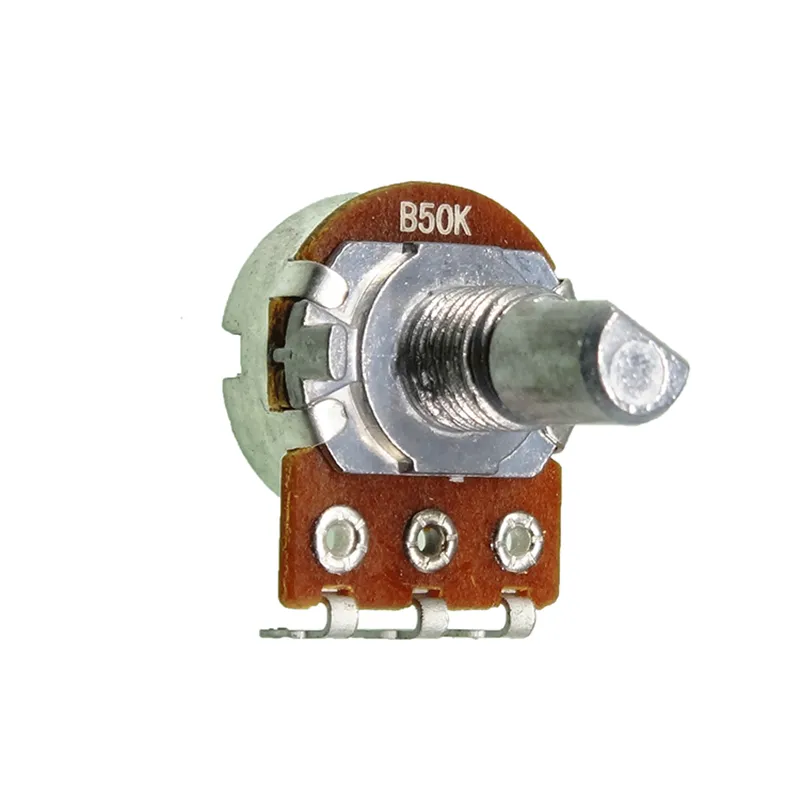

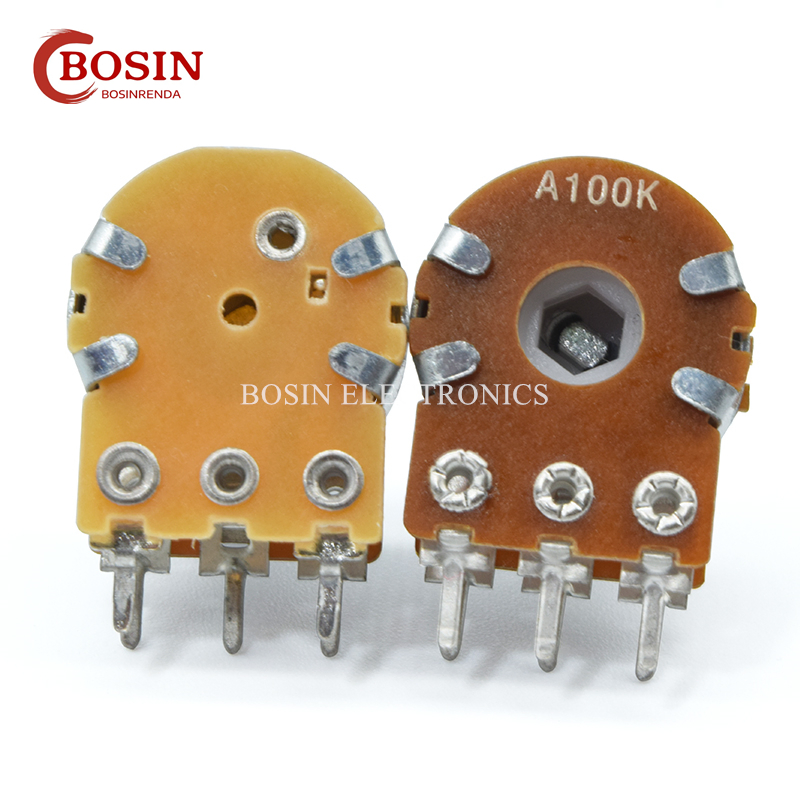

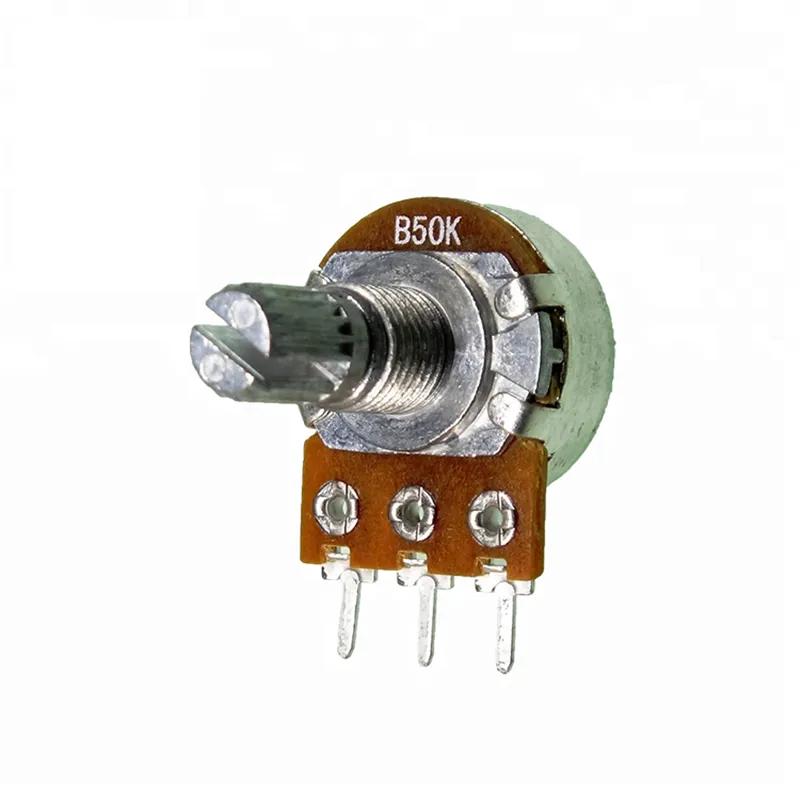

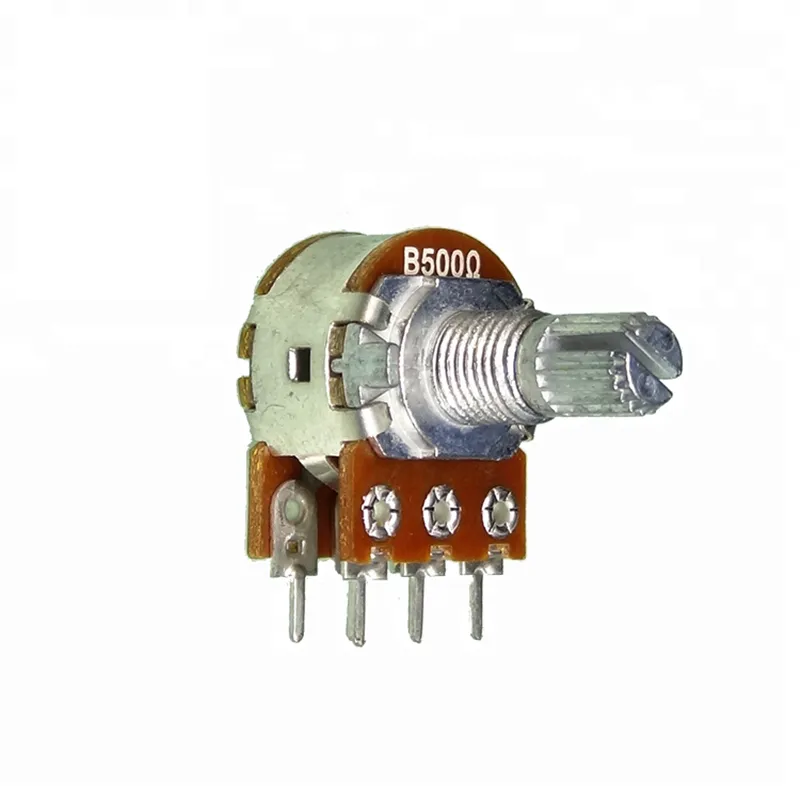

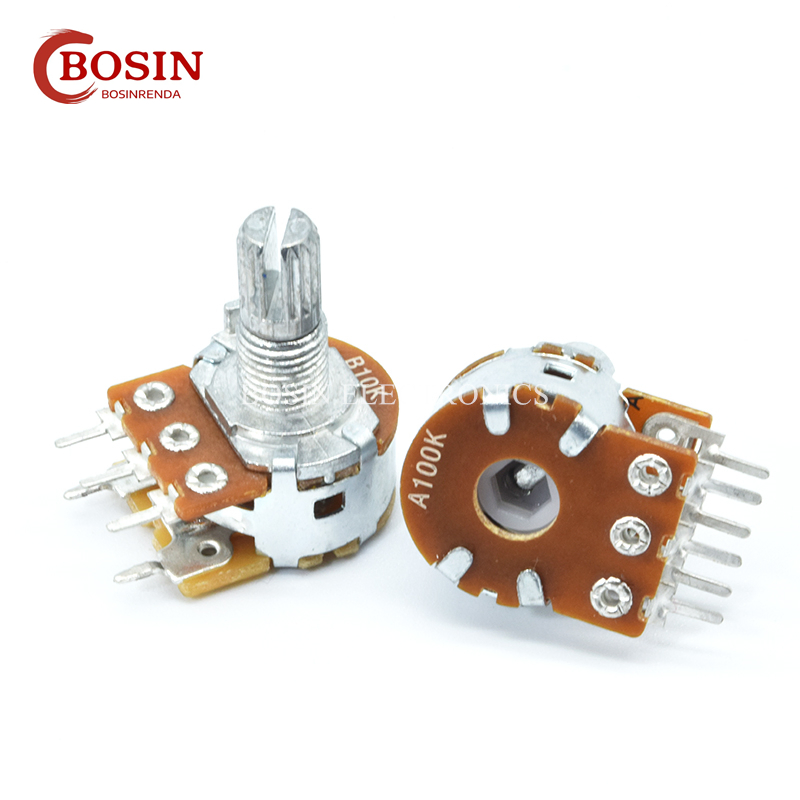

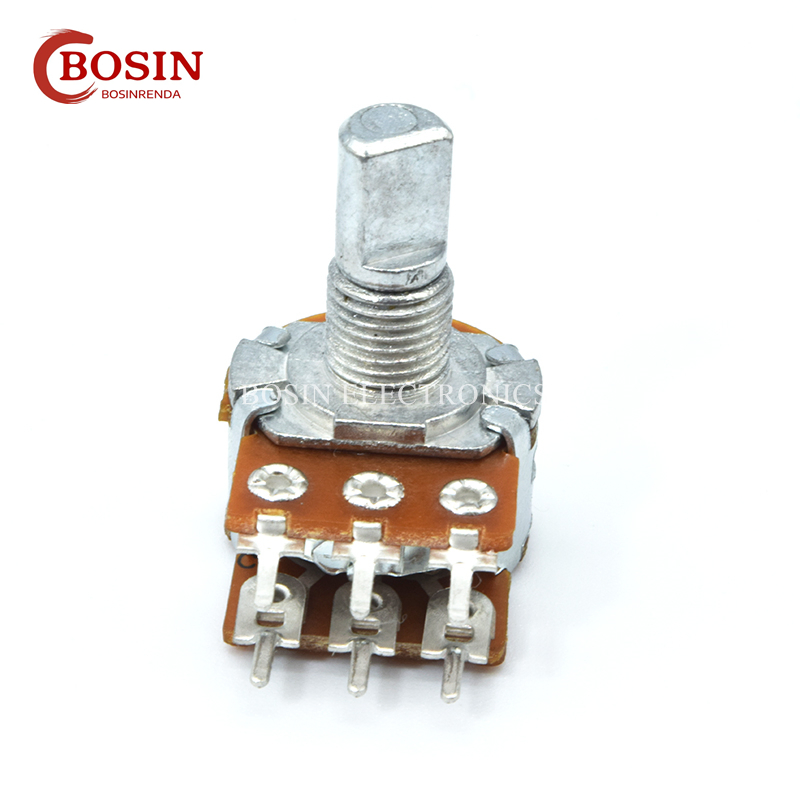

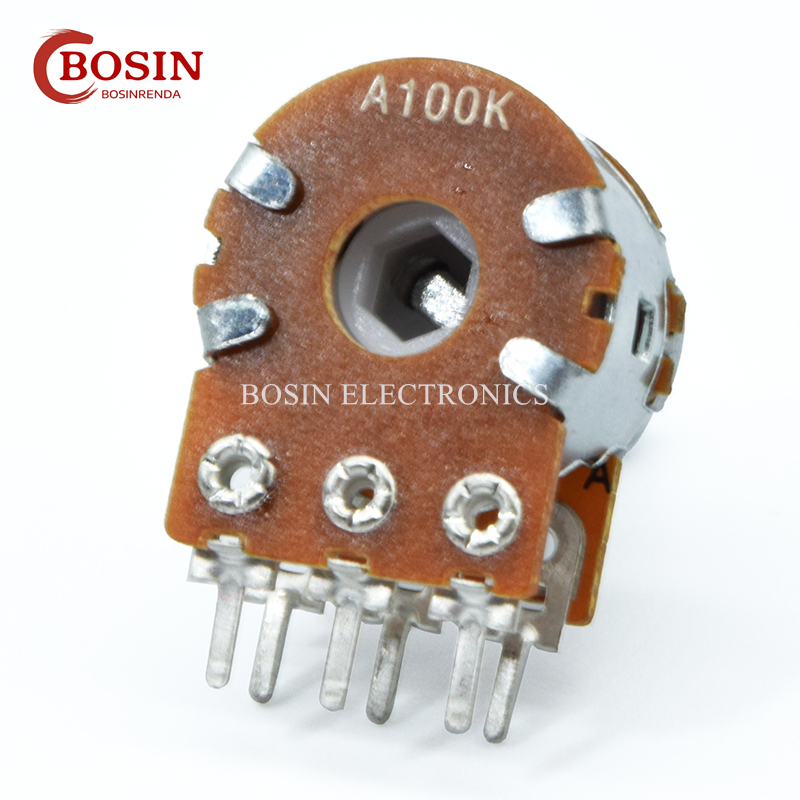

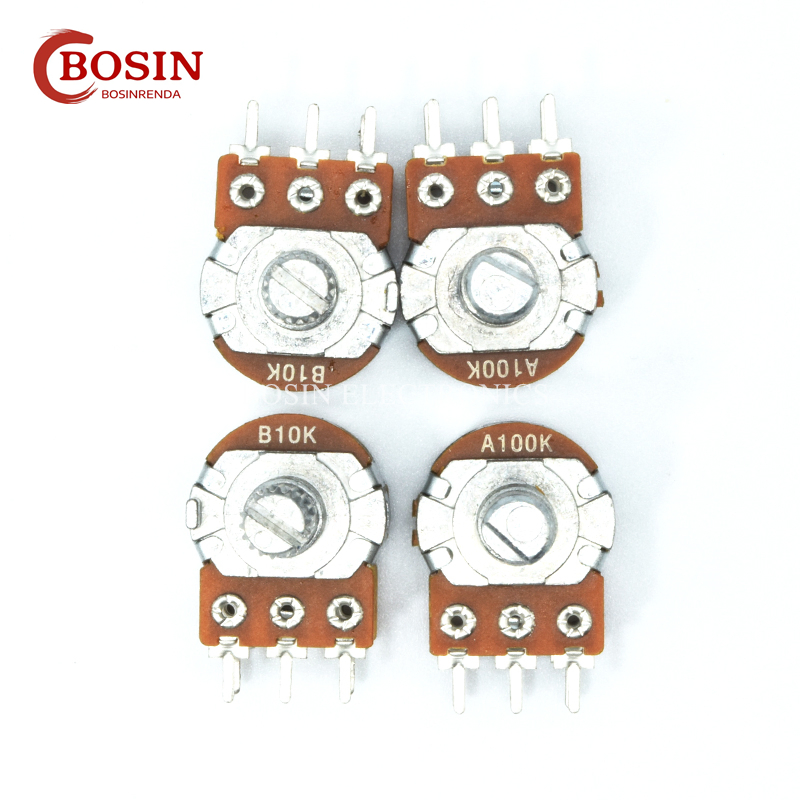

| 1. Mechanical Characteristics (16mm) | |
| Total Rotational Angle | 300°±10° |
| Rotational Torque | 20gf.cm~200gf.cm |
| Push-Pull Strength | Pull: 8Kgf Max; Push: 6Kgf Max |
| Shaft Wobble | 0.5 mm Max |
| 2. Electrical Characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Resistance Tolerance | ±20% |
| Max. Operating Voltage | AC 50V, DC 10V |
| Rated Power | B Taper 0.05W; Others 0.025W |
| Insulation Resistance | > 100MΩ at DC 250V |
| 3. Durability & Temperature | |
| Rotational Life | 15,000 Cycles Min. |
| Operating Temp Range | -10°C ~ +70°C |
| Storage Temp Range | -30°C ~ +80°C |
| 4. Switch Characteristics | |
| Switch Rated Power | Push: 0.5A at DC 12V / Rotational: 3.0A at DC 16V |
| Contact Resistance | < 100mΩ |
| Switch Life | 15,000 circles min |

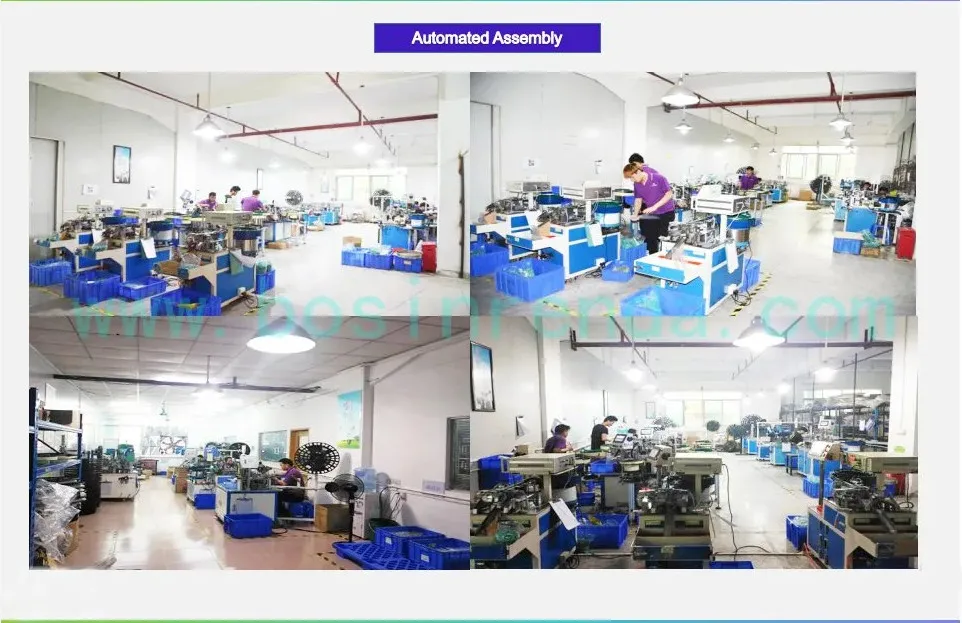

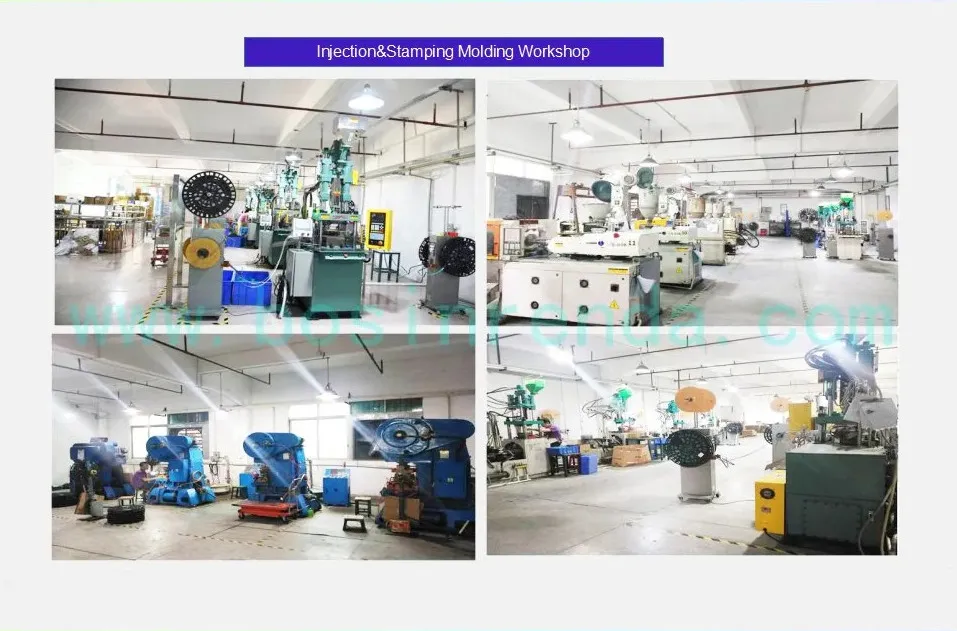

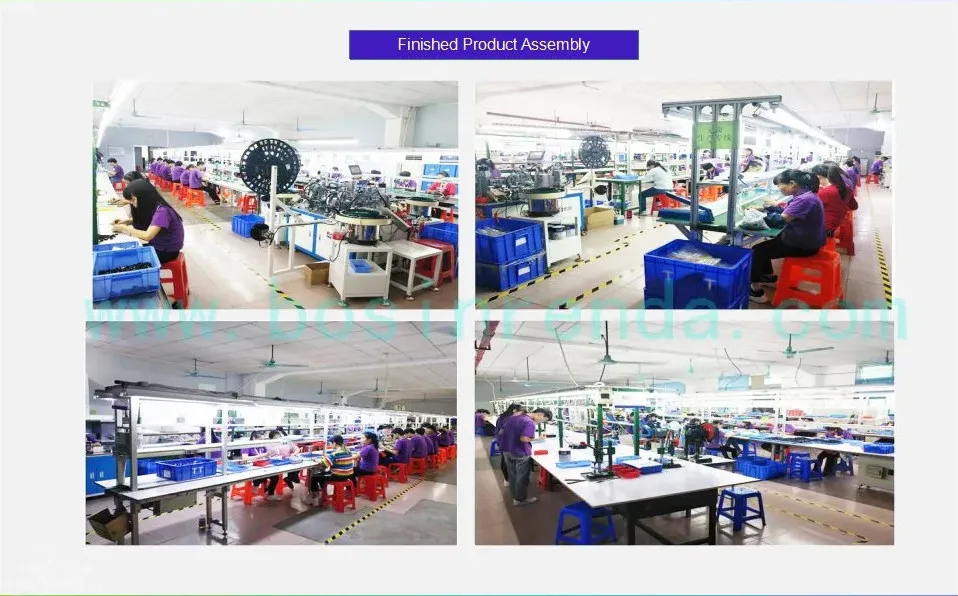

Specializing in the development, production, and marketing of high-performance industrial rotary encoders, potentiometers, switches, and DC motors. Our facilities are certified under ISO9001, ISO14001, and ISO/TS16949 standards.
With a robust R&D team, we hold multiple proprietary intellectual property rights, including software copyrights and various invention patents dedicated to electronic component innovation.
