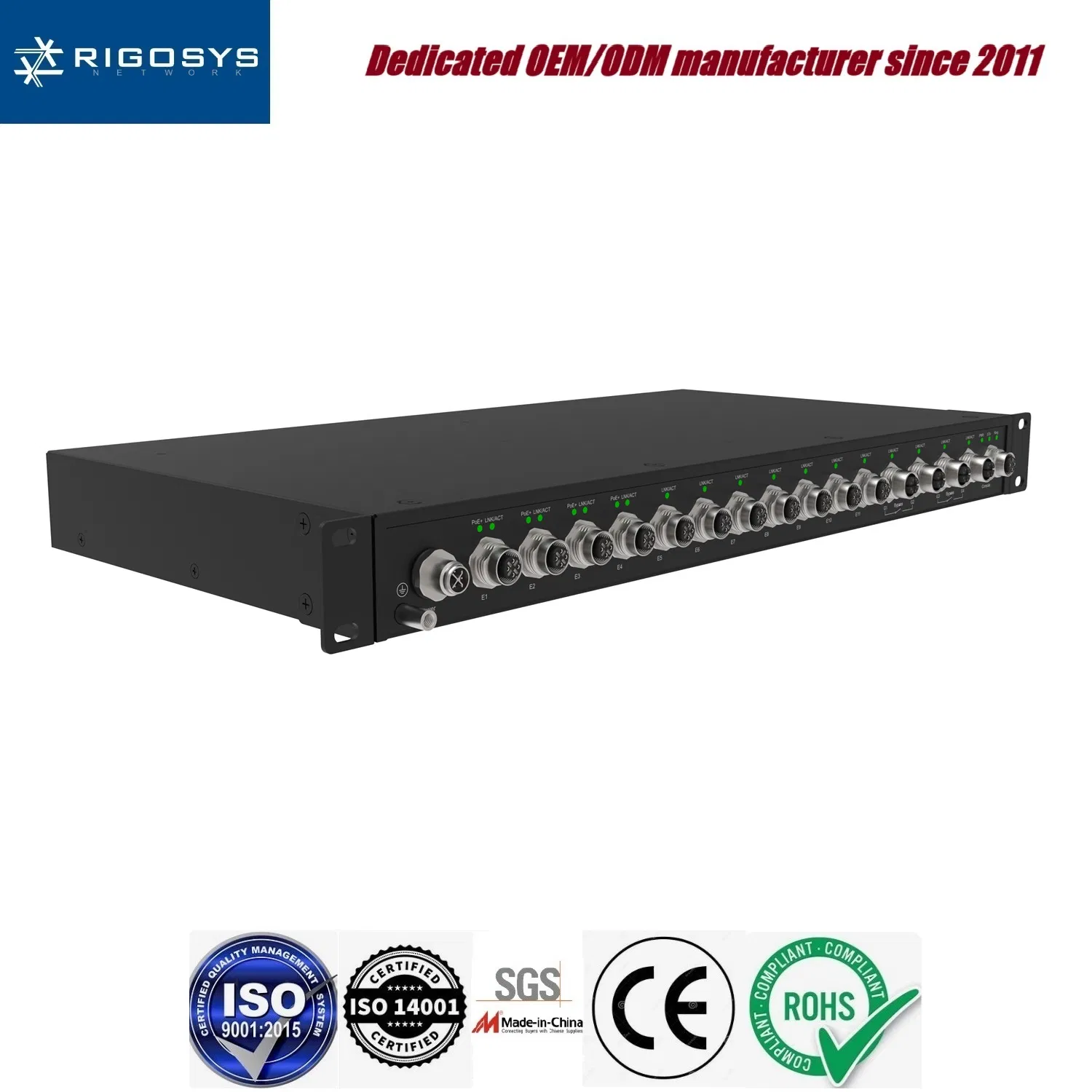

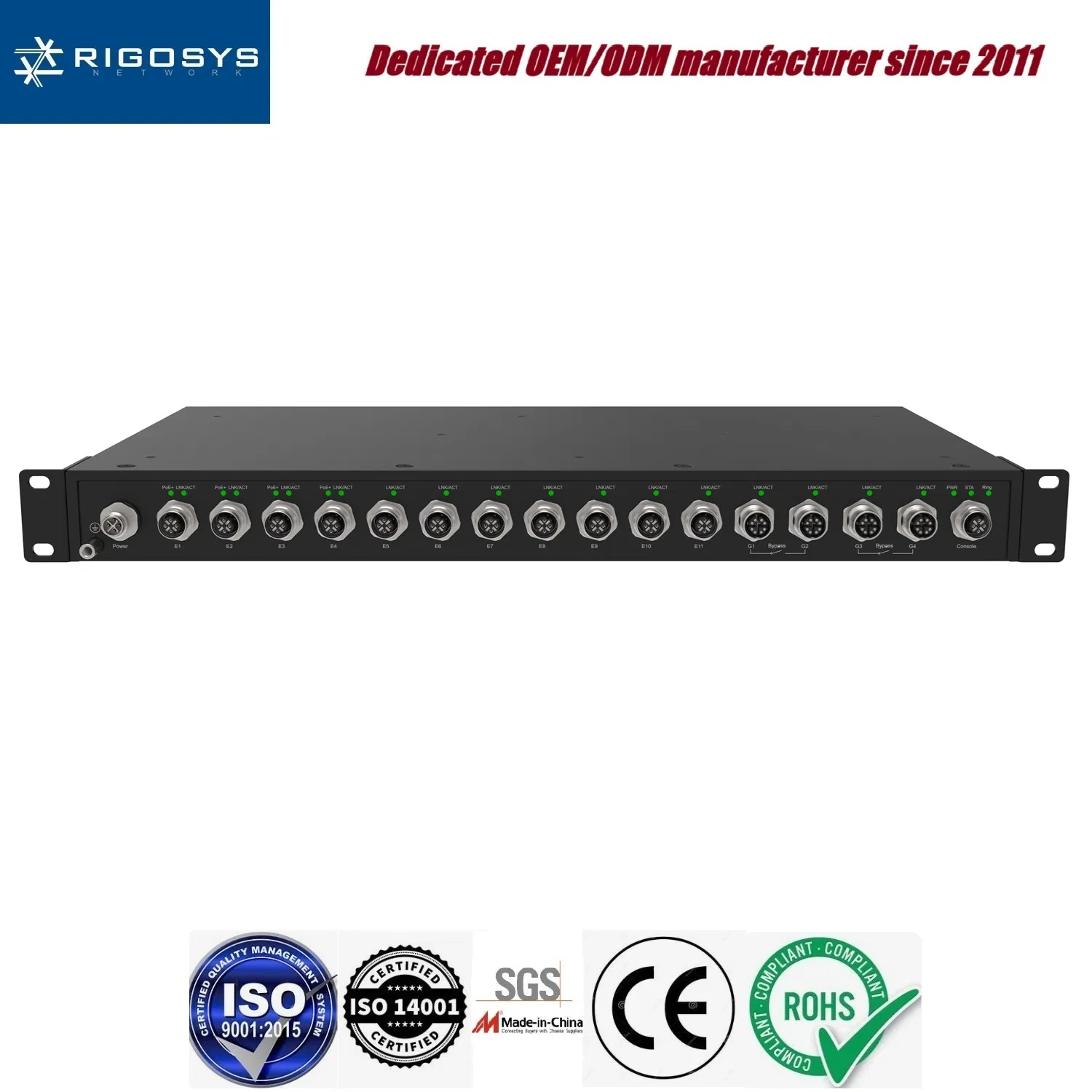

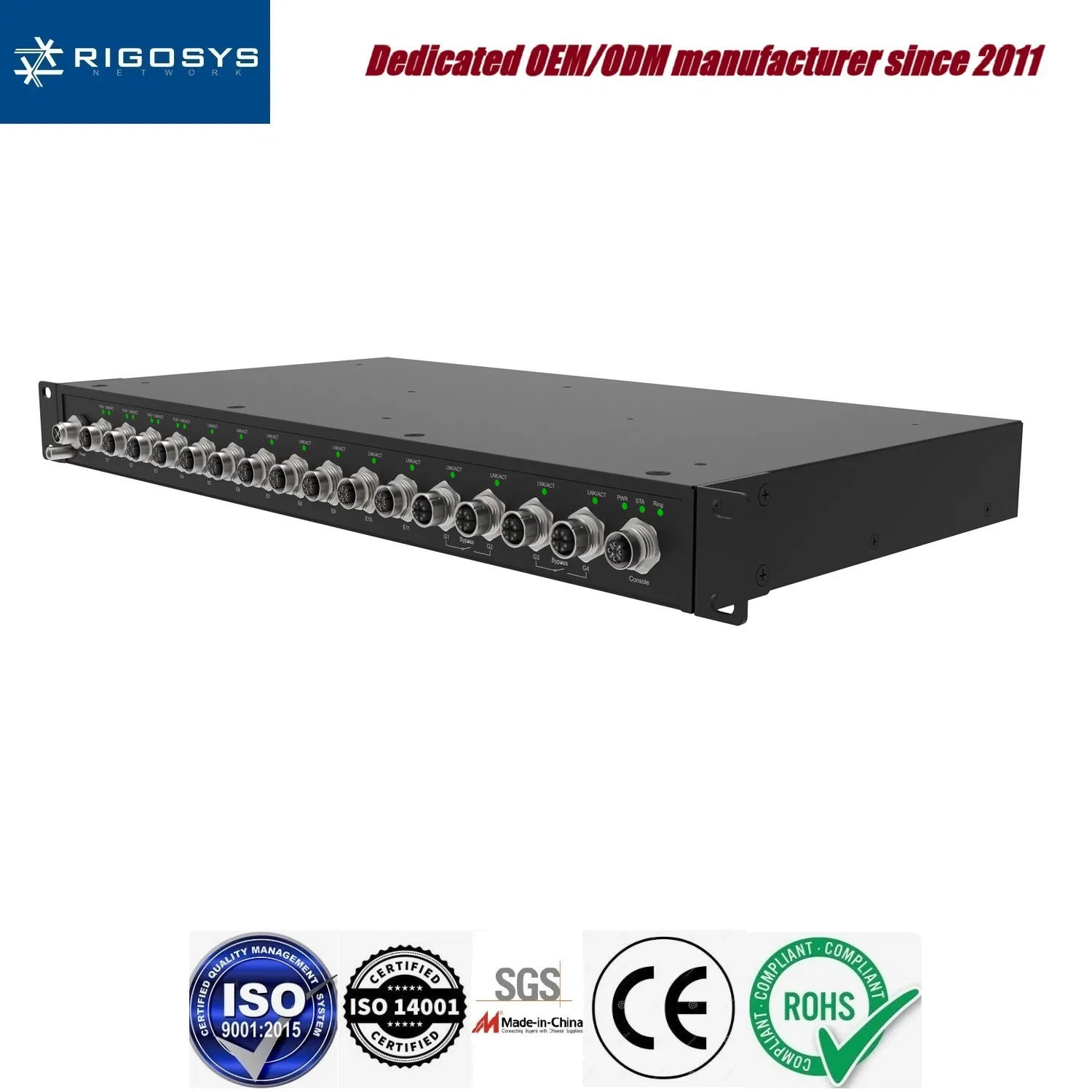

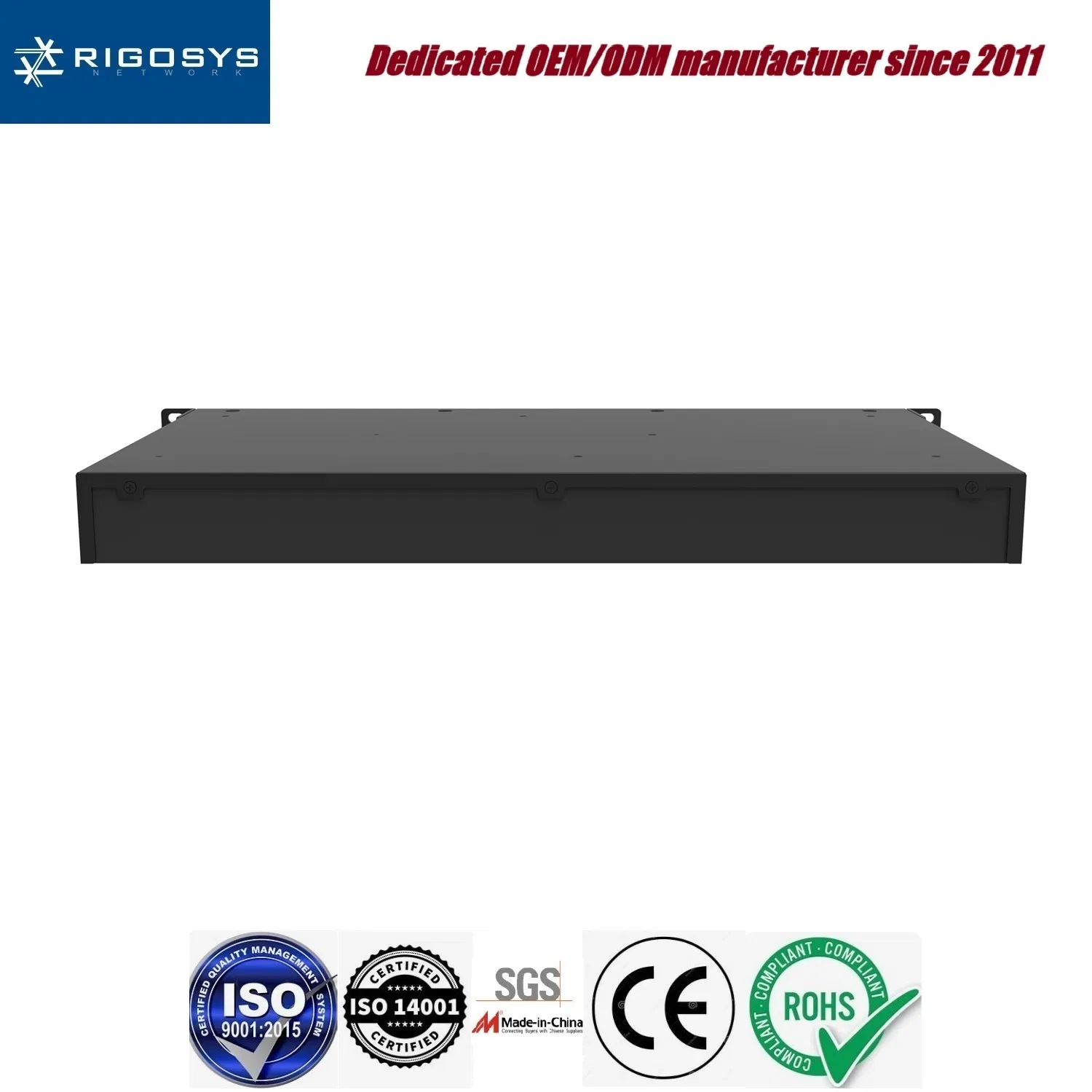

15-Port M12 In-vehicle Managed Industrial Ethernet Switch

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Model NO.

RIS7115P

Transmission Rate

10/100/1000Mbps

Ports

PSE(POE) Chipset

High Quality RTL chip

Customizable

OEM/ODM

Operating Temp

-40~75℃

Warranty

5 Years

Material

Metal

HS Code

85176232

Capacity

150,000/Year

11*100M M12 electrical ports (4 support af/at power supply); 4*1000M M12 ports supporting Bypass.
Supports IEEE802.3af & at PoE standard, maximum machine output power of 140W.
10/100/1000Base-TX Ethernet port auto-sensing, full/half duplex, MDI/MDIX auto-sensing.
Multiple redundancy protocols: ERPS, PVTRING, MSTP, RSTP, STP.
Advanced management: QoS, VLAN, IGMP Snooping.
Security technologies: HTTPS/SSL, SSH, user classification, port isolation, IPSG, ARP anti-attack.
Management methods: CLI, Telnet, Web, and SNMPv1/v2c/v3.
Power supply features overload and reverse connection protection.
IP40 protection level with fanless natural heat dissipation.
Industrial-grade wide-voltage design for flexible application.
Wide operating temperature range: -40ºC to 75ºC.
Standard rack mount installation.

Network Interface & Power

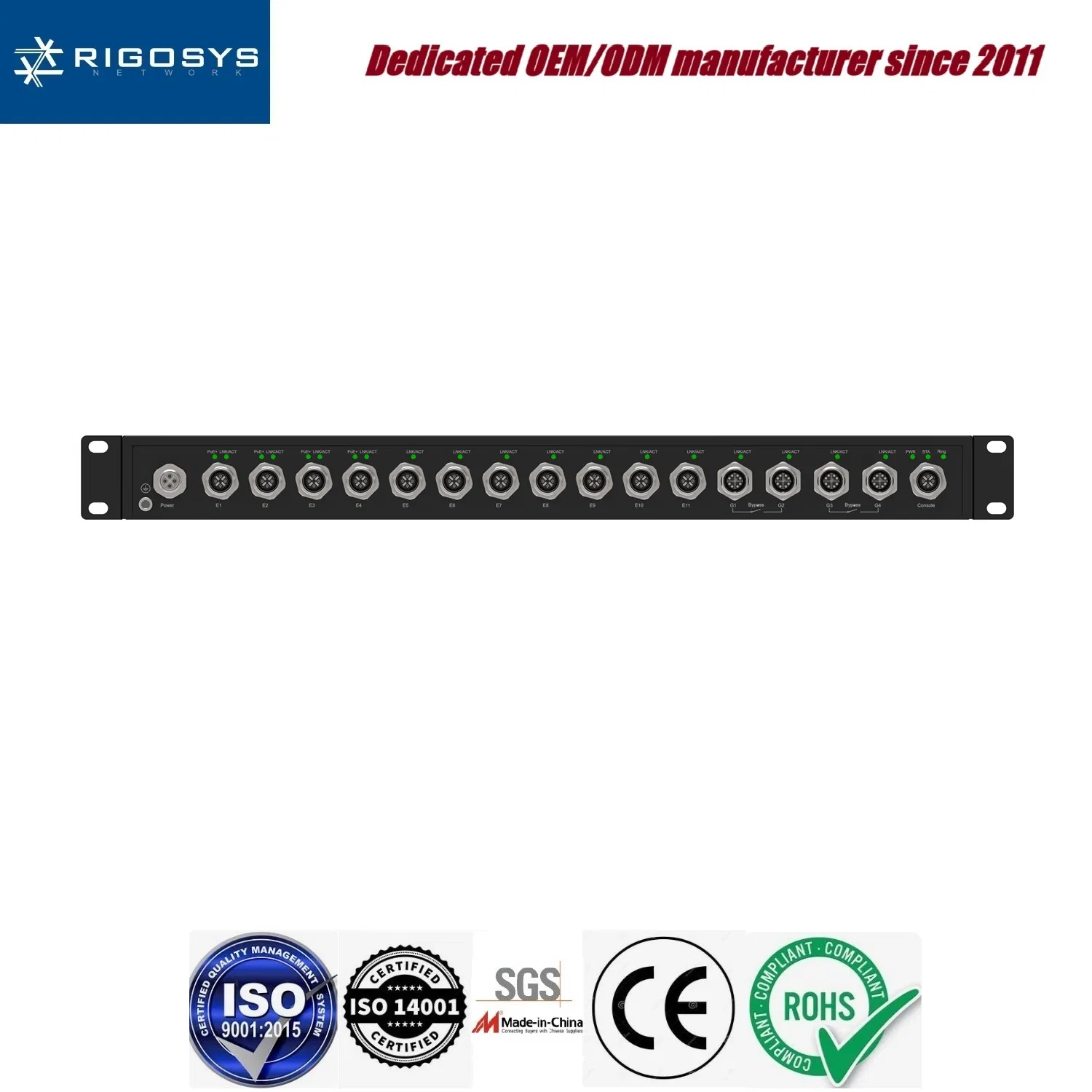

Port Description	Industrial managed switch, 11M12 100M ports (4 PoE), 4M12 Gigabit ports (Bypass), 110VDC (88V~160VDC).
Power Input	Low voltage DC: 110V single power, range 88-160VDC.
Power Consumption	No load: ≤13W; Full load: ≤17W (non-POE), ≤140W (POE).
Switching Performance
Standards	IEEE 802.3/u/z/ab/af/at/x/ad/D/p/Q/w/s/AB.
MAC Table / Buffer	8K MAC address table, 9.6 KB Jumbo Frames.
Switching Capacity	Backplane bandwidth: 56Gbps; Delay: <10μs.
Mechanical & Environmental

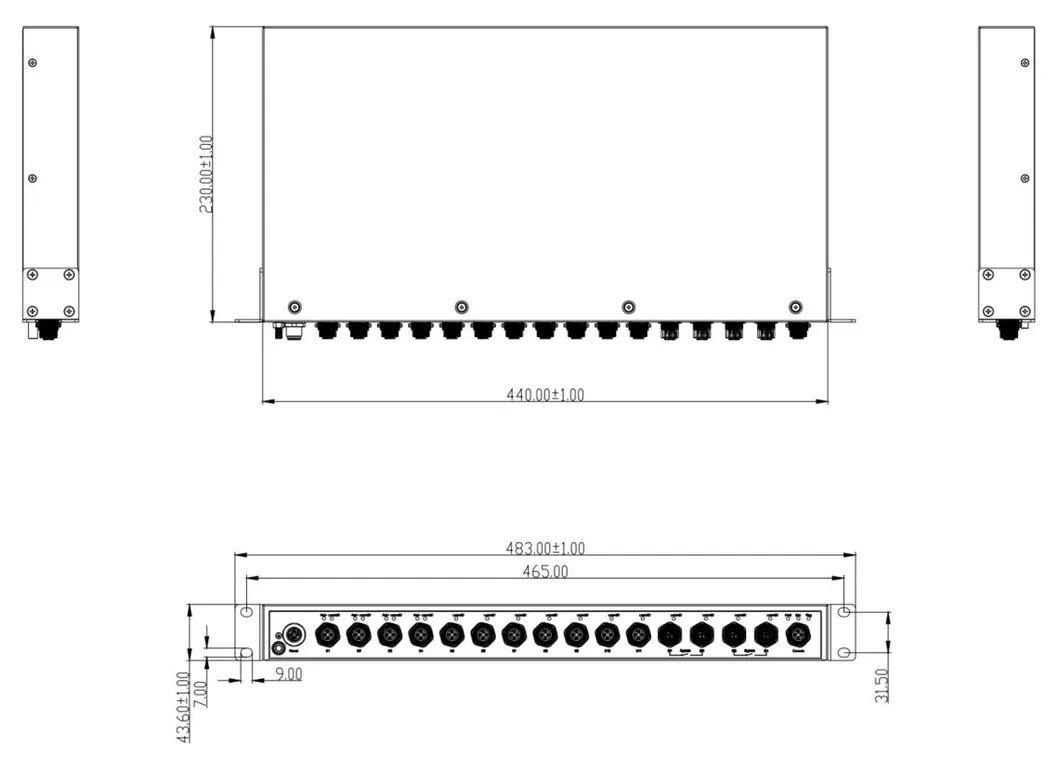

Dimensions	440(W) x 44.4(H) x 230(D) mm
Protection	IP40 Metal Shell, Fanless design.
Environment	Operating: -40~75ºC; Storage: -40~85ºC; Humidity: 5%~95% (non-condensing).
