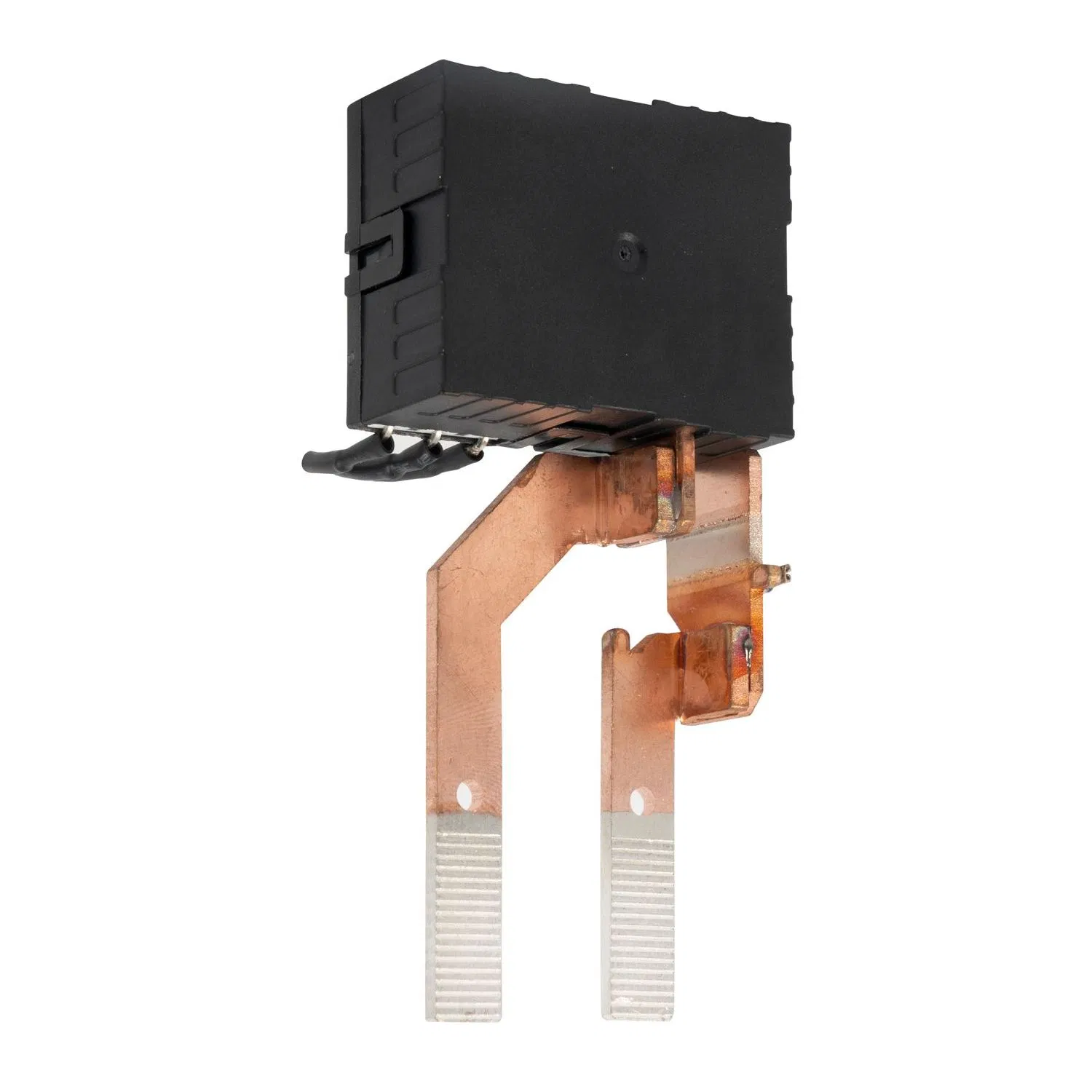

100A Switching Current 250VAC Single Phase Latching Relay

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
NT-131B
Electricity Type
AC
Load
High Power Relay
Protective Characteristics
Enclosed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Type
Electric Parameter Relay
OEM/ODM
Accepted
Industry
Electronics
Certificate
ISO9001
Production Capacity
5,000,000 PCS Per Year
HS Code
902890
P

Product Photos

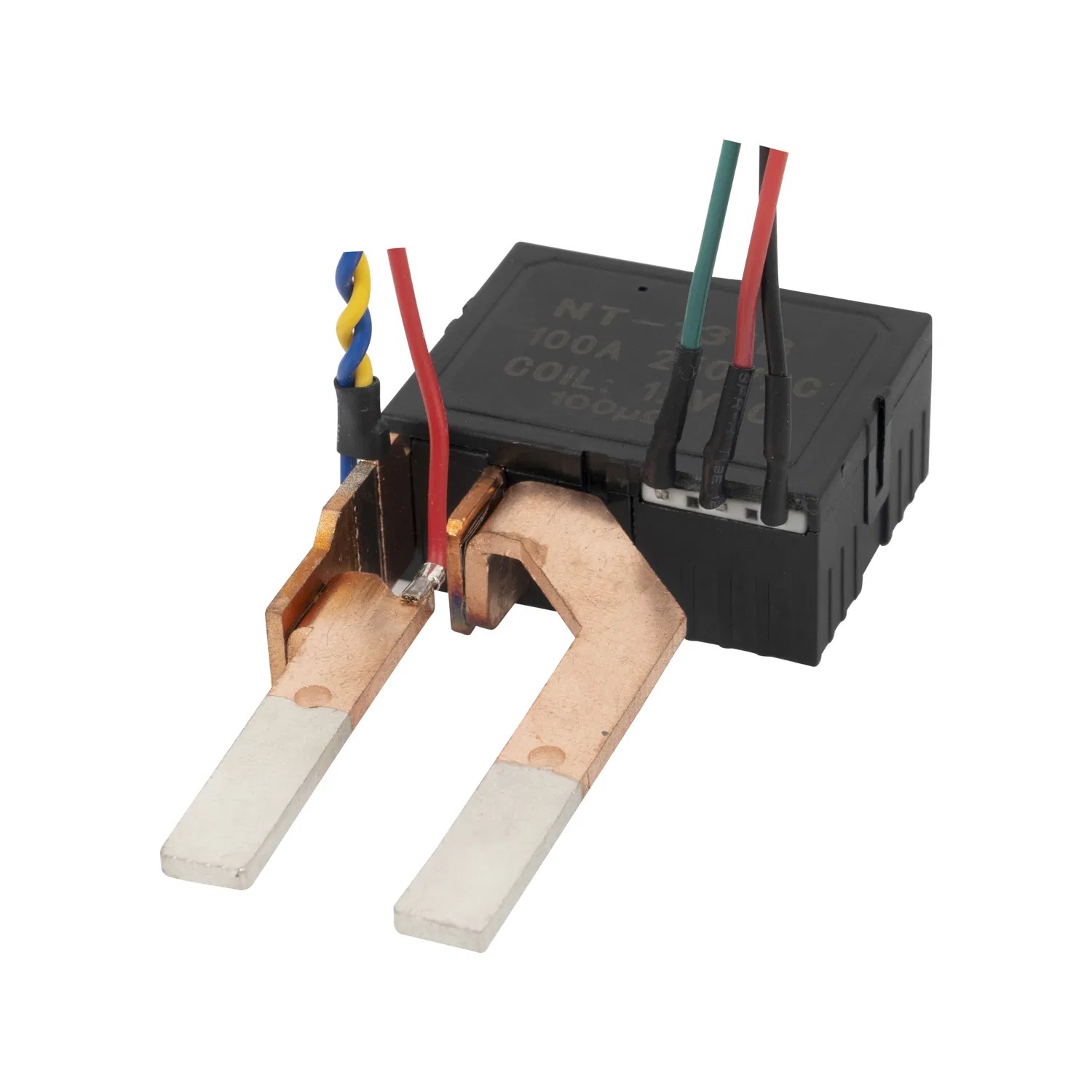

Single Phase Latching Relay View 1

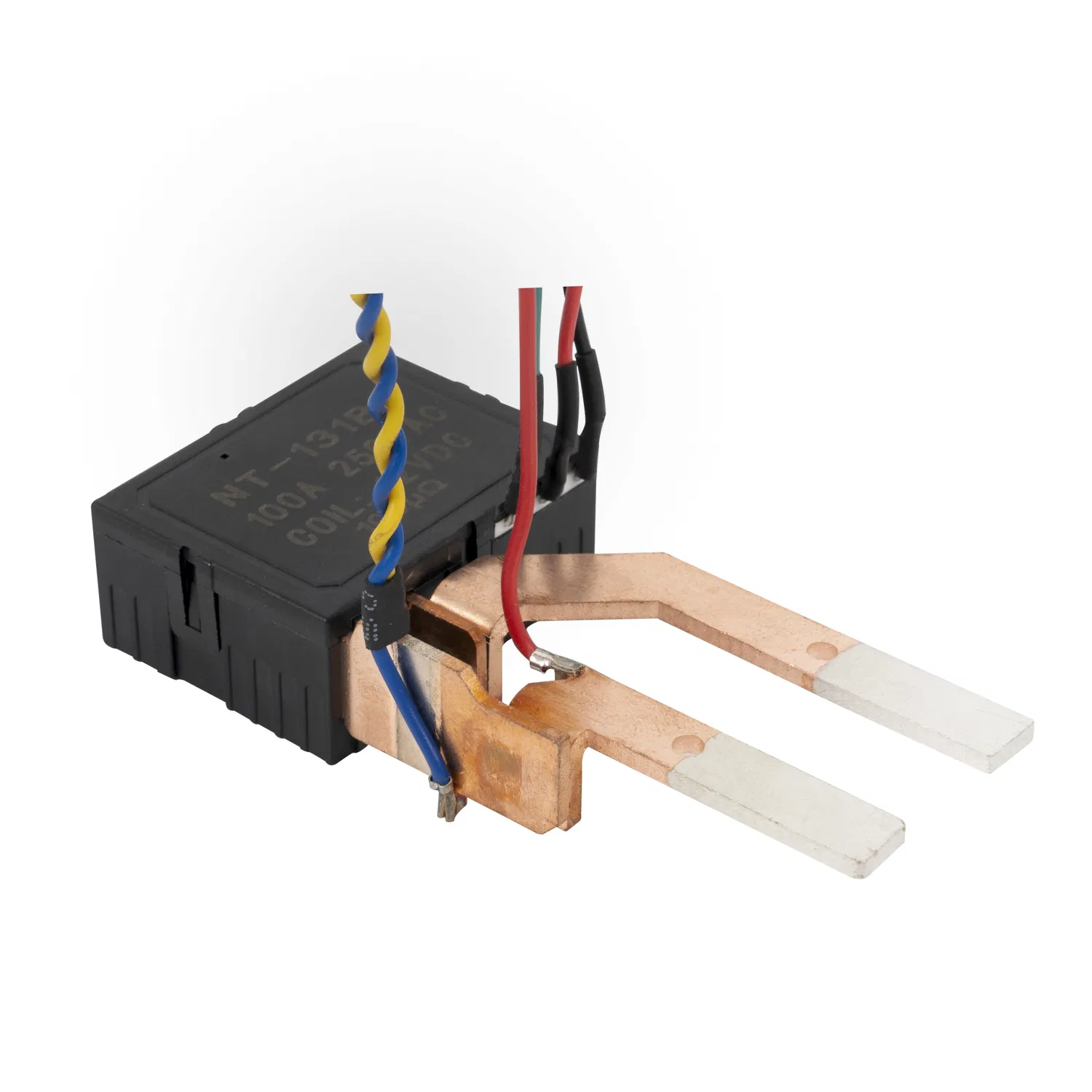

Single Phase Latching Relay View 2

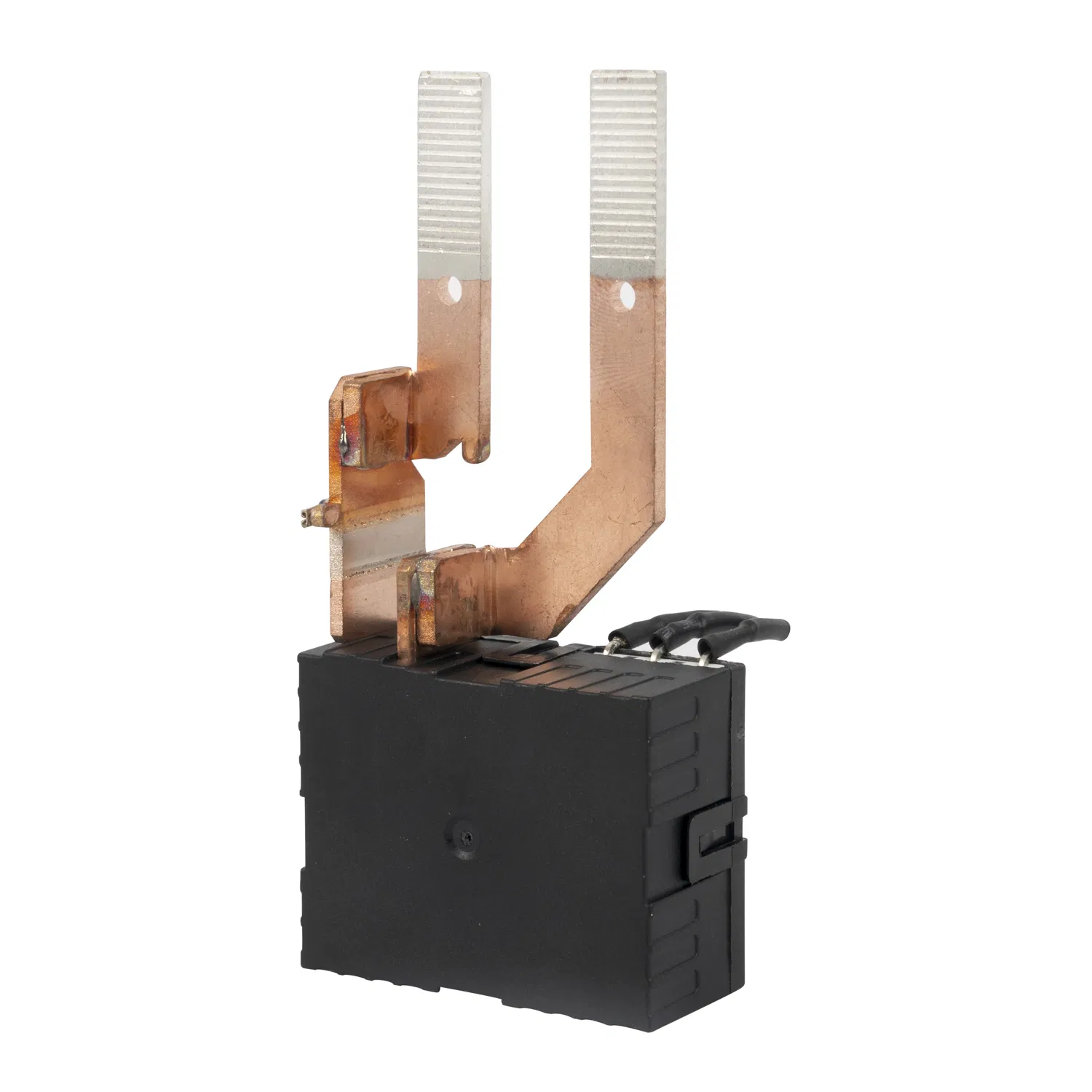

Single Phase Latching Relay View 3
S

Technical Parameters

Contact Specification
Contact Form1B
Rated Load (Resistive)100A 250VAC
Max. Switching Voltage250VAC
Max. Switching Current100A
Characteristics
Operate TimeMax. 30ms
Release TimeMax. 30ms
Insulation Resistance (500VDC)1000MΩ
Dielectric Strength between Contact & Coil4000VAC
Dielectric Strength of Contact Opening2000VAC
Mechanical Service Life1x105 OPS
Electrical Service Life1x104 OPS
Coil Specification
Voltage Double Coil Rated Coil Voltage Operating VDC Pulse Duration
12V 48 (±10%Ω) 12 ≤8.4 ≥50
A

Our Advantages

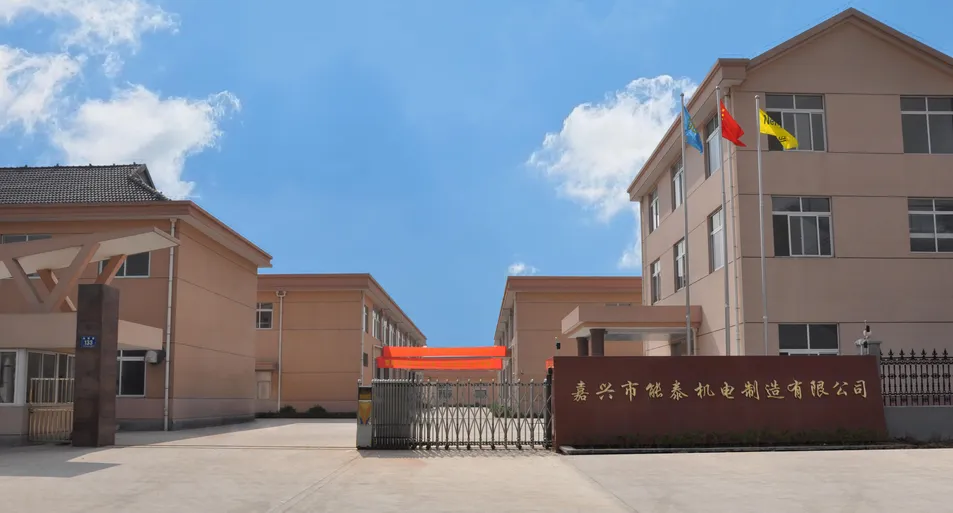

Manufacturing Excellence
  • National High-tech Enterprise certification.
  • 20+ years of experience in the Shunt area with a senior design team for modification suggestions.
  • 100% QC quality inspection before delivery to ensure performance.
  • 24 Hours Online Service, quick quotations, and fast global delivery.
F

Frequently Asked Questions

Are you a manufacturer or a trade company?
We are the manufacturer and also have our own trade company. We have the ability to sell our products to buyers all over the world.
How can I get product & price information?
Please send us an inquiry message; we will contact you as soon as we receive your request.
What are the application fields of your products?
Our products are mainly used in smart meters, smart homes, load control, synchronous switches, leakage protection, and other electronics applications.
Can you provide customized products?
Yes, most of our products can be customized. You can send us your drawings or specific requirements, and our technicians will assist you in development.
What kind of price terms do you accept?
We accept various international terms including FOB, FCA, and EXW.
Can you offer samples? Do we need to pay sample fees?
We can offer several free samples for testing if there are no special requirements. However, the customer needs to undertake the shipping costs.
